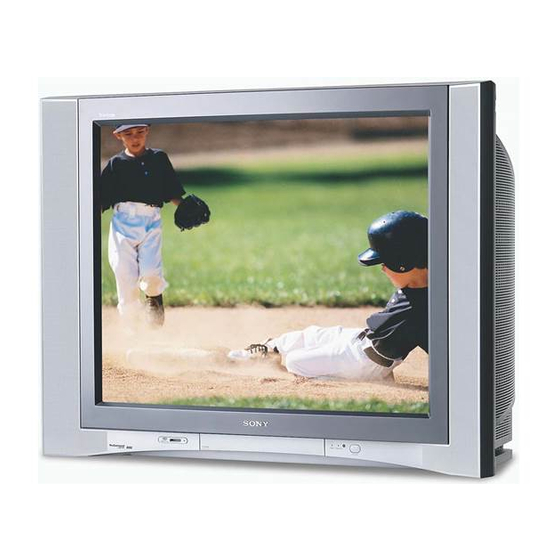

Sony KV-34HS510 - 34" CRT TV Service Manual

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:

SERVICE MANUAL

MODEL NAME
KV-32HS510
KV-32HS510
KV-34DRC510
KV-34DRC510
KV-34HS510
KV-34HS510
KV-36HS510
KV-36HS510
KV-36HS510
KV-38DRC510
KV-38DRC510
ORIGINAL MANUAL ISSUE DATE: 3/2003
:CORRECTED ITEM
REVISION DATE
3/2003
6/2003
9-965-937-02
REMOTE COMMANDER
RM-Y190
RM-Y190
RM-Y190
RM-Y190
RM-Y191
RM-Y191
RM-Y190
RM-Y190
RM-Y190
RM-Y190
RM-Y190
REVISION TYPE SUBJECT
No revisions or updates are applicable at this time.
Correction - 1 Replaced P. 220 - J9001 added to CX Board Parts List.
DA-4
DESTINATION CHASSIS NO.
US SCC-S66G-A
CANADA SCC-S70F-A
LATIN NORTH SCC-S71F-A
LATIN SOUTH SCC-S71G-A
US SCC-S66H-A
CANADA SCC-S70G-A
US SCC-S66J-A
CANADA SCC-S70H-A
HAWAII SCC-S69D-A
LATIN NORTH SCC-S71H-A
LATIN SOUTH SCC-S71J-A
TRINITRON COLOR TELEVISION
®
CHASSIS
