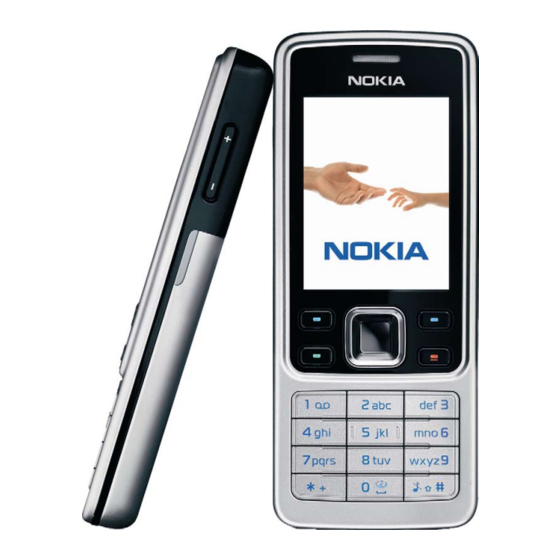

Nokia 6300 RM-217 Service Manual

CMO Operations & Logistics
Training and Vendor Development
Multimedia Creation & Support
Service Manual 6300 RM-217/ 6300b RM-222
WWW.PCBOOK.IR
Page
CONFIDENTIAL
SERVICE MANUAL
Level 1&2
RM-217
Transceiver characteristics:
Transceiver with BL-4c Li-Ion battery pack
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
1 (33)
RM-222
Band:
-RM-217: Tri-band EDGE phone for EGSM 900/1800/1900MHz
-RM-222: Tri-band EDGE phone for EGSM 850/1800/1900MHz
Camera: 2.0 Megapixel, 8x digital zoom
Display: 5.08cm (2inch) QVGA display with 16.7M true colors,
resolution 240 x 320 pixel
Operating System: Series 40
Bluetooth
FM stereo radio
Memory card: microSD
Connector: mini USB Connector
Talk time Standby
up to 3.5h up to 14.5days
Environmental characteristics:
• Lead-free soldered
Approved 4.0
MGR
12.Sept.2007
Note
Depends on network
parameters
