- Page 1 Tesira ® TEC-1s & TEC-1i Operation/Installation Manual October 2012 Biamp Systems, 9300 SW Gemini Drive, Beaverton, Oregon 97008 U.S.A. (503) 641-7287 www.biamp.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TESIRA ETHERNET CONTROL (TEC-1) FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 3: Tesira Ethernet Control (Tec-1) Features

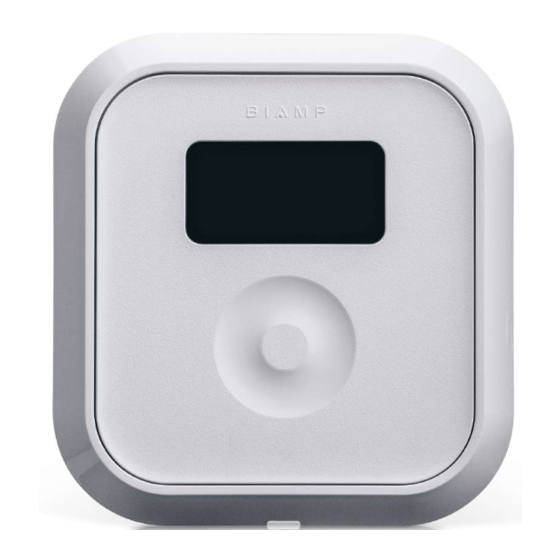

TESIRA ETHERNET CONTROL (TEC-1) TEC-1 Tesira Ethernet Control is a remote control for Tesira systems. It offers a simple, intuitive interface for end users and can be installed and configured to fit the unique needs of a particular application. The device connects via standard Ethernet cabling and is powered over Ethernet, eliminating the need for custom cabling and local power sources. -
Page 4: Front Panel
Latch Setup and Use The Tesira software provides an intuitive interface for setup and programming of the TEC-1. The information supplied by this manual relates to physical connections and device setup. For more details on software setup, please consult the Tesira Help File. -
Page 5: Back Panel
(IDC)—are provided for connecting to the network. Only one connector may be used. The RJ45 and IDC utilize unshielded twisted pair (UTP) wiring to connect to a Tesira system. This connection is made to the Ethernet port of a Tesira unit, either directly (single station) or via a network switch, and carries control data over Ethernet. -
Page 6: Set Up
TEC-1 SET UP Device Setup Mode The TEC-1 can be configured without connecting to a functional Tesira network. To enter setup mode, connect the TEC-1 to a PoE source and place the jumper or any metal object across the locksmith pins. -
Page 7: Edit Device Id
The default Device ID is “TEC-1ID 01”. The Device ID must match that of a corresponding block in the Tesira design. More than one unit may be identified with the same design block (same ID). Device IDs may also be assigned via Device Maintenance in the Tesira software. -
Page 8: Edit Unlock Code
During normal operation, holding down the Select button for five sec- onds will lock the unit, and the user will be prompted for the Lock Code before obtaining access. Lock Codes may also be assigned via Device Maintenance in the Tesira software. Edit Display Brightness To change the brightness of the OLED panel, scroll to the Display Brightness icon and press the Select button. -
Page 9: View Device Information
This is non-editable information. The Serial Number is helpful in identifying physical units/locations when naming them via Device Maintenance in the Tesira software. The IP address information is useful only when TEC-1 receives an IP address automatically to indicate what IP address it received. Use the scroll wheel to navigate through the list of information. -
Page 10: Installation
TEC-1s INSTALLATION Surface Mount Installation The TEC-1s surface mounts to most walls and has a wide variety of mounting holes that accommodate standard US and international back boxes. 84mm 60mm 84mm 3.3" 2.36" 3.3" USA, Japan, Australia Italy including Germany, Sweden, UK, Netherlands Use a screw driver or other suitable tool to engage the latch at the bottom of the TEC-1s to detach the back enclosure. -
Page 11: Tec-1I Flush Mount Installation
The TEC-1i may be flush mounted using the retrofit plate (provided with the product) or a Raco 254 box ® (purchased from an electrical distributor). To install the TEC-1i, a hole must be cut in the wall to accommodate the Raco 254 box or to use the retrofit plate. See the figures below. 11.75cm 4 5/8″... - Page 12 Once the trim ring has been fastened to the retrofit plate or the back-box, guide the TEC-1i front plate at an angle into the top of the trim ring to seat the tabs on the top of the front plate.
-
Page 13: Installation
IDC wiring scheme Note the appropriate bend radius requirements for category cables as shown in the figure below. Software support in Tesira configuration software Version 1.1 or later provides user programming of all remote functions, network setup, device naming, and device maintenance. -
Page 14: Wiring
330’ (100m) Ethernet cable length can be extended with standard PoE network technology Devices per system: Remote Ethernet Devices (including NPS-1) per system Remote Ethernet Devices per Tesira unit Control wiring topology: Standard Ethernet network wiring Control programming: Each control configured for specific operation by the system design software... -
Page 15: Warranty
WARRANTY BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL 1. Biamp Systems warrants to the original purchaser of new products that the product will be free from defects in material and workmanship for a period of 5 YEARS from the date of purchase from an authorized Biamp Systems dealer, subject to the terms and conditions set forth below. -
Page 16: Fcc Compliance
FCC COMPLIANCE FCC NOTICE - CLASS B DIGITAL DEVICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in either a residential or commercial installation. -
Page 17: Ec Declaration
Biamp Systems Corporation will invalidate this declaration. ® Brand Name: Tesira Product Description: Remote Audio Controls for Networked Audio DSP Platform. Models: TEC-1i, TEC-1s Applicable EC Directives: Applicable Harmonized Standards: LVD Directive (2006/95/EC) Safety EN 60065:2002 IEC 60065:2001 ... -
Page 18: Eu Rohs Compliance
Declaration document may be obtained at www.biamp.com (This information is presented to comply with the requirements of Chinese law SJ/T11363-2006) 有害物质表 (Hazardous Substances Table) Biamp Systems Corporation 远程控制设备 (Remote Control Device) Tesira TEC-1i, TEC-1s 有毒有害物质或元素 (Substances) Cr+6 PBDE 部件名称 (Part Name) 铅...
