- Page 1 OWNER’S PLUG & PLAY MANUAL ™ ™ MUSE EMBRACE ™ ELUSION...
-
Page 2: Serial Number

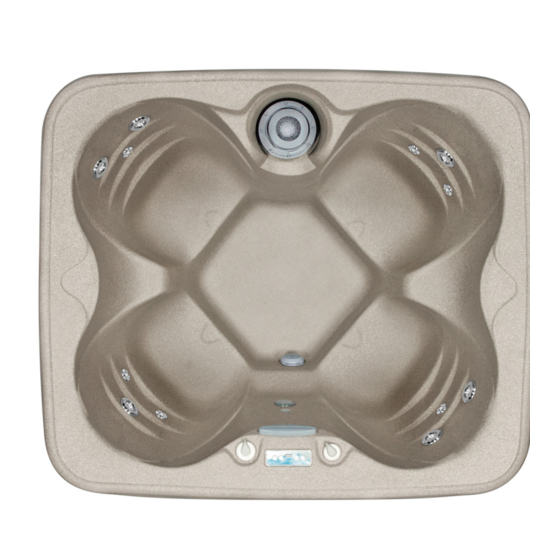

SPA DIMENSIONS & WEIGHT Model Spa Seating Length Width Height Dry Weight Elusion™ 5 person 75" 75" 33" 300 lbs. Muse™ 4 person 70" 61" 32" 230 lbs. Embrace™ 3 person 72" 72" 31" 295 lbs. CAUTION DO NOT OPERATE SPA BEFORE READING THIS MANUAL Failure to read this manual and follow its instructions may result in unsafe operation and or permanent damage to your portable spa. -
Page 3: Table Of Contents
TABLE OF CONTENTS TITLE PAGE SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS ............................1 IMPORTANT SPA INSTRUCTIONS ............................4 INSTALLATION PLANNING A LOCATION FOR YOUR SPA ..........................5 PLACING THE SPA ..................................6 EQUIPMENT ACCESS EQUIPMENT ACCESS PANEL ..............................7 ELECTRICAL REQUIREMENTS ELECTRICAL REQUIREMENT ..............................8 CONFIGURING SYSTEM ................................9 ELECTRICAL WIRING DIAGRAM FOR 220V USE ........................10 CONTROL PANEL OPERATION TEMPERATURE ADJUSTMENT (80°F-104°F)........................11... -
Page 4: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS AVOIDING THE RISK TO CHILDREN DANGER: • RISK OF CHILD DROWNING. Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children cannot use a spa unless they are supervised at all times. - Page 5 SAFETY INFORMATION 110 VOLT, CORD-CONNECTED MODELS: • The GFCI is located at the end of the power cord. Before each use, with the unit operating, push the TEST button. The unit should stop operating and the GFCI power indicator will go out.
- Page 6 SAFETY INFORMATION DON’T: • Use the spa with the equipment compartment door removed. • Place electrical appliances within 5 feet (1.5m) of the spa. • Use an extension cord to connect the spa to its power source. The cord may not be properly grounded and the connection is a shock hazard.
-
Page 7: Important Spa Instructions
SAFETY INFORMATION AVOIDING THE RISK OF HYPERTHERMIA Prolonged immersion in hot water can result in HYPERTHERMIA, a dangerous condition which occurs when the internal temperature of the body reaches a level above normal (98.6°F, 37ºC). The symptoms of hyperthermia include unawareness of impending hazard, failure to perceive heat, failure to recognize the need to exit the spa, physical inability to exit the spa, fetal damage in pregnant women, and unconsciousness resulting in a danger of drowning. -
Page 8: Installation
INSTALLATION PLANNING A LOCATION FOR YOUR SPA Consider these things when determining where to place your spa. SAFETY FIRST: Make sure your spa is positioned so access to the equipment compartment and side panels will not be blocked. Be certain your installation will meet all city and local safety codes and requirements. -
Page 9: Placing The Spa
INSTALLATION BE AWARE: Damage caused by inadequate or improper foundation support is not covered by the spa warranty. It is the sole responsibility of the spa owner to provide a proper foundation for the spa. Make sure the foundation where the spa is placed drains water away from the spa. Proper drainage will keep components dry from rain and wet weather. -
Page 10: Equipment Access
EQUIPMENT ACCESS EQUIPMENT ACCESS PANEL Topside Control Panel Screw Equipment Access Panel Door Drain Hose Electrical Recess To access the equipment compartment: • Remove 4 screws from Equipment Access Panel Door then remove door. Equipment Compartment... -
Page 11: Electrical Requirements
ELECTRICAL REQUIREMENTS ELECTRICAL REQUIREMENT DO NOT POWER THE SPA WITHOUT FIRST FILLING WITH WATER! DANGER – RISK OF ELECTRIC SHOCK Installations that do not conform to the following procedures and requirements may expose users to electric shock. Non-conforming installations will not be covered under warranty. If installed in the United States, the electrical wiring of this spa must meet the requirements of the National Electric Code (NEC) and any applicable state or local codes. -
Page 12: Configuring System
ELECTRICAL REQUIREMENTS CONFIGURING SYSTEM SELECTING THE VOLTAGE FOR YOUR SPA Your spa is designed to operate at either 110V 15 amp or 220V, which requires a dedicated 220 volt 40 amp power supply. When the spa is setup for 110V, the heater will provide approximately 1000 watts of heat only when the pump is operating in LOW speed and the thermostat is calling for heat (NOTE: The heater does not operate when the pump is on high speed). -
Page 13: Electrical Wiring Diagram For 220V Use
ELECTRICAL REQUIREMENTS ELECTRICAL WIRING DIAGRAM FOR 220V USE It is recommended that a licensed electrician install the power to your spa in accordance with the National Electric Code and/or any local electrical codes in effect at the time of installation. Power supply installation must include a properly rated GFCI circuit breaker. -
Page 14: Control Panel Operation
CONTROL PANEL OPERATION INITIAL START-UP - When the spa is first powered up it will go into priming mode, indicated by Pr. The priming mode will last for less than 5 minutes and then the spa will begin to heat and maintain the water temperature when in Standard Mode. -
Page 15: Preset Filter Cycles
CONTROL PANEL OPERATION STANDARD MODE: Is programmed to maintain the desired temperature. Note: The last measured spa temperature displayed is current only when the pump has been running for at least 2 minutes. St will be display momentarily only when dip switch 7 is OFF. ECONOMY MODE: Heats the spa to the set temperature only during filter cycles. -
Page 16: Diagnostic Lcd Message
CONTROL PANEL OPERATION DIAGNOSTIC LCD MESSAGE Message Meaning Action Required No message on display. The control panel will be disabled until power Power has been cut off to the spa. returns. Spa settings will be preserved until next power up. Temperature unknown. -
Page 17: Component Operation
COMPONENT OPERATION SPA COMPONENT OPERATION AIR CONTROL VALVE The air control valve serves to regulate the amount of air mixed with the water when the jets are operational. Rotate all the air control valves counterclockwise and observe the increased jet action. -
Page 18: Fill Up And Start-Up Instructions
FILL UP AND START-UP INSTRUCTIONS The following procedures should be followed on initial startup and whenever the spa is drained for routine maintenance. FILLING THE SPA WITH WATER 1. Clear all the debris from your spa. 2. Be sure to open all jets to allow as much air as possible to escape from the plumbing during the filling process. -
Page 19: Adding Start-Up Chemicals
ADDING START-UP CHEMICALS WATER CHEMISTRY GUIDELINES The following step-by-step instructions are a recommended guideline for balancing water chemistry. If unsure about any step in the process, please contact a Customer Care Associate at (888) 961-7727 or by email at ahsservice@watkinsmfg.com. Initially, it is advisable to identify what minerals (e.g. -
Page 20: Spa Maintenance
SPA MAINTENANCE FILTER CARTRIDGE MAINTENANCE Every two weeks, the filter cartridge should be cleaned to remove the objects and particles that have lodged in the cartridge pleats. Using household water pressure and a garden hose with a pressurized nozzle, push water from inside to outside of the pleats, forcing all the trapped particles out. -
Page 21: Surface Care
SPA MAINTENANCE SURFACE CARE Do not use solvents or abrasive cleaners to clean the spa. Typically, a mild detergent and water will resolve cleaning issues. COVER CARE Please keep your cover free from dirt at all times. Use a cover cleaner or a warm mild soapy water to clean the surface. -
Page 22: Draining Or Winterizing
DRAINING OR WINTERIZING Every three to six months, depending upon the water condition, you need to renew your water. CAUTION: READ THIS BEFORE DRAINING YOUR SPA • To prevent damage to the spa’s components, TURN OFF SUBPANEL BREAKER BEFORE DRAINING. Do not power back up until your spa has been refilled with water. • There are certain precautions to keep in mind when draining your spa. -
Page 23: Troubleshooting Procedures
TROUBLESHOOTING PROCEDURES In the event the spa is not working the way it should, please first review all the installation and operating instructions in this manual and check the message on the panel display. If you are still not satisfied it is working properly, please follow the appropriate troubleshooting instructions. CAUTION! WARNING! SHOCK HAZARD! No User Serviceable Parts. -
Page 24: Replacement Parts
REPLACEMENT PARTS REPLACEMENT SPA PARTS PART NUMBER DESCRIPTION PLE 5CH-45 SPA FILTER – 50sq. ft. Filter MEI 2399B SPA FILTER – 25sq. ft. Filter (ELUSION ONLY) BAL 55340 EQUIPMMENT PACK BAL 54130 4 BUTTON TOPSIDE CONTROL PANEL BAL 30637 TEMP SENSOR WAT 519-2087 ROUND FILTER WEIR WAT 519-2097... -
Page 25: Limited Warranty - Fantasy Spas
LIMITED WARRANTY - FANTASY SPAS Manufactured by Watkins Manufacturing Corporation, Vista, CA. RANTY Five–Year Limited Structure Warranty Watkins warrants the structure of the hot tub, which is defined as any rotationally molded, polyethylene internal support structures connecting the unibody shell, floor and the external coping to itself, for a period of five years from the date of purchase. This limited structural warranty specifically excludes any portion of the hot tub that is not rotationally molded as part of the unibody shell such as synthetic wood skirting, jets, doors, covers, etc. - Page 26 NOTES:...
- Page 28 PART # 303343 REV. B (4/12)
