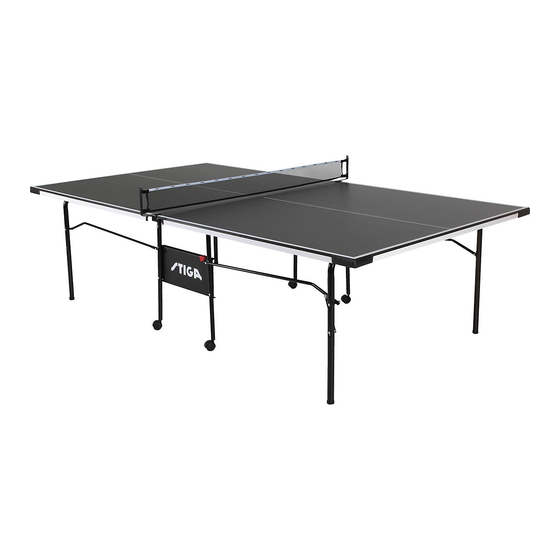

Stiga Play The Best T8165 Owner's Manual
  1. Manuals
  2. Brands
  3. Stiga Manuals
  4. Fitness Equipment
  5. Play The Best T8165
  6. Owner's manual

Stiga Play The Best T8165 Owner's Manual

Table tennis table
Hide thumbs

Advertisement

Quick Links

Download this manual
O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. To make assembly easier, use the Hardware Identifier on page 9 to identify and sort all
fasteners. Check all cartons for kits. All hardware may not be located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting holes
may not align and parts may not easily fit together. Leave locknuts slightly loose until you are instructed to
tighten them.
5. Tools required for assembly:
wrench may be substituted for the wrenches).
Please Do Not Return This Product To The Store!
Contact Escalade
Phone:
1-866-873-3528
Fax:
1-866-873-3533
E-mail:
tabletennis@escaladesports.com
Mailing Address (correspondence only):
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
Phillips Screwdriver, Two 7/16 Wrenches, One 3/8 Wrench (an adjustable
Sports customer service department at:
®
SPORTS PRODUCT INFORMATION
®
Toll – Free !
Toll – Free !
www.escaladesports.com
TECHNICAL ASSISTANCE
FREQUENTLY ASKED QUESTIONS
MODEL NOS.
T8135,
T8135, COMPETITION
T8135,
T8135,
T8135,
T8165,
T8165, AVENGER
T8165,
T8165,
T8165,
T8157,
T8157,
T8157, ACCLAIM
T8157,
T8157,
TABLE TENNIS TABLE
2L-6795-00

Advertisement

loading
Need help?

Need help?

Do you have a question about the Play The Best T8165 and is the answer not in the manual?

Questions and answers

Related Manuals for Stiga Play The Best T8165

Summary of Contents for Stiga Play The Best T8165

  • Page 1 MODEL NOS. T8135, T8135, T8135, COMPETITION T8135, T8135, T8165, T8165, T8165, AVENGER T8165, T8165, T8157, T8157, T8157, T8157, T8157, ACCLAIM TABLE TENNIS TABLE O W N E R ' S M A N U A L 1. Read this manual carefully before starting assembly. Read each step completely before beginning each step.
  • Page 2 Figure 1 1. Lay table top #1 painted side down, on a smooth, flat surface. Use the shipping container to protect the painted surface of the table top. 2. Assemble the two “L” tubes and the center tubes that make up the “U” Support and the “U” Leg. Align on Table Top as shown in Figure 1.
  • Page 3 Lay out rails #25 and 26, as shown in Figure 3, around edges of table top. Line up holes in rails with pilot holes in top and secure using eighteen screws #20. See Figure 3. Figure 3 Lay Corner Caps #22 on table as shown in Figure 4. If Corner Cap sticks above table top surface of table, flip over so shorter distance is against edge.
  • Page 4 10. Attach end of linkages #4 with two holes to INSIDE of U-leg #2 as shown in Figure 6. Secure through end hole with screws Figure 6 #23, locknuts #15 and plastic spacers #31. Tighten hardware snug enough to keep table stable but do not overtighten. Tubes must pivot freely.
  • Page 5 18. Repeat steps 1 through 12 on second table half. 19. Gently tap caster sockets #12 into U-support #7 on second table half until flange on sockets touches the edge of the tube. DO NOT HIT CASTER SOCKETS TOO HARD WITH A HAMMER. Cast- Figure 9 ers could break if hit too hard.
  • Page 6 Figure 10 22. Make sure the legs on the first table top half (the half with the name panel #5) are open. With one person on each side of the table, lift and set table half on its legs. Place table against a wall as shown above to help stabilize table top half while second half is being attached. Be sure there is enough room to connect second half.
  • Page 7 OPENING AND CLOSING INSTRUCTIONS READ OPERATING INSTRUCTIONS CAREFULLY BEFORE OPERATING TABLE! DO NOT ALLOW CHILDREN TO OPEN TABLE! DO NOT CLIMB, STAND OR JUMP ON TABLE! SERIOUS OR FATAL INJURY MAY RESULT! THIS IS NOT A TOY! TABLE IS CAUTION: TO BE OPENED OR CLOSED BY ADULTS ONLY! FAILURE TO COMPLY WITH OPENING AND CLOSING INSTRUCTIONS COULD RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.
  • Page 8 90 DAY LIMITED WARRANTY This consumer warranty extends to the original consumer purchase of any ESCALADE SPORTS Product ® (hereinafter referred as the "Product"). WARRANTY DURATION: This Product is warranted to the original consumer purchase of a period of ninety (90) days from the original purchase. WARRANTY COVERAGE: ESCALADE SPORTS warrants to the original Consumer Purchaser that any Product of its manufacture is free from defects in material and workmanship when used for the intended purpose under normal use and conditions.

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE You have purchased a quality product that will give you years of enjoyment. By following these simple maintenance steps, you will add to the life of your new table. THE TABLE TOP The top (playing surface) of your table is made of particle board. Like all products made of wood, it can be affected by atmospheric changes in both temperature and humidity.

  • Page 10: Product Parts List

    PRODUCT PARTS LIST Key # T8135 T8157 Description Qty. Key # T8135 T8157 Description Qty. T8165 T8165 701-1B 701-1B #10 Flatwasher 4A-6552-00 4A-6596-00 Table Top 701-141 701-141 #8-32 x 1¼ Sheet Metal Screw 8S-6610-00 8S-6610-00 U-leg 1B-6451-00 1B-6451-00 #8 x 7/16 Sheet Metal Screw...
