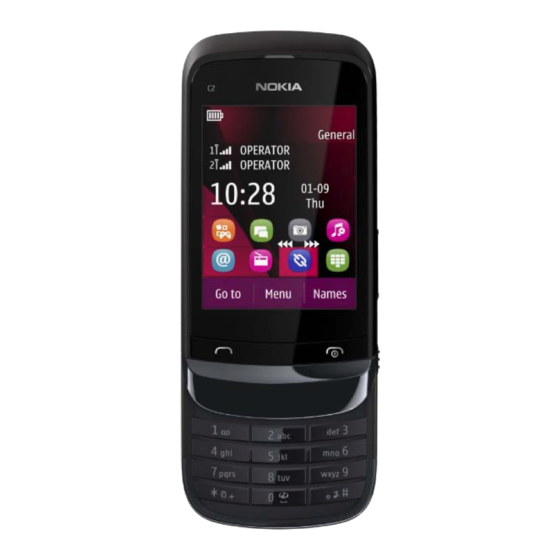

Nokia C2-02/C2-07
RM-692 / RM-693
1
SERVICE MANUAL
Level 1&2
Nokia C2-03/C2-08/C2-06
Conf idential | Copyright © 2011 Nokia | A ll rights reserved
Nokia C2-02/C2-07 (RM-692/RM-693)
Nokia C2-03/C2-06/C2-08 (RM-702)
RM-702
Transceiver characteristics
Band
RM-692/ RM-702: EGSM 900/1800
RM-693: EGSM 850/1900
Display
320x240 QVGA resistive touch display
Camera
2Mpix Camera
Operating System
Series 40
Connections:
Bluetooth
3.5mm Jack
Micro USB
Transceiver with BL-5C battery pack
Talk time
Standby
GSM:
GSM:
5.85 hours
723 hours (single SIM)
610 hours (dual SIM)
Note:
Talk times are dependent on network
parameters
and phone settings
L1L2 Service Manual
Version 1.0
Advertisement
Table of Contents
Related Manuals for Nokia C2-07
Summarization of Contents
Warnings and Cautions
General Warnings
Safety warnings regarding vehicle systems, explosive atmospheres, and medical device interference.
Service Cautions
Precautions for servicing, ESD protection, component handling, and proper reassembly.
Software Update Procedures
Flash Concept (Point of Sale)
Explains the process and necessary tools for software flashing.
