  • Page 1 NETWORKED CD PLAYER DN-C640 OPERATING INSTRUCTIONS...

  • Page 2: Fcc Information

    This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product. 3. NOTE This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4.
  • Page 4 CAUTION: To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user. VORSICHT: U m d i e s e s G e r ä...
  • Page 5 NOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L’UTILISATION / NOTE SULL’USO / NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA • Avoid high temperatures. Allow for sufficient heat dispersion when installed on a rack. •...

  • Page 6: Laser Product

    CAUTION • The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc. • No naked flame sources, such as lighted candles, should be placed on the apparatus. • Attention should be drawn to the environmental aspects of battery disposal. •...
  • Page 7 • Use compact discs that include the CD’s with special shapes (heart-shaped CD’s, octagonal CD’s etc.) cannot be played on this set. Attempting to do so may damage the set. Do not use such CD’s. • Benutzen Sie Compact Discs, die das Speziell geformte CD’s (herzförmige CDs, achteckige CDs, usw.) können auf dieser Anlage nicht abgespielt werden.
  • Page 8 • This unit can display text information on the display when playing CD text discs which contain text information in English category. The CD text disc includes the mark shown above. NOTE: • This unit can provide a text display of the following types of characters.

  • Page 9: Table Of Contents

    UTILITY MENU ...26 4. NETWORK FUNCTIONALITY AND OPERATION ...28 Network functionality and Operation ...28 How to hook up the DN-C640 to your network ...28 Setting up a Shared Folder on a Server or a Network Server ...29 5. CONTROL FEATURES ...30 WEB REMOTE ...30...

  • Page 10: General Information

    1. GENERAL INFORMATION FEATURES ■ Standard Functions of Professional CD Player Slot-In Disc Drive Reads and Displays CD TEXT & MP3 ID3 Tags Quick Track Search with Jog Wheel Cue to Music Balanced Audio Output with Trim 2 Sets of Unbalanced Audio Outputs (1 Fixed / 1 Variable level)

  • Page 11: Part Names And Functions

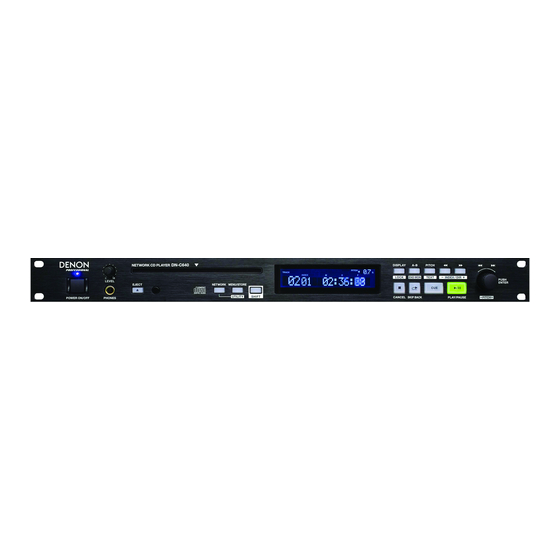

    PART NAMES AND FUNCTIONS (1) Front panel DN-C640 NETWORK CD PLAYER LEVEL EJECT POWER ON/OFF PHONES POWER ON/OFF switch and indicator • Press this to turn the Power ON or OFF. • The indicator lights when the power is turned on.
  • Page 12 1. GENERAL INFORMATION !4 !5 5 6 / – INDEX/DIR + button • These buttons are used to accurately change the positions where playback will start or operate as FF or FR when held down. • In shift mode, use this button to select the index (Audio CDs) or directory (music file discs).
  • Page 13 (2) Rear panel FIXED VARIABLE 1 GND 2 HOT(+) 3 COLD(-) LEVEL LEVEL ANALOG OUTPUT ANALOG (Balanced) OUTPUT • These are active balanced outputs using XLR type connections. The CD's or network's audio playback signals are output from these connectors. •...
  • Page 14 1. GENERAL INFORMATION (3) Display Specific Icons and Character displays inform you of the current operating status and menu items of the device. [Basic CD Operation] “TOTAL” illuminates to indicate that the time displayed is the TOTAL time of the track or file. “TOTAL”...
  • Page 15 (4) Remote control unit (RC-1061) POWER button Press this to turn the power on or off. PITCH +/– buttons Press these buttons to adjust the Pitch up(+) or down(-). PITCH ON/OFF button Press this to turn the pitch control function on or off. 0-9 buttons Press these to select the desired track in the stop mode.

  • Page 16: Vol+/- Buttons

    1. GENERAL INFORMATION VOL+/– buttons Press these to change the playback volume output through the unbalanced VARIABLE Output jacks. ENTER button Press this to confirm selections in the menus. PLAY/PAUSE button Press this to start playback or pause playback. CUE button Press this to return to the position at which playback started or the next track.

  • Page 17: Preparations

    2. PREPARATIONS INSTALLATION ■ Mounting in a rack • The DN-C640 is of 1U size, allowing it to be mounted in EIA standard 19-inch racks. When mounting the DN-C640 in a rack, use guide rails or shelf boards, etc., on the rack side to prevent weight from being applied to the front of the DN-C640.

  • Page 18: Connections

    • Connect the CD output jacks to the amplifier CD or AUX input jacks. • Connect one end of a straight-through RS-232 serial cable into Communication Port on the back of the DN-C640 and connect the other end into the “RS-232C” port on the back of the computer.

  • Page 19: Device Operation

    3. DEVICE OPERATION SUPPORTED AUDIO CD In addition to standard CD-DA discs, the DN-C640 can read several other CD-DA formats. Please refer to page 17 for detail of reading and operation of data discs. Compact Disc Digital Audio (CD-DA) Compact Disc TEXT (CD TEXT)

  • Page 20: Normal Cd Playback

    3. DEVICE OPERATION NORMAL CD PLAYBACK (1) Before Starting Playback 1. Press the POWER ON/OFF switch to turn on the power. DN-C640 NETWORK CD PLAYER LEVEL EJECT POWER ON/OFF PHONES 2. Load the disc you want to play. 3. Make sure the Preset Menu settings are set accordingly for the intended use.
  • Page 21 (7) Returning to the beginning of the current track during playback 1. Turn the jog wheel counterclockwise or press the ∞ button during playback. DISPLAY PITCH LOCK END MON TEXT - INDEX/DIR + CANCEL SKIP BACK • The pickup will return to the beginning of the current track and playback will continue when the Start mode is set to “Play”...

  • Page 22: Advanced Cd Playback

    3. DEVICE OPERATION ADVANCED CD PLAYBACK (1) Repeating playback of a desired interval (Single track repeat) 1. In the Preset menu, set the finish mode to “Stop”, “Next” or “Recue”. (See page 22) 2. Press the REPEAT button on the remote control unit. •...
  • Page 23 • Repeat steps 2 and 3 to program the tracks in the desired order. 4. Press the PROGRAM button to exit the program input mode. • “PGM” indicator lights, and the DN-C640 is ready to play your program. Editing the program 1. Press the RECALL button on the remote control unit while the “PXX”...

  • Page 24: Pitch Control

    END MONITOR is a feature that plays back the final seconds of the current track. If the Finish Mode is set to “Continuous” in the preset menu, the DN-C640 plays back the last track of the current disc. To use this feature, with the unit in SHIFT...

  • Page 25: Playing Audio Files

    PLAYING AUDIO FILES In addition to standard CD-DA discs, the DN-C640 can read audio files from many different types of Data discs. For a list of compatible compressed and uncompressed audio files, see following section: Audio File Format Specifications. ■ Supported data discs...
  • Page 26 (Track# 001) rrr002.wav (Track# 002) ■ Displays information When a data disc is inserted into the DN-C640, various kind of information are displayed on the 13-digit alphanumeric part of the display unit. When in play, pause, search, end mon. or cue state, the following information is displayed in order by pressing the DISPLAY/LOCK button.
  • Page 27 (1) Playing audio files on a disc 1. Load a disc containing audio files. • The display will change to “Loading.”. When the contents of the disc have been read, the total number of tracks will be displayed. 2. Turn the jog wheel to select a file you want to listen to. •...

  • Page 28: Preset Functions And Operations

    PRESET FUNCTIONS AND OPERATIONS (1) Changing the PRESETS [ Using the front panel ] 1. With the unit in stop mode, press the MENU/STORE button. DN-C640 NETWORK CD PLAYER LEVEL EJECT PHONES The last active preset item appears on the display.
  • Page 29 (2) Table of Preset Items and Default settings Display (Order) (Preset item) Finish Mode Stop /Next /Recue /Continuous Power On Play /Stop Start Mode Play /Stop /Cue Cue Mode Recue /Next Auto Cue Off /–48dB /–42dB /–36dB Fade In Off /0.5sec - 10.0sec (0.5second steps) Fade Out Off /0.5sec - 10.0sec (0.5second steps) Skip Back...
  • Page 30 –42dB –36dB NOTE: • If an audio signal isn’t detected within the maximum period of time (20 seconds) then the DN-C640 will most likely Cue to the beginning of index 01. Description Unit returns to stop mode after the track has played Unit advances to the next track and waits in Cue Mode Unit returns to the beginning of the current track and waits in Cue Mode.
  • Page 31 9. End monitor time (End Monitor) This feature allows you to set the amount of time at the end of the track that the DN-C640 will play when the END MON button is pressed on the unit or IR control while in standby.
  • Page 32 Finish mode setting is “Continuous” Set value On (default) 12. Fader start mode (Fader Start) This feature allows you to decide how the DN-C640 behaves when the Fader Start pins are short-circuited Set value Play Play-Pause (default) 13. Index tally (Index Tally) This feature allows you to select the processing of INDEX tally pin (17) of the parallel control terminal.
  • Page 33 16. Auto sleep mode (Auto Sleep) You can select the behavior that the servo functions will automatically turn off if no operation is performed for set-up time while in stop, pause or cue. When in the sleep mode, if the PLAY/PAUSE button is pressed, playback will be started from the beginning of the track in which the sleep mode was set.

  • Page 34: Utility Menu

    IP Address Displays the units IP address (2) Procedure for Upload Disc [ Using the front panel ] 1. While in stop and shift mode, press the MENU/STORE/ UTILITY button. DN-C640 CD PLAYER NETWORK MENU/STORE UTILITY SHIFT 2. Turn the jog wheel until “Upload Disc” appears in the display.
  • Page 35 3. Press the jog wheel. The Display switches to the track number flashing. 4. Turn the jog wheel until the track number you want to upload is flashing. 5. Press the jog wheel. “Executing” will be displayed until Upload Track is finished. Then “Completed” will be displayed.

  • Page 36: Network Functionality And Operation

    NOTE : • If you set the preset setting of “IP Address” to Auto, use utility menu to find the IP address of the DN-C640 that is assigned by a DHCP server automatically. • If the DN-C640 can not find a DHCP server, when the DN-C640 is turned power on, it might take time to finish initializing.

  • Page 37: Setting Up A Shared Folder On A Server Or A Network Server

    4. NETWORK FUNCTIONALITY AND OPERATION Setting up a Shared Folder on a Server or a Network Server The DN-C640 can read and play audio files in a shared folder of a server or a network server. 1. Create a shared folder on a server.

  • Page 38: Control Features

    The application “Web Remote” allows you to control the unit and configure settings from your computer. The DN-C640 supports common web browsing software applications. To connect to the DN-C640’s web remote, start up your web browser and specify the DN-C640’s IP address, for example, “http://192.168.0.1/” to open the web control screen.

  • Page 39: Track List

    CD-Text where the file name will appear in place of “track” + [track number]. e Status indicator: The status of the DN-C640 and the playback volume level are displayed in this area. 5. CONTROL FEATURES If the machine is in:...
  • Page 40 These allow you to download and upload a playlist for the DN-C640. button: Downloads the current playlist stored in the DN-C640 to the shared folder as file “xxxxx.xxx” button: Uploads a playlist stored in the shared folder named “xxxxx.xxx” to the DN-C640.

  • Page 41: General Settings Screen

    (4) General settings screen The General settings screen allows you to modify many of the playback features found in the Preset Menu of the device. The function of all of the settings are the same as found in the Preset Menu. See Page 21. !0 SAVE button, CANCEL button and DEFAULT buttons: button: Stores all changes made to items in this window.
  • Page 42 See page 20 about an operation of a preset menu. About detailed explanation of each network setting item, see below. !1 Machine Name text box: When in uploading audio files by an upload function, the DN-C640 upload audio files in a folder of this name under the shared folder.
  • Page 43 If any changes have been made to the network settings screen and need to be saved, press the SAVE and RESTART button. This will store the changes made and forces the DN-C640 to reboot. If the SAVE and RESTART button is pressed, a confirmation screen will appear.

  • Page 44: Rs-232C Control

    • The RS-232C host can control functions of the DN-C640 externally • The DN-C640 automatically transmits status data when status is changed. • The DN-C640 will respond to status requests by transmitting the associated status data RS-232C specifications: (1) Interface Condition •...
  • Page 45 (4) Table of Control command codes Code “@02000”+CR “@02001”+CR “@02002”+CR “@02003”+CR “@02004”+CR “@02005”+CR “@02006”+CR “@02007”+CR “@02008”+CR “@02009”+CR “@02011”+CR DISPLAY “@02012”+CR Power Standby “@020PW”+CR Power On “@02016”+CR Volume Up “@02017”+CR Volume Down “@02028ON”+CR RANDOM ON “@02028OF”+CR RANDOM OFF “@02029ON”+CR REPEAT ON “@02029OF”+CR REPEAT OFF Track Jump §...
  • Page 46 5. CONTROL FEATURES Code “@020KU”+CR “@020DJXXXXXXXXXXXX”+CR “@0FMST”+CR “@0FMNT”+CR “@0FMRC”+CR “@0FMCT”+CR “@0POPL”+CR “@0POST”+CR “@0SAPL”+CR “@0SACU”+CR “@0SAST”+CR “@0CURC”+CR “@0CUNT”+CR “@0AC00”+CR “@0AC48”+CR “@0AC42”+CR “@0AC36”+CR “@0FIXXX”+CR “@0FOXXX”+CR “@0SBXXX”+CR “@0EMXX”+CR “@0EDXX”+CR “@0NRXX”+CR “@0FDPL”+CR “@0FDPU”+CR “@0ITI2”+CR “@0ITI3”+CR “@0MOXX”+CR “@0PLXX”+CR “@0ASXXXX”+CR “@0ELXX”+CR “@0DOBC”+CR “@0DOCS”+CR “@0DFXX”+CR “@0MNXXXXXXXXXXXX”+CR “@0IPXXXXXXXXXXXX”+CR “@0SMXXXXXXXXXXXX”+CR “@0GWXXXXXXXXXXXX”+CR “@0DNXXXXXXXXXXXX”+CR...
  • Page 47 (5) Table of Status Request and Status information codes When a Status Request Command from the host is received by the DN-C640, the DN-C640 sends the Status Information to the host. When the DN-C640 changes status, the DN-C640 automatically sends Status Information to the host.
  • Page 48 5. CONTROL FEATURES Mode Request Code Finish Mode “@0?FM”+CR Power On “@0?PO”+CR Start Mode “@0?SA”+CR Cue Mode “@0?CU”+CR Auto Cue “@0?AC”+CR Fade In “@0?FI”+CR Fade Out “@0?FO”+CR Skip Back “@0?SB”+CR End Mon “@0?EM”+CR End Of Message “@0?ED”+CR Next Tr Reserve “@0?NR”+CR Fader Start “@0?FD”+CR...

  • Page 49: Gpio (Parallel) Control

    GPIO (Parallel) CONTROL Use this to control the DN-C640 with dry contact circuit connections. (1) Interface Condition • Applicable connector: 25-pin D-sub (male) • Connecting signal layout Pin No. Signal Name PLAY tally PLAY command PAUSE tally PAUSE command CUE tally...

  • Page 50: Remote Control Circuit

    5. CONTROL FEATURES (2) Remote control circuit • Remote control connections TRACK (–) TRACK (+) 1 SEARCH ¡ NOTE: • The rating of REMOTE connector pin 22 (TALLY POWER SUPPLY) is +5 VDC, 100 mA maximum. Avoid currents in excess of the rating, or it may cause a malfunction or a risk of fire. FADER SWITCH PAUSE INDEX2/INDEX3...

  • Page 51: Troubleshooting

    DN-C640 supports. • Ensure that you have selected the correct network type. • Check your network settings. • Check the network cable is correctly plugged in on both the DN-C640 and your network switch.

  • Page 52: Specifications

    7. SPECIFICATIONS ■ GENERAL Disc type : ■ AUDIO SECTION Audio channel : Frequency response : Dynamic range : Signal-to-noise Ratio : Channel separation : Total Harmonic Distortion : Analog output : Unbalanced output (RCA) : Variable range(VARIABLE) : Balanced output (XLR) : Variable range : Digital output : Unbalanced output (RCA) :...
  • Page 53 ■ DIMENSIONS NETWORK CD PLAYER DN-C640 LEVEL EJECT POWER ON/OFF PHONES ✽ For improvement purposes, specifications and design are subject to change without notice. 434mm (17.1”) 482.6mm (19.0”) DISPLAY PITCH LOCK END MON TEXT - INDEX/DIR + NETWORK MENU/STORE UTILITY...
