Bytecc HM21REPEATER Manual

INTRODUCTION:
This DisplayPort extender acts as a DisplayPort coupler to connect two DP cables to extend
the transmission range up to 65ft without degradation. Provide a cost-effective solution to
replace expensive DisplayPort extension cable over 30ft long.Support resolution up to
8K@60Hz, backward compatible with 5K, 4K and 1080P. Output vibrant video and authentic
audio for more real game experience and vivid data display. Downward compatible with
DisplayPort 1.2. Enjoy 8K Viewing Experience on the Big Screen Without Boundaries
Realistic gaming experience, sharing movies or watching an exciting sports events with your
family or friends.
Important note:
Graphics card and display must support display stream compression (DSC) to use HDR 8K@30 /60 Hz、
4K@120Hz and 2K@240Hz 。
SPECIFICATIONS:
● TYPE-C IN.................................................. DC-5V2A
● DP1.4 resolution........................................up to 8K / 60Hz
● Support video format.................................. 10 deep color
● Maximum bandwidth supported..................32.4Gbps
● Length of input cable..................................≤ 10m DP1.4 standard cable
● Length of output cable................................≤ 10m DP1.4 standard cable
● Operating temperature range..................... (- 15 to + 45 ℃)
● Operating humidity range........................... 5 to 90% RH (non condensing)

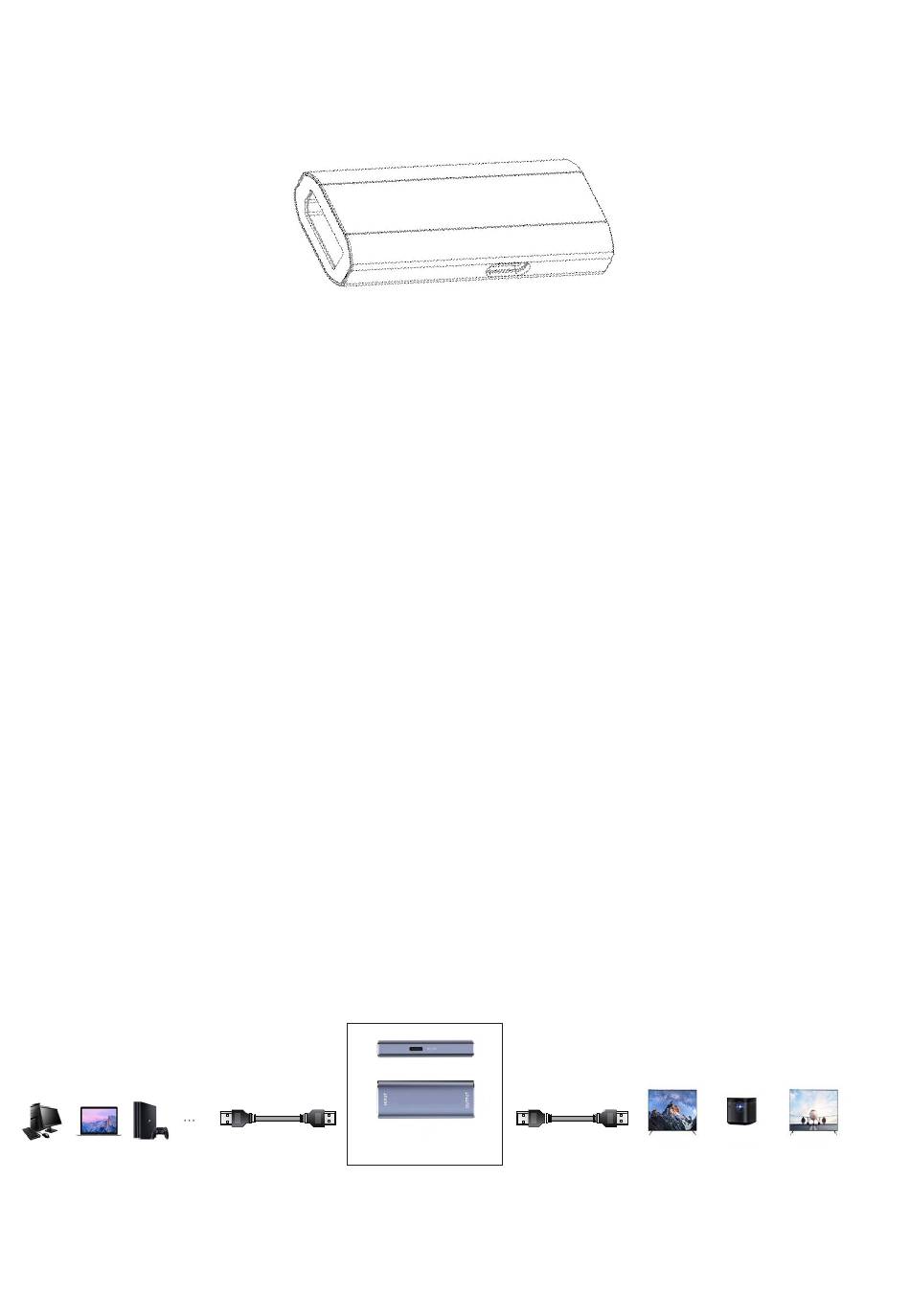

CONNECTION DIAGRAM:
Set top box / DVD
game console / computer
PACKAGE CONTENTS:
● 1x Main unit
● 1x User Manual
DisplayPort 1.4 REPEATER
DP1.4 Cable
8K@60HZ
DP1.4 Cable
DP1.4 Repeater
TV / projector / monitor...
