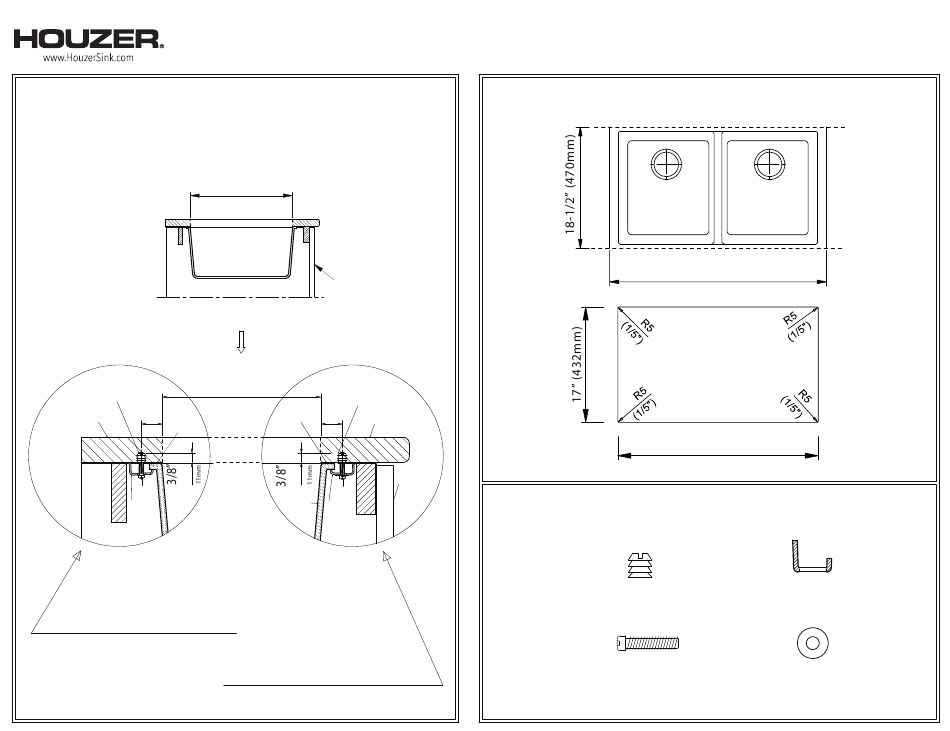

HOUZER MIDNITE Quartztone Series Installation Instructions

Undermount Installation - M-200U
Side section View
17" (432mm)
17" (432mm)
Anchorage axle box
1"
Counter top
Seal
25mm
Screw
Bracket
Part A
SIDE SECTION VIEW DETAILS
Fasten the 3 mounting brackets with
the screws
Kitchen door
Part A
Anchorage axle box
1"
Seal
Counter top
25mm
Kitchen door
Screw
Sink
Bracket
Fasten the 3 mounting brackets with
the screws
UNDERMOUNT WITH MOUNTING BRACKET AND SCREWS (Part A)
33" (838mm)
Cutout for undermount installation
30-1/8" (766mm)
Undermounting hardware
10 X
Anchorage axle box
10 X
Screw
10 X
Undermount bracket
10 X
Washer
