Barska DA12194 Manual

Spotter And Tripod Manual
A
B

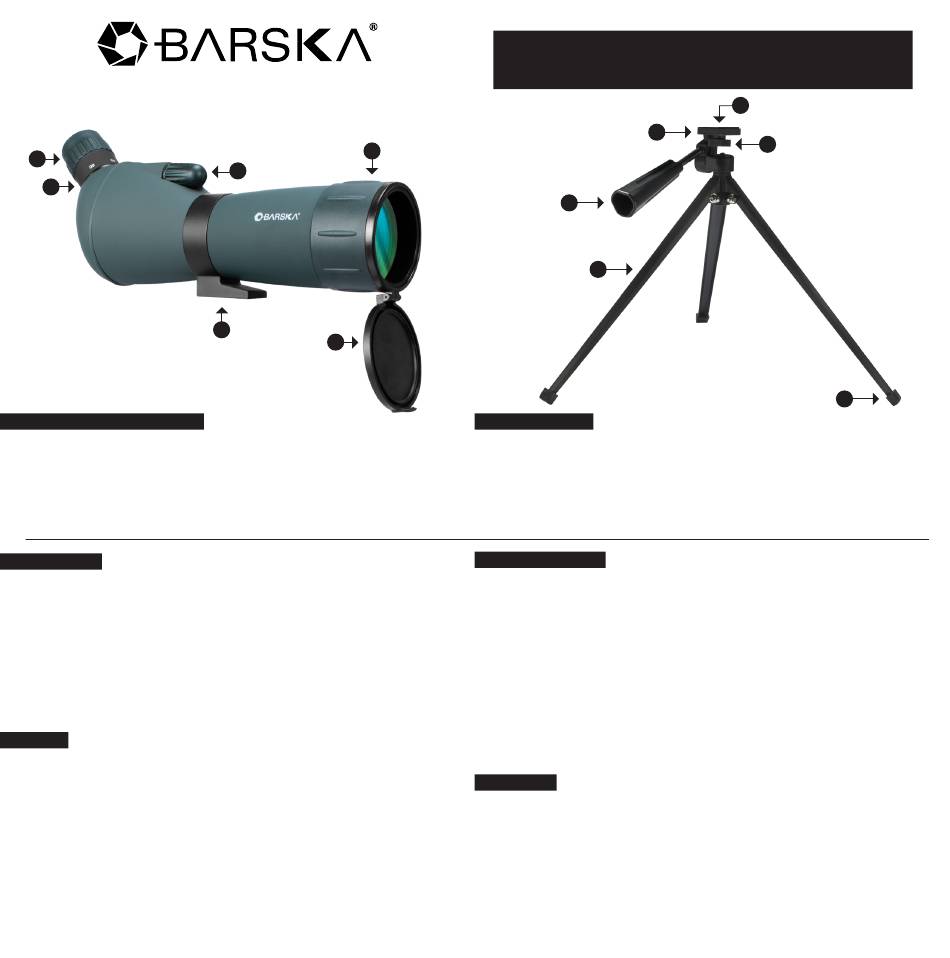

Parts of the Spotting Scope
A - Eyepiece
B - Zoom Ring
C - Focus Knob
D - Objective Lens
E - Lens Cover
F - Mounting Plate
Tripod Set Up
Spread the tripod legs and set the tripod on a firm support.
Mounting
1. Position the mounting plate onto the mounting platform of the spotting scope
then tighten mounting screw located under the mounting plate to firmly lock
spotting scope body onto the mounting plate.
2. Make sure screws are locked/tight and the tripod is on a stable surface.
Viewing
1. With spotting scope mounted securely in place, point the objective lens
at the object. Take the cover off objective lens and remove the lens cap off
the eyepiece.
2. Rotate the zoom ring of the eyepiece to the lowest magnification.
3. Look into the eyepiece, then turn the focus knob to focus object clearly.
4. Use the Pan and Tilt Control Handle to slowly move, pan, and tilt to desired
position.
D
C
F
E
