- Page 1 User's Manual Cell Phone Signal Booster OUTDOOR Internal No. P50PH-PO...
-
Page 2: Package Contents

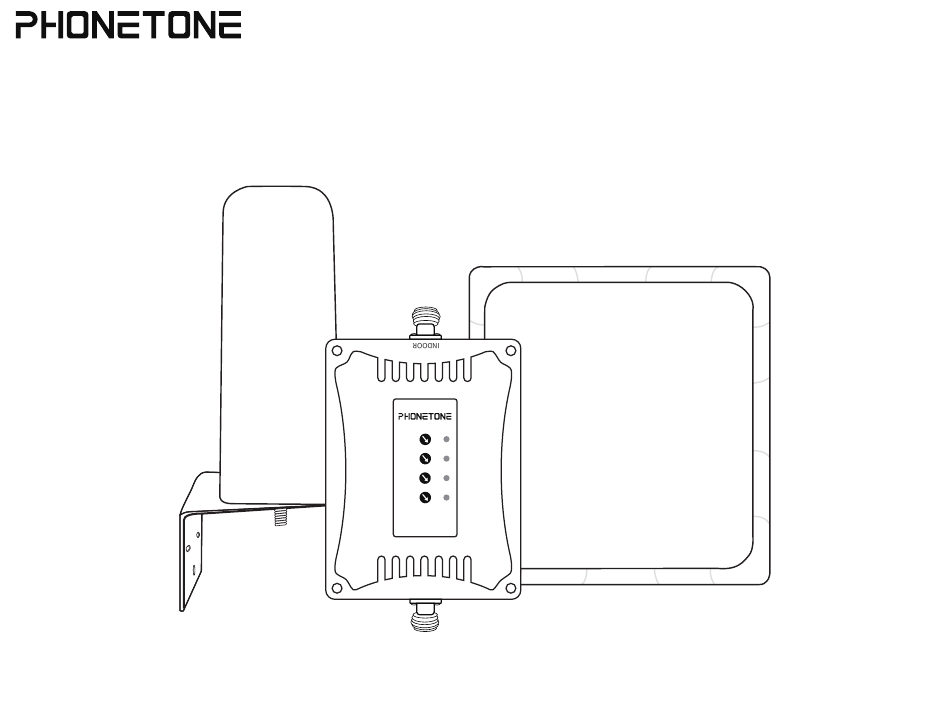

Package Contents Please confirm that your purchase includes the following items: OUTDOOR Booster Indoor Panel Outdoor Omni 16ft (5m) 33ft (10m) Antenna Antenna Cable *2 Cable Window Entry Power Adaptor Mount Bracket for Mount Bracket for Indoor Antenna Outdoor Antenna Cable... -
Page 3: Before Getting Started
Before Getting Started The whole installation process may take 1 to 2 hours, and 2 people will be easier to calibrate the position and direction of the antenna. Make sure the following materials are prepared and ready for your installation. 1. - Page 4 Step 1 Find Location with the Strongest Signal Find a location outside the house that has the best reception of cell phone signals. It is recommended to install it in a high, open, and unobstructed location such as the roof. (Use ‘Signal Advisor’...
- Page 5 Bracket U-bolt The antenna should be above the mast Washers Cable Nuts Omni Antenna Install Illustration Installation Steps: 1. Assemble the u-bolt, bracket, nuts and washers onto a mast (not provided) as shown in the illustration. 2. Connect one end of the provided coax cable to the antenna and tighten the connection.
- Page 6 Step 3 Mount the Indoor Panel Antenna The Indoor Panel Antenna is directional with a 120-degree reach, it should be mounted on a vertical surface or wall where there are no objects that may obstruct signals. Connect the antenna to the booster connector labelled ‘INDOOR’. Note: 1.
- Page 7 Step 4 Route & Connect Cable to the Signal Booster Connect the Cable to Outdoor Antenna and route cable into the home. All connections should be tightened. 5m Cable Outdoor Antenna Booster OUTDOOR Indoor Antenna Window Entry Cable 5m Cable 10m Cable A Window Entry Cable is provided to help route cable into house easier.
- Page 8 Step 5 Power On the Booster & Check Performance After completing installation step by step, turn on the power and the booster will start to work. The indoor signal strength should be enhanced for normal use. If the signal is still not improved, please refer to the troubleshooting steps. at least 9m apart or good isolation in between Outdoor Antenna...
-
Page 9: Troubleshooting
Step 6 Troubleshooting Problem Resolution Stronger signal input or self-oscillation has been detected, AGC (Auto-Gain Control) function is working and one or more of the band channel have been shut down. 1. Increase the distance (ideally greater than 9m) between indoor and outdoor antennas if possible, make sure that they are installed in opposite directions. - Page 10 Introduction of Manual Gain Control Function The gain for each frequency band should always be set at its maximum value unless the booster is not working properly and following troubleshooting steps cannot solve the problem. The figure shown below is only for illustration purposes, the frequency band noted maybe different from your booster. Gain Value Scale LTE-700MHz Gain Value...
-
Page 11: For Android
Instructions of Signal Advisor APP： For Android: Log in: After launching the APP, for the first time use, you need to register your account, you will be prompted to enter your email address, your buying platform and create your password. - Page 12 Please note: This booster model cannot be connected to the APP. This APP function is only available for certain booster models. Please skip this page.
- Page 13 Test Frequency Band and Find Cell Tower: First, tap ‘Find Cell Tower’. You can see the frequency band of you phone here. Then, tap the blue arrow icon shown below ‘Base Station Direction’ and you can enter the page as shown on the right. You can now follow the signal strength prompts shown in the blue circle to find a direction with strong and stable signals as the installation direction of your outdoor antenna.
- Page 14 Watch Installation Video: Contact Us: If you are experiencing any product installation problems, please do not hesitate to contact us. At the top of the screen, You can send messages to us by tapping 'Help' at the tap ‘Installation Video’. bottom of the screen.
- Page 15 For iPhone: Test Frequency Band: Dial No. *3001#12345#* → Tap ’Serving Cell Info’ → Check ‘Band Info’...
- Page 16 Find Cell Tower: First, tap ‘Find Cell Tower’. Then, tap the text ‘Click to get the location’ and you can enter the page as shown on the right. You can now follow instruction steps to fill in your ‘Cell ID’ and ‘LAC’ and then tap ‘Find the cell tower’.
- Page 17 Follow the signal strength prompts shown in the blue circle to find a direction with strong and stable signals as the installation direction of your outdoor antenna. You can tap the text ‘Try again to find the cell tower’ to go to the previous page. Other functions of the APP for iPhone please refer to the instruction for Android, they are basically the same.
- Page 18 Any questions, please contact us. wecare@phonetonetech.com www.phonetonetech.com...
