Summary of Contents for Eurotech Vitra-200 KD60

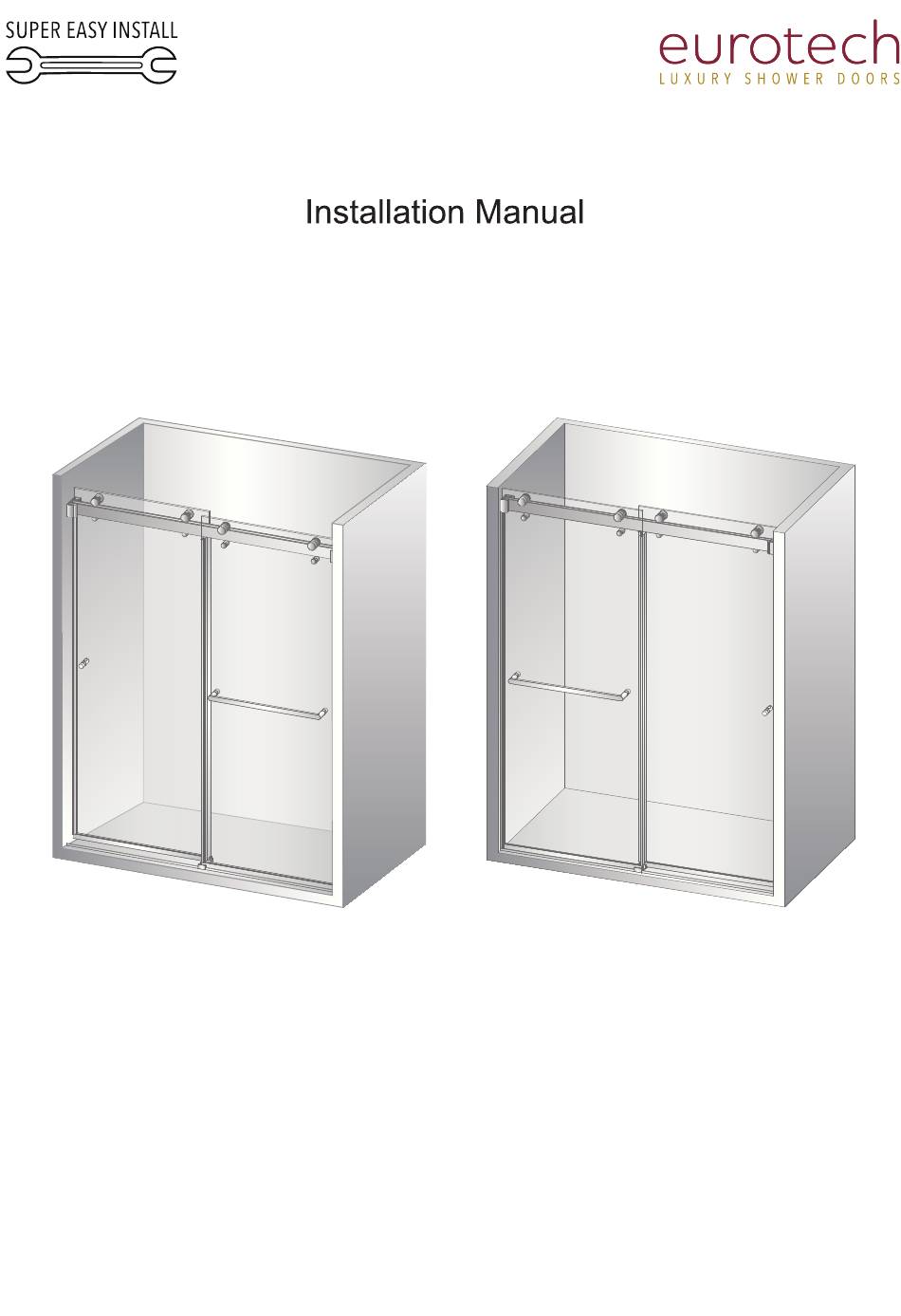

- Page 1 Vitra-200 KD60 outside door right outside door left HARDWARE FITS UP TO 60" WIDE OPENING...
- Page 2 1/4" Silicone Level Drill Screwdriver （Phillips） Painters Mallot Pencil Tape Measurer Allen Wrenches Tape...
- Page 3 Safety Bumper Bottom Slip-on Seal Knob F-seal 2pcs Towel Bar Wall Bracket Caps 4pcs...
- Page 4 outside door right Configuration 1 outside door left Configuration 2...
- Page 5 Bar Cut Formula: overall width minus 3/4" top of curb or tub Bottom Guide and Water Guard Installation: center bottom guide between walls and curb depth, install aluminum water guard Aluminum Water Guard Cut Formula: overall width minus 1/16"...
- Page 6 outside door right Bottom Door Gasket note: install prior to hanging doors...
- Page 7 outside door left Bottom Door Gasket note: install prior to hanging doors...
- Page 8 outside door right outside door left...
- Page 9 For outside door right insert safety bumpers into wall brackets as shown For outside door left insert safety bumpers into wall brackets as shown DO NOT OPERATE DOORS WITHOUT SAFETY BUMPERS AND SEALS PROPERLY INSTALLED...
- Page 10 V Seal V Seal DO NOT OPERATE DOORS WITHOUT SAFETY BUMPERS AND SEALS PROPERLY INSTALLED...
