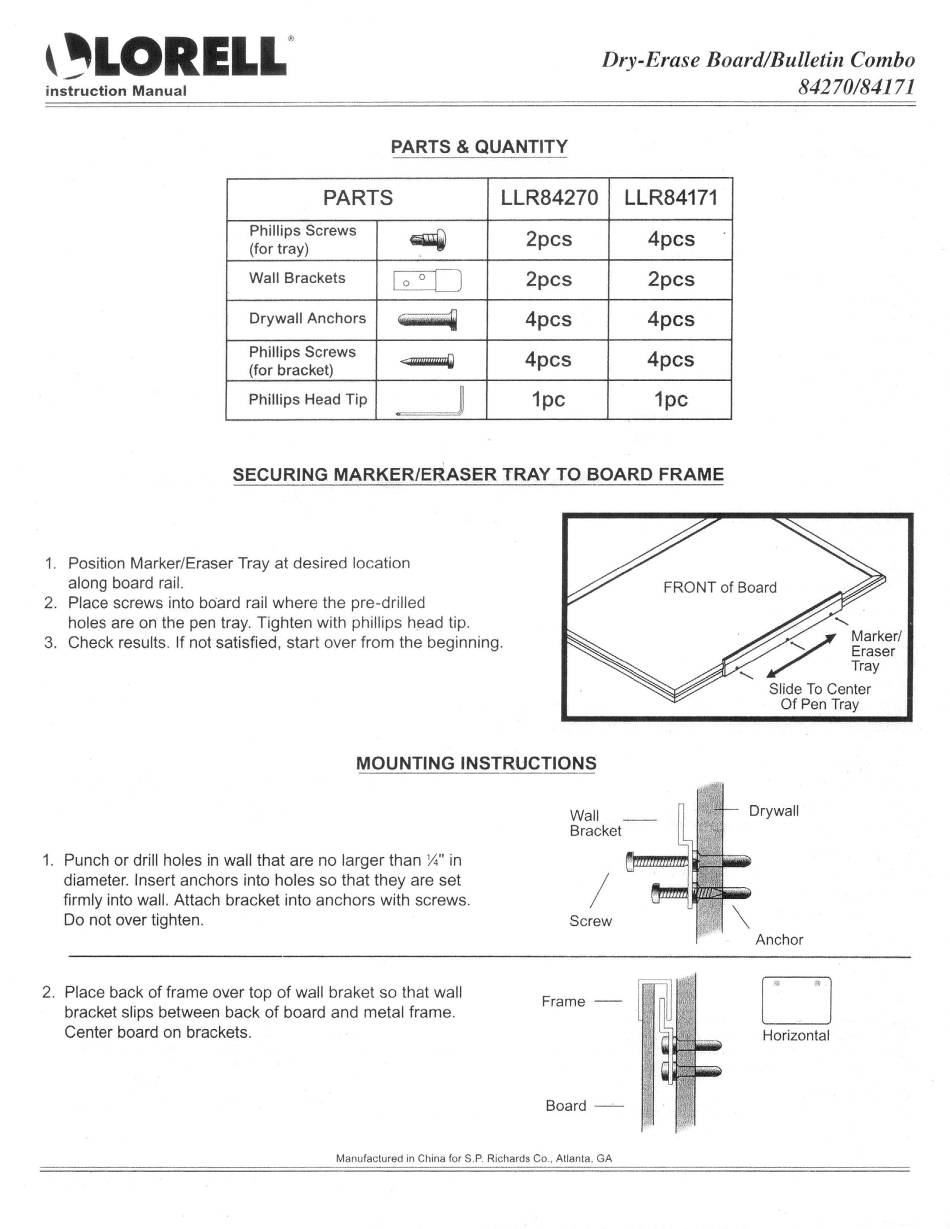

Lorell 84270 Manual

'~LORELL®
instruction Manual
Dry-Erase Board/Bulletin Combo
84270/84171
PARTS & QUANTITY
PARTS
LLR84270 LLR84171
Phillips Screws
~
2pcs 4pcs
(for tray)
Wall Brackets
10 0
[] 2pcs 2pcs
Drywall Anchors
'.liilr_'~
4pcs 4pcs
Phillips Screws
<lIlII!lI!lI!I!l~
4pcs 4pcs
(for bracket)
Phillips Head Tip
~
1pc 1pc
SECURING MARKER/ERASER TRAY TO BOARD FRAME
1. Position Marker/Eraser Tray at desired location
along board rail.
2. Place screws into board rail where the pre-drilled
holes are on the pen tray. Tighten with phillips head tip.
3. Check results. If not satisfied , start over from the beginning.
MOUNTING INSTRUCTIONS
1. Punch or drill holes in wall that are no larger than 14" in
diameter. Insert anchors into holes so that they are set
firmly into wall. Attach bracket into anchors with screws .
Do not over tighten .
2. Place back of frame olJer top of wall braket so that wall
bracket slips between back of board and metal frame.
Center board on brackets .
Wall
Bracket
/
Screw
Frame -
Board - '
Manufactured in China for S.P. Richards Co ., Atlanta , GA
FRONT of Board
Drywall
Anchor
D
Horizontal
