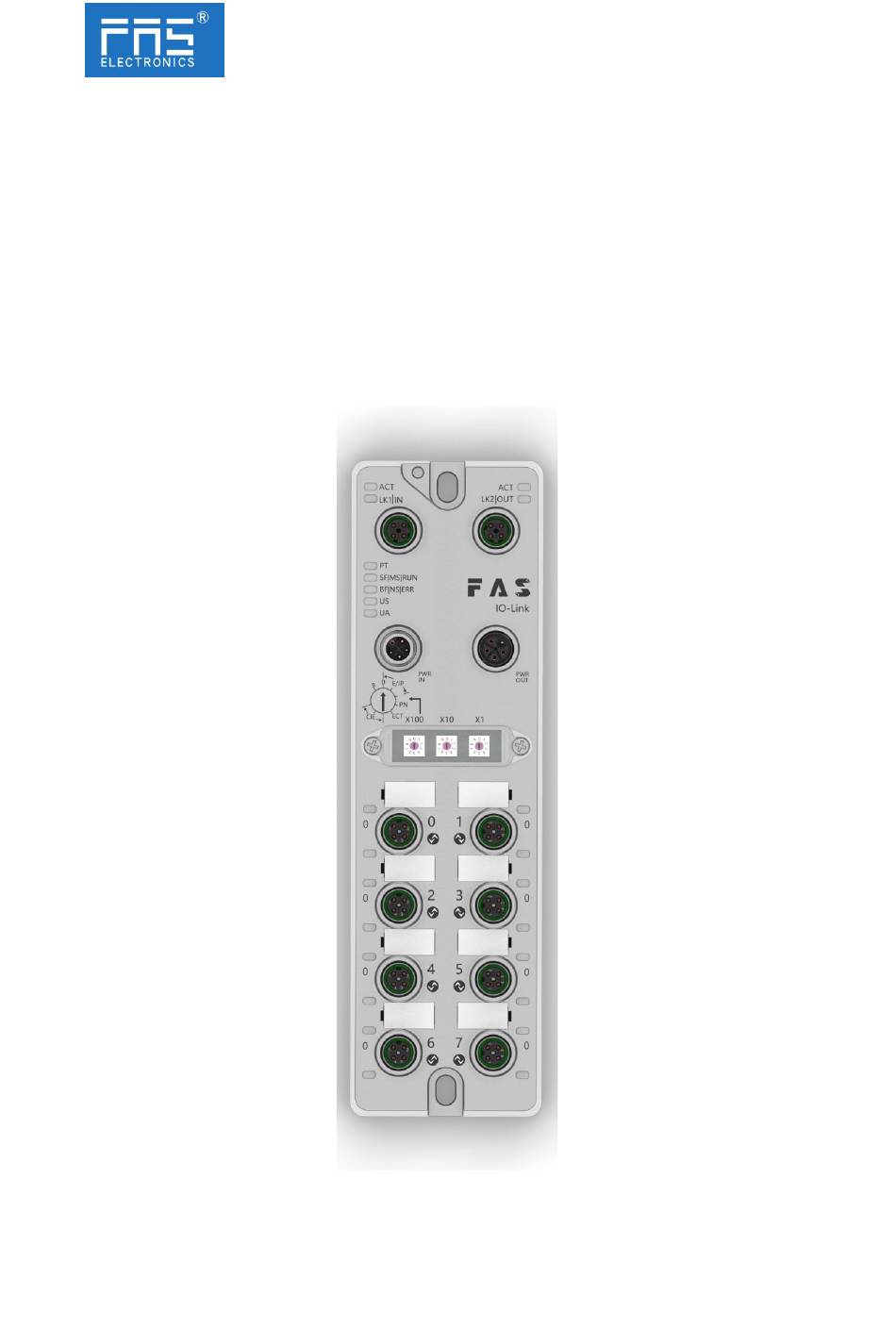

- Page 1 FNI MPL-504-105-M IO Link Master Module User Manual www.fas-elec.com...
-
Page 2: Table Of Contents
3.2. Mechanical connection 3.3. Electrical connections 4 Technical data 4.1. Size 4.2. Mechanical data 4.3. Operating conditions 4.4. Electrical data 4.5. Network port 4.6. Function indicator 5 Integrated 5.1 Module configuration 5.2 Data mapping 5.3 PLC Integration Tutorial 6 Appendix www.fas-elec.com... -
Page 3: Manual Structure
(eg: 00hex) or with the prefix "0X" (eg: 0x00) Cross reference Cross-references indicate where to find additional inform tion on this topic. 1.3.Symbol ----------------------------------------------------------- Notes This symbol indicates a general comment. Notice!！ This symbol indicates the most important safety notice. www.fas-elec.com... -
Page 4: Safety
1.3. Acronym FAS network interface Standard input port Profinet EtherCAT CCIEBS CC-Link IE Field Basic Slave Ethernet/IP Electromagnetic Compatibility Functional ground Standard output port 1.5.Viewing angle deviation Product views and explanations in this manual m ay deviate from the actual product. They are on ly used left and right to explain the material. -
Page 5: Getting Started Guide
If the modul e fails or is damaged due to this corrosive medium, n o claim for defects can be claimed. ----------------------------------------------------- Dangerous voltage Precautions! Disconnect all power sources before using the equipment! ----------------------------------------------------- Getting Started Guide 3.1. Module overview www.fas-elec.com... -
Page 6: Mechanical Connection
6 Port 1 13 Port Status Indicators 20 Ground connection 7 Port 3 14 Port 0 3 Getting Started Guide 3.2. Mechanical connection The modules are attached using 2 M6 bolts and 2 washers. Isolation pads are available as accessories. www.fas-elec.com... -
Page 7: Electrical Connections
2. The FE connection from the housing to the machine must be low impedance and kept as short as possible. 3.3.2 Network Interface(D-code) Features Send data+ Receive data+ Send data- Receive data- Notes: Unused I/O port sockets must be covered with end caps to meet IP67 rating. www.fas-elec.com... -
Page 8: Technical Data
Technical data 4.1. Size 4.2 Mechanical data Shell material Die-cast aluminum case, pearl nickel plated Enclosure rating according to IEC 60529 IP67(Only in plug-in or plug-in style) Power interface L-Code(male and female) Input port/output port M12，A-Code(8* female) www.fas-elec.com... -
Page 9: Operating Conditions
EIP Communication Protocol Module Status Show Features Green light is always Working status: The device is running nor mally SF/MS/RU Green light flashes 1 Standby: Device not configured Green, red and green Self-test: The device is undergoing a pow www.fas-elec.com... - Page 10 No configuration; or slow physical link; or no physical link Green Input voltage is normal Flashing low input voltage (< 18 V) Green The output voltage is normal Flashing low output voltage (< 18 V) Red always No output voltage (< 11 V) www.fas-elec.com...
- Page 11 State Features status LED Closure The status of Pin4 input or output is 0 Yellow The status of Pin4 input or output is1 Port is configured as input：Pin1 overcurrent Green IO Link connected Flashing IO Link not connected green www.fas-elec.com...
-
Page 12: Integrated
IP: 192.168.1. Dial protocol is EIP or CIE protocol Default CIE, the last digit X100=2:EI IP=dial code-500 eg: of the IP address 192.168.3.123, the dial will take effect X100=3:PN code should be 623 according to the X100=4:EC dial code www.fas-elec.com... - Page 13 The module is Wait for the PT X1=1: occupy powered off, dial indicator 1 station back the original Steady green X1=2: occupy module IP 2 stations address X1=3: occupy 3 stations X1=4: occupy 4 stations www.fas-elec.com...
-
Page 14: Data Mapping 1
EIP Protocol Process input data Function description Byte Function Descri Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 ption Standard IO Port7 Port6 Port5 Port4 Port3 Port2 Port1 Port0 input 0=no signal Pin4 Pin4 Pin4 Pin4 Pin4 Pin4 Pin4 Pin4 1=Signal www.fas-elec.com... - Page 15 Reserve 10 ~ 41 Port 0 process input data 42 ~ 73 Port 1 process input data 74 ~ 105 Port 2 process input data 106 ~ Port 3 process input data 138 ~ Port 4 process input data www.fas-elec.com...
- Page 16 10 = keep last Port7 Port6 Port5 Port4 value （1byte）IOLink CycleTime （1byte）Validation Type Port0 conf （2bytes）Vendor ID1~ID2 8 ~ 31 iguration （3bytes）Device ID1~ID3 （16bytes）Serial Number1~16 （1byte）Parameter Server Port1 confi 32 ~ 55 （Ditto） gure 56 ~ 79 Port2 confi （Ditto） www.fas-elec.com...
- Page 17 (value=1) Compatibility: Compare manufacturer ID/device ID with IO-Link device data. (value=2) Identity: Compares manufacturer ID/device ID/serial number with IO-Link device data. IO-Link communication is only started when there is a match. C. (2bytes) Vendor ID1~ID2 Manufacturer ID www.fas-elec.com...
- Page 18 （maximum 256Byte） Port 4 process output data(32Byte) Port 5 process output data(32Byte) Port 6 process output data(32Byte) Port 7 process output data(32Byte) CCIEBS Protocol Process input data Function description Byte Function Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Description www.fas-elec.com...
- Page 19 Port7 Port6 Port5 Port4 Port3 Port2 Port1 Port0 0=disabled 1=enable module status Us overvoltage Ua overvoltage overheat Us undervoltage undervoltage (The rest of the points are reserved) Port 0 process input data(32Byte) （maximum Port 1 process input data(32Byte) www.fas-elec.com...
-
Page 20: Plc Integration Tutorial
Port 7 process input data(32Byte) Note: 1. Please set the CCIEBS master port function in the FAS IOLink Tool software. 2. The number of points 64 occupies 1 station, and the number of points used by the slave station connected to each port is 4 words 3. - Page 21 (2) Module port function configuration: click the module icon, select "General", and then click slot 1 to configure the port function (1) Module function configuration: Click the module icon, select "General", and then click slot 0 to configure the module function www.fas-elec.com...
- Page 22 "Show EDS Library", click "Install" in the pop-up window, and select EDS file installation 2. Create a module: Click "+" in the toolbox window, fill in the module IP address, model name, version, and click "Add" below to complete the module creation; www.fas-elec.com...
- Page 23 (connection) - click "+", the target device selects the previously configured module, the IO type selects EXCLUSIVE Owner, and the corresponding For input and output, the target variable must be filled with 101,100; then select the corresponding starting variable, and go online after completion. Select "Transfer to Controller" and the configuration is complete! www.fas-elec.com...
- Page 24 3. Click on the left project-parameters-FX5UCPU-module parameters-Ethernet port, basic settings-self-node settings. Set the self-node IP 2. Click CC-Link IEF Basic Settings - select whether to use CC-Link IEF Basic - click Use 3. Click CC-Link IEF Basic settings - select network configuration settings - detailed settings; www.fas-elec.com...
-
Page 25: Appendix
2.Select the specified soft element for refresh target - soft element name M - assign soft element address - application, the configuration is complete! 6 Appendix 6.1. Materials included FNI MPL includes the following component · I/O-block ·4 blind plugs M12 ·Ground bus ·Thread M4x6 20 tags www.fas-elec.com... - Page 26 6.2. order code FNI MPL-50x-105-M FAS Network Interface Various industrial communication protocols Features 506= IP 67 IO-Link master module, 8 IO-Link ports Port4~7 no 10 outputs 508 = IP 67 IO-Link master module, 8 IO-Link ports Version 105 = show version...
