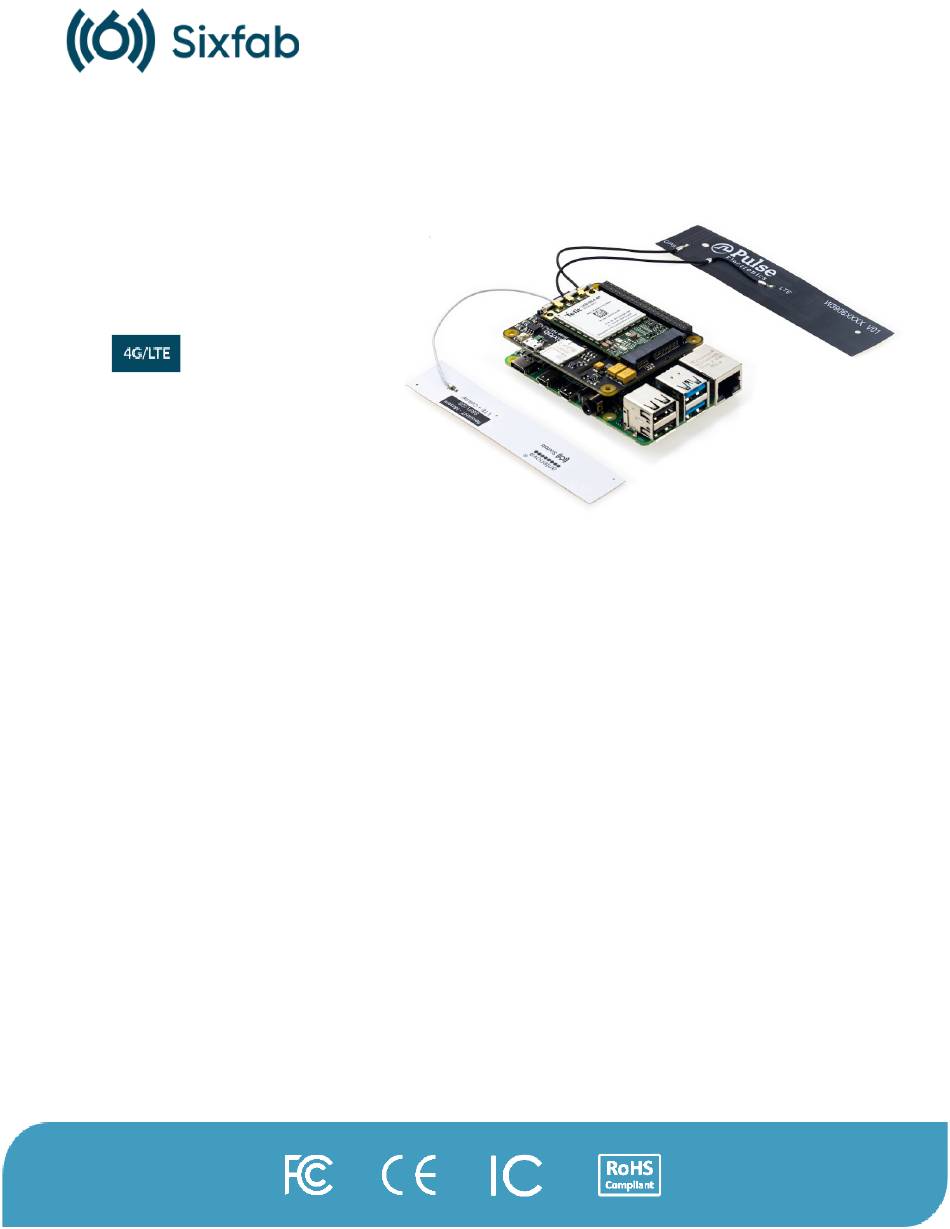

Cellular Modem Kit
Description
This LTE Modem Kit is the easiest way to get a mobile LTE connection to Raspberry Pi-based IoT projects.
We've bundled all the hardware and accessories you need in a single kit! It features a pre-certified carrier
board, the Sixfab Base HAT with an industry-proven design, so you can get your product to market much
quicker. LTE connected Raspberry Pi is a tiny computer that can connect directly to the internet over a cellular
network. It can be used in a variety of applications to create internet-connected devices.
Key Applications
Home Automation Controller
●
Mobile Hotspot
●
IoT Gateway
●
Video Surveillance
●
Smart Healthcare
●
Asset Tracking
●
Predictive Maintenance
●
Smart Cities
●
Advertisement
Table of Contents
Summary of Contents for Sixfab B089X8N2TY
- Page 1 We’ve bundled all the hardware and accessories you need in a single kit! It features a pre-certified carrier board, the Sixfab Base HAT with an industry-proven design, so you can get your product to market much quicker. LTE connected Raspberry Pi is a tiny computer that can connect directly to the internet over a cellular network.
-
Page 2: Release Notes
Release Notes Date Version Description October 2021 First Release... -
Page 3: Table Of Contents
Contents Cellular Modem Kit Description Key Applications Introduction Package Includes Technical Details Base HAT Pinout Base HAT Pin Descriptions Solder Jumper(SJ) Base HAT Layout LEDs Buttons Specifications Environmental Electrical Compliance User Guide System Requirements Hardware Setup Software Setup... -
Page 4: Cellular Modem Kit
It is also a complement to the Sixfab Platform. Sixfab Cellular Modem Kit is compatible with Raspberry Pi 3, 3B+ and 4. This kit is also available as part of Sixfab’s CORE which is designed for IoT applications in which the device’s mobile network connection needs to be constantly available and stable. -
Page 5: Technical Details
Sixfab Raspberry Pi 4G/LTE Cellular Modem Kit Technical Details This section introduces the concepts and terms that are crucial for the understanding, implementation and use of Raspberry Pi 4G/LTE Cellular Modem Kit Base HAT Pinout Figure 1. Base HAT Pinout... -
Page 6: Base Hat Pin Descriptions
Sixfab Raspberry Pi 4G/LTE Cellular Modem Kit Base HAT Pin Descriptions Pin Number BCM Pin Pin Name Description This pin functions as the serial data input to the module UART_TX for UART communication. Disconnected by default. This pin functions as the serial data output from the... -
Page 7: Solder Jumper(Sj)
Sixfab Raspberry Pi 4G/LTE Cellular Modem Kit Solder Jumper(SJ) When you observe the HAT, you will come across some solder Jumpers marked as SJx (SJ1, SJ2, SJ3, etc). These solder jumpers are either connected or disconnected by default. These can be used to enable or disable the default use case. -
Page 8: Base Hat Layout
Sixfab Raspberry Pi 4G/LTE Cellular Modem Kit Base HAT Layout Figure 2. Base HAT Layout LEDs PWR LED: When the module is powered up, this red LED turns on. ● USER LED: It is a programmable user-LED can be controlled from the GPIO27 of Raspberry Pi for ●... -
Page 9: Buttons
Sixfab Raspberry Pi 4G/LTE Cellular Modem Kit Buttons ● User Button: It is a programmable user button that is connected to GPIO22. It reads HIGH at default status. Specifications Telit Telit Telit Telit LE910C1/C4-EU LE910C1/C4-NF LE910C1/C4-AP LE910C4-WWX EMEA (Europe, North America... -
Page 10: Environmental
Sixfab Raspberry Pi 4G/LTE Cellular Modem Kit Environmental Max. operating and storage temperature: -25°C to 70°C Electrical Rated input voltage(V): 5V DC Rated input current(A): 3.0A Compliance United States: FCC Part 15 Class B ● Canada: ICES-003 Class B ●... -
Page 11: User Guide
This guide will lead you to step by step to create a cellular connection with the Raspberry Pi 4G/LTE Cellular Modem Kit. Getting started is pretty straight forward, first you will setup the hardware then complete the Sixfab CORE installation. Each of the steps are mentioned in detail below. -
Page 12: Hardware Setup
Sixfab Raspberry Pi 4G/LTE Cellular Modem Kit Hardware Setup 1. Attach the mini PCIe module to the HAT Copyright © 2021, Sixfab Inc To purchase products from our store or for more detailed information, go to sixfab.com. - Page 13 LTE-GNSS dual antenna to the main Antenna interface/diversity antenna interface & GPS Antenna portion goes to the GNSS antenna interface. Copyright © 2021, Sixfab Inc To purchase products from our store or for more detailed information, go to sixfab.com.
- Page 14 Sixfab Raspberry Pi 4G/LTE Cellular Modem Kit 3. Attach header and Sixfab SIM Copyright © 2021, Sixfab Inc To purchase products from our store or for more detailed information, go to sixfab.com.
- Page 15 4. Attach it to the Raspberry Pi Note: For a clean install and avoiding installation errors, plug Micro USB into HAT after the software setup is complete. Copyright © 2021, Sixfab Inc To purchase products from our store or for more detailed information, go to sixfab.com.
-
Page 16: Software Setup
If you are logging in to Connect for the first time, follow the 'Quickstart' steps first. If not, continue with step 2. Register your SIM with its ICCID and giving it a name. Add your credit card or add credit using the $25 coupon code provided by Sixfab that comes with the kit. Copyright © 2021, Sixfab Inc... - Page 17 Info: If you want to continue without creating a device in CORE, follow one of the tutorials(PPP,QMI or ECM) here. Sixfab CORE is highly recommended for a robust and reliable connection. Copyright © 2021, Sixfab Inc To purchase products from our store or for more detailed information, go to sixfab.com.
- Page 18 View your available SIM cards by going to "SIM -> My SIMs". Click on the "Create Device" link in the row the SIM for which you will create the device. Copyright © 2021, Sixfab Inc To purchase products from our store or for more detailed information, go to sixfab.com.
- Page 19 Once the installation is completed successfully, Hit Enter to reboot the Raspberry Pi and plug the USB cable to the HAT. Copyright © 2021, Sixfab Inc To purchase products from our store or for more detailed information, go to sixfab.com.
- Page 20 Once the installation is completed, the following dashboard will appear with the device information. After a successful connection, please wait for 5 minutes for the data to appear on the dashboard. Copyright © 2021, Sixfab Inc To purchase products from our store or for more detailed information, go to sixfab.com.
