Salsbury Industries 70000 Series Installation Instructions

Open Access Standard Lockers – 70000 Series
Thank you for selecting Salsbury's open access standard lockers. We are confident that the quality and construction of the lockers will prove to be a
good investment. These instructions are intended to assist you in the assembly and installation of an open access standard locker with locked
compartment and foot locker. Individual job conditions will dictate the type of installation fasteners and whether the lockers must be anchored to the
wall, the floor, or both.

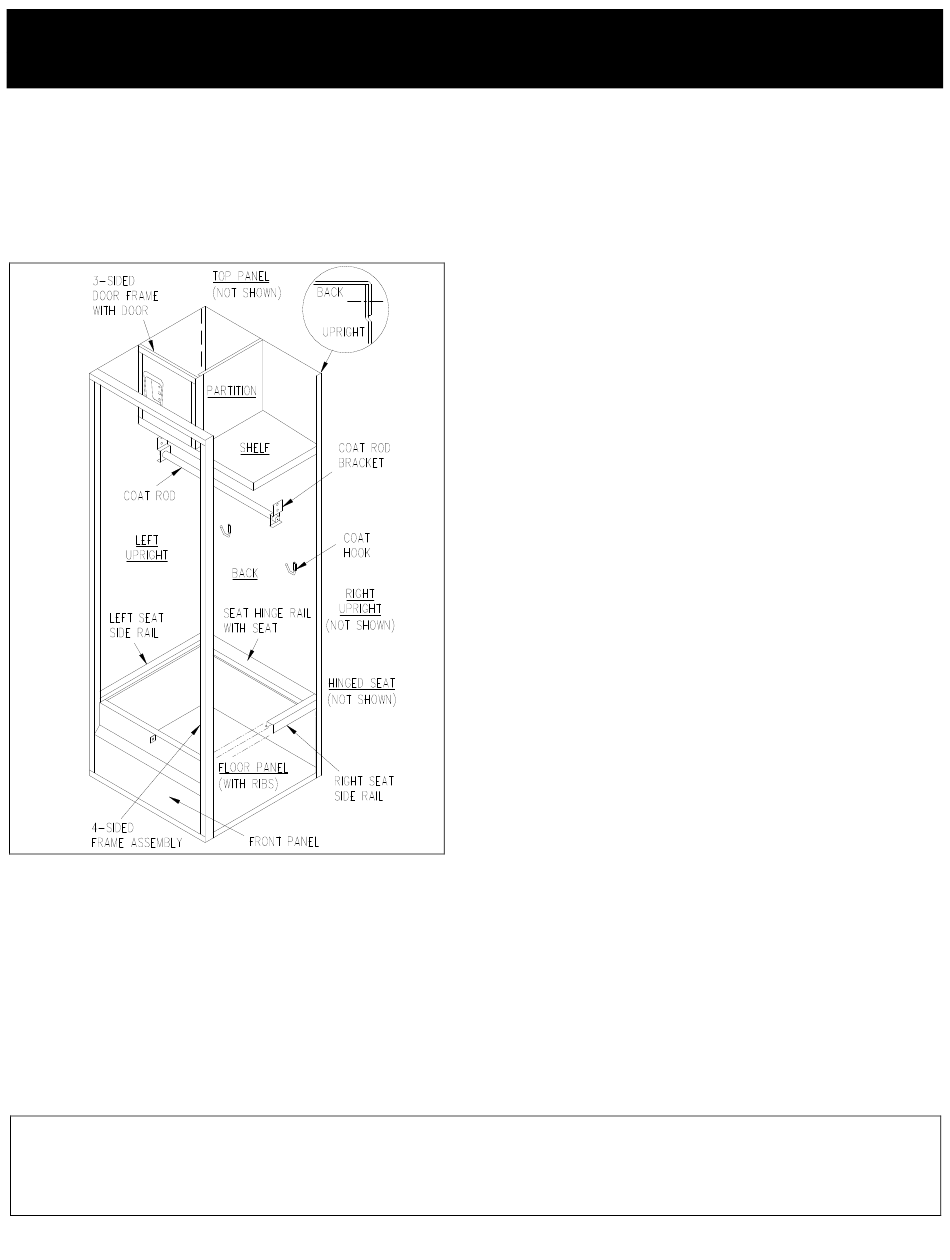

Typical Assembly
Notes
Fasteners are provided to assemble the open access locker, but
fasteners are not provided to anchor the locker to the wall. These
will vary according to the anchoring conditions.
All bolted connections should be finger tight initially. Square locker
before tightening all connections.
Adjust all doors to operate freely if required. If built-in locks are
installed, make certain locks operate properly before closing doors.
Installation instructions are provided as general guidelines. It is advised that a professional installer be consulted. Salsbury Industries assumes no product assembly or installation liability.
Installation Instructions
SALSBURY INDUSTRIES
nd
1010 East 62 Street, Los Angeles, CA 90001-1598
Phone: 1-800-562-5377
Fax: 1-800-562-5399
Copyright © 2009 Salsbury Industries. All rights reserved. (Rev. 03, 1/8/2009)
Instructions
1. Assemble left upright to back. Side flange of back should be on
the outside. (Heads of the bolts on the outside with the nuts to
the inside).
2. Add top panel to the back and upright at the top. The top panel
has no stiffening ribs. Top panel flanges should go inside left
upright and back. Rectangular notches go toward the front.
(Heads of the bolts on the outside with the nuts to the inside).
3. Attach 3-sided door frame and door assembly to left upright and
top. (Heads of the bolts on the outside and locker top).
4. Attach partition to back, top panel, and right edge of 3-sided door
frame.
5. Attach shelf underneath the 3-sided door frame to the left upright,
back, and partition.
6. Attach right upright to back, top panel, and shelf.
7. Attach floor panel to back, left upright, and right upright. Floor
panel has 2 stiffening ribs underneath. Rectangular notches go
to the front.
8. Attach left seat side rail to left upright and right seat side rail to
right upright.
9. Attach the hinge rail with seat assembly to the left and right seat
side rails
10. Attach coat hooks, coat rod brackets, and coat rod. (Heads of
the bolts on the outside with the nuts to the inside).
11. Attach front panel to 4-sided frame assembly. (Heads of the
bolts on the inside of the front panel with the nuts on the inside of
the frame).
12. Bolt 4-sided frame assembly with front panel to the assembled
locker body. (Heads of the bolts on the outside with the nuts to
the inside). This completes the assembly of the open-access
locker.
