Vixen VGW2390-2 User Manual

BEFORE BEGINNING YOUR INSTALLATION
Read through the entire instruction guide before getting started with the installation.
CONTENTS

2-Conductor 90 Degree Quick Connector Adapter x 2

Double-sided Tape x 4
Only use this quick connector adapter in low voltage electrical
connections such as with LED lighting, doorbells, security
cameras and speakers. Never exceed the maximum voltage
rating value of 36V.
SAFETY INSTRUCTIONS
 Use safety precautions while working with scissors or sharp knives.
 Make sure to first finish all connections on the flat cable, quick connectors, etc. before connecting the line to the
device or power line.
 Although this product may work well in places such as a porch or patio we recommend its use indoor only.

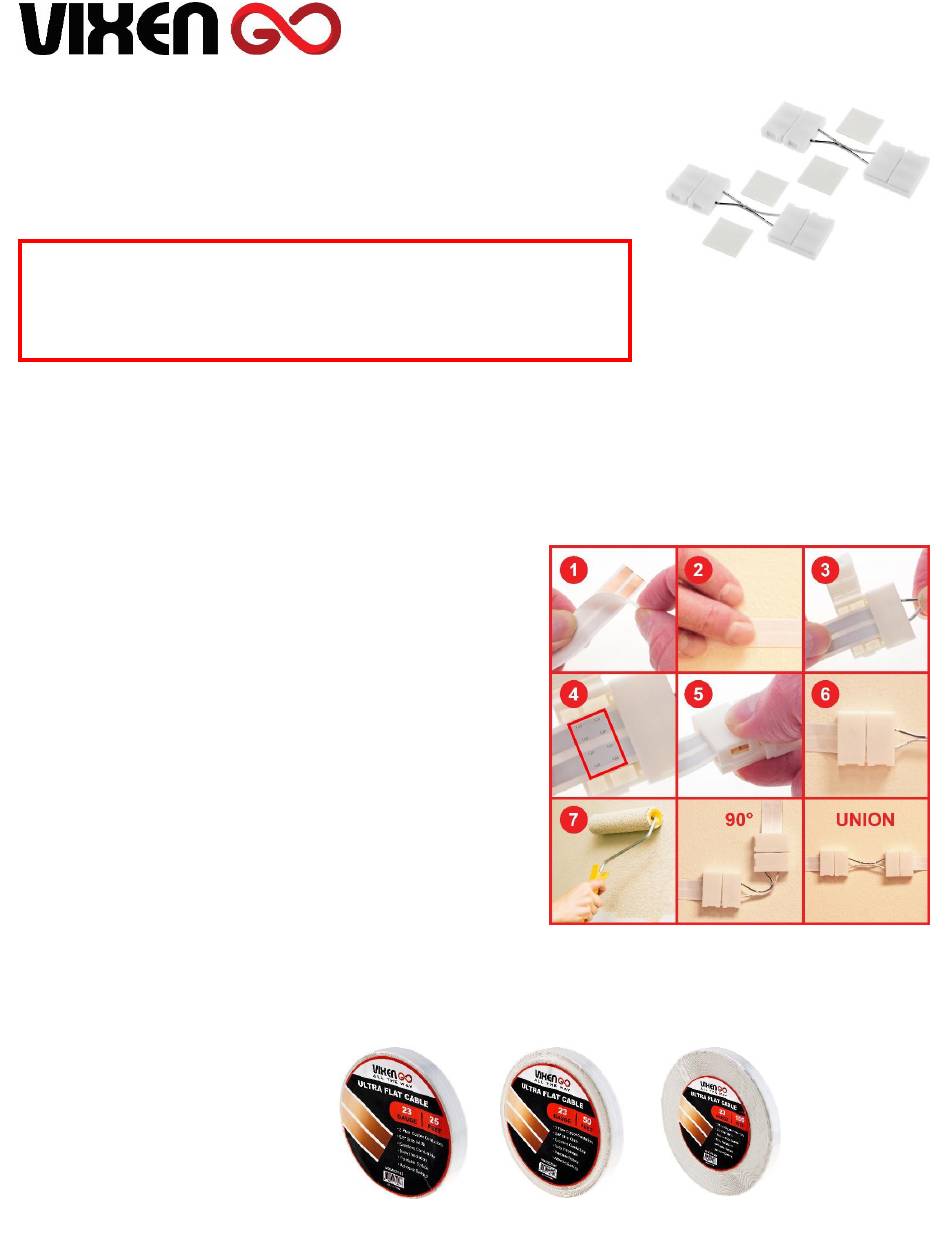

INSTALLATION
On 23AWG 2-Conductor Ultra Flat Cable, not supplied
(VGW0223)
 Ensure full access to the location where you are planning to
install the flat cable, make sure there are no furniture or
other objects that will obstruct the installation area.
 This 90 degree quick connector adapter can be used to
change the strip's trajectory or as a union.
 Starting with one end of the strip, remove the adhesive
paper (bottom layer) and start applying the flat wire to the
surface where it is going to be installed. Images 1 and 2
 Once you have the strip installed you can proceed to install
the terminals. Two quick connector adapters are needed,
one for each end.
 Open the quick connector adapter door that is on the
opposite side of the pre-installed wire terminals and place
the flat cable centered on top of the two contacts. The flat
cable will go inside the adapter about 5/8". Before closing
the door make sure that the teeth on the adapter are making
contact with the flat cable's conductors. Images 3 and 4
 With slight force, close the door until the side retention tab clicks. Image 5
 You may choose to secure it to the installation surface using double-sided. Image 6
 Repeat above steps on the other end of the strip.
 You can proceed to prime or paint the flat wire for maximum concealment. Image 7
COMPATIBLE FLAT CABLES
23AWG 2-CONDUCTOR FLAT CABLE
VGW0223-25 (25 FT)
VGW0223-50 (50 FT)
VGW0223-100 (100 FT)
PAGE 1 of 1
VGW2390-2
USER MANUAL
