Vixen VGW1620-4 User Manual

BEFORE BEGINNING YOUR INSTALLATION
Read through the entire instruction guide before getting started with the installation.
CONTENTS

Quick Connector Adapter (Terminal Block) x 4
Only use this quick connector in low voltage electrical
connections such as with LED lighting, doorbells,
security cameras and speakers. Never exceed the
maximum voltage rating value of 36V.
SAFETY INSTRUCTIONS
 Use safety precautions while working with scissors or sharp knives.
 Make sure to first finish all connections on the flat cable, quick connectors, etc. before connecting the line to the
device or power line.
 Although this product may work well in places such as a porch or patio we recommend its use indoor only.
INSTALLATION
On 16AWG 2-Conductor Ultra Flat Cable, not
supplied (VGW0216)
 Ensure full access to the location where
you are planning to install the flat cable,
make sure there are no furniture or
other objects that will obstruct the
installation area.

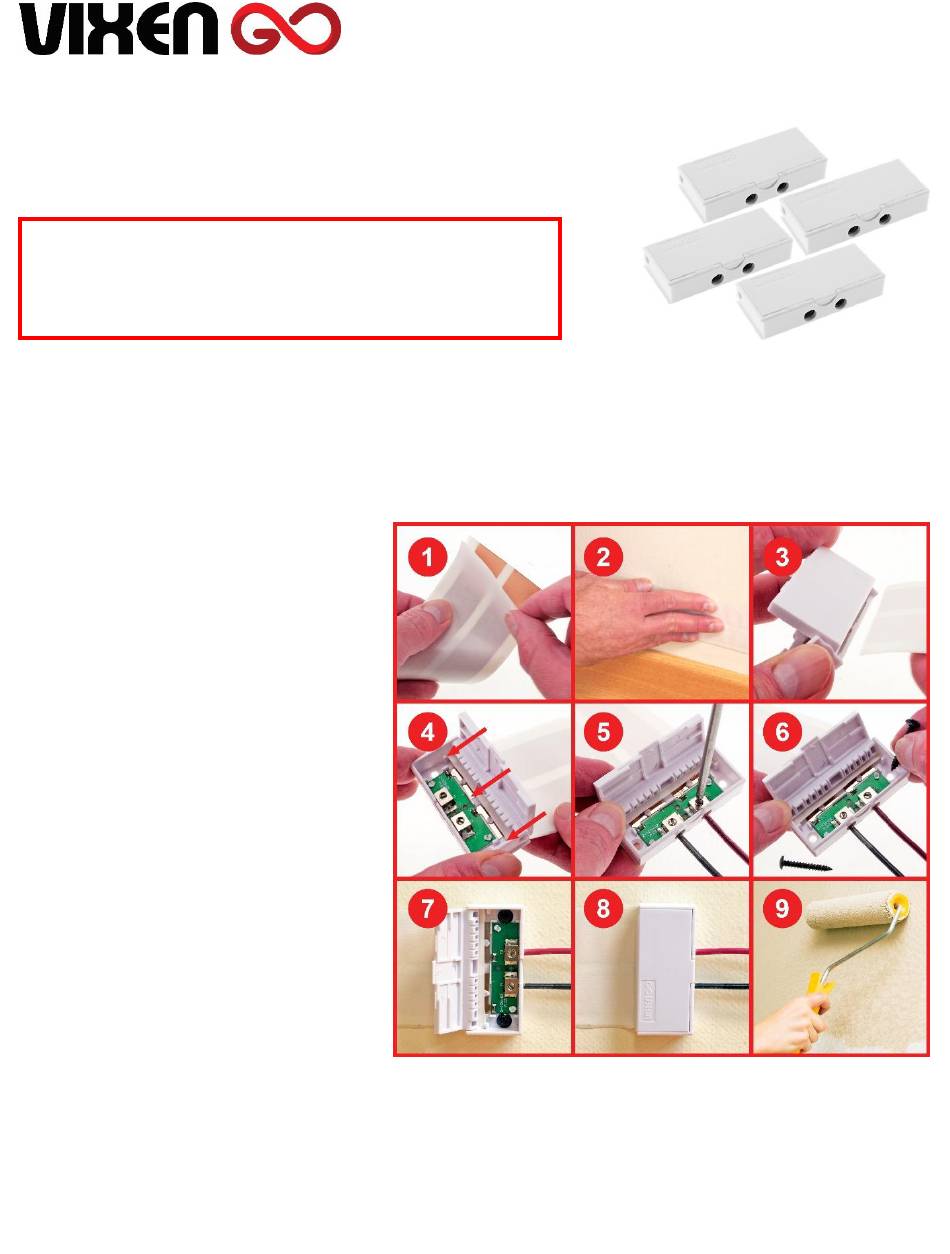

 Starting with one end of the strip,
remove the adhesive paper (bottom
layer) and start applying the flat wire to
the surface where it is going to be
installed. Images 1 and 2
 Once you have the strip installed you
can proceed to install the terminals.
Two terminal blocks are needed, one
for each end.
 Open the terminal block and with the
door half way opened start inserting the
flat cable thought the opening between
the door and the bottom of the terminal
block. There are stoppers inside the
terminal block that will indicate how far
the strip must be inserted (about 1/2").
Images 3 and 4
 Using a flat head screwdriver, unscrew
both screws and connect your device's
wires to the terminal block, then tighten the screws. This terminal is compatible with up to 10AWG wires. Image 5
 Before closing the terminal block, you may choose to secure it to the surface using two screws (not supplied),
then close the terminal door. Images 6, 7 and 8
 Repeat above steps on the other end of the strip.
 You can proceed to prime or paint the flat wire for maximum concealment. Image 9
