OEDRO OETEWB-0012 Care And Use Instructions

OFF-ROAD 4X4 DIY
Tools Required
21mm, 19mm, 13mm Socket
19mm, 10mm Wrench
4mm Hex Bit
Ratchet
Torque Wrench
Notes
Read this instruction carefully before starting installation.
Proper tools will improve the quality of installation and reduce the time
required.
If missing parts or any damage found, please take a picture, and contact us.
Professional installation would be highly recommended.
Periodic check to ensure all mounting hardware remains secure and tight.
The rear spot lights require self-wiring, the harness is not include.
Do NOT exceed vehicle manufacture recommended towing capacity.
For more towing and off-road recovery information, please check the
vehicle owner' s manual.
Step 1:
1. In rear wheel well, remove (3) M6 bolts securing mud guard in place.
2. Remove the side braces on each side by removing (4) M10 bolts securing
each side brace .
3. Remove (4) M14 bolts securing the tow hook on the driver left side.
4. Remove (2) M14 bolts on the passenger side frame.
5. Remove (4) M10 nuts securing the bracket to the bumper.
6. Remove (2) M10 bolts securing the crossmember to the bottom of bumper.
7. Disconnect rear bumper harness and remove the bumper from vehicle.
8. Remove factory trailer hitch receiver if equipped.
CARE AND USE INSTRUCTIONS
OETEWB-0012
-1-
OFF-ROAD 4X4 DIY
Step 2:

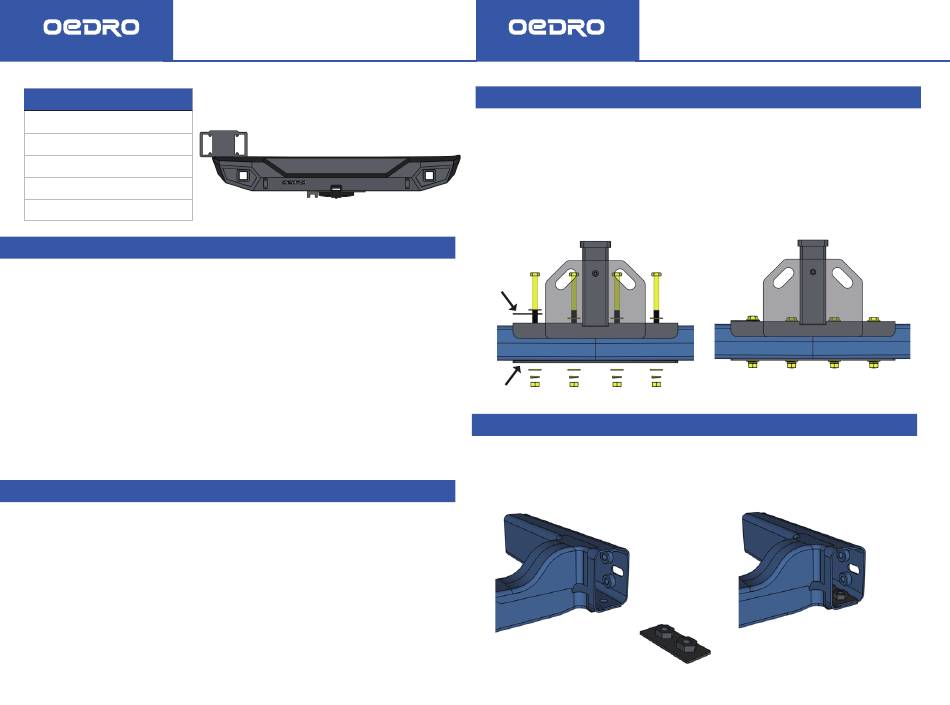

1. Attach the trailer hitch receiver and hitch spacer plate to the rear
crossmember and align mounting holes.
2. Secure the trailer hitch and plug notch plate to rear crossmember using (4)
M12×110 hex bolts, (8) M12 flat washers, (4) M12 lock washers, (4) M12 hex
nuts.
3. Tighten M12 hardware with 50 ft. lbs. torque.
Notch
Plate
Spacer
Plate
Step 3:
1. Take nut plate and place it into passenger side body frame rail.
2. Guild the plate to align the weld nut with holes under the body frame rail.
CARE AND USE INSTRUCTIONS
