Honeywell 5815WG Installation Instructions

5815WG / 5815WG-BR Wireless Door / Window Transmitter – Installation Instructions
The 5815WG and 581WG-BR are two-zone wireless door / window transmitters designed for use
with alarm systems that support Honeywell 5800 Series wireless devices.
The 5815WG and 5815WG-BR support two unique zones or "loops."
Loop 1: Externally wired, closed-circuit contact loop connected to the Terminal Block
Loop 2: Normally closed, built-in reed switch, used with the included magnet
A built-in cover tamper is also activated when the cover is removed.

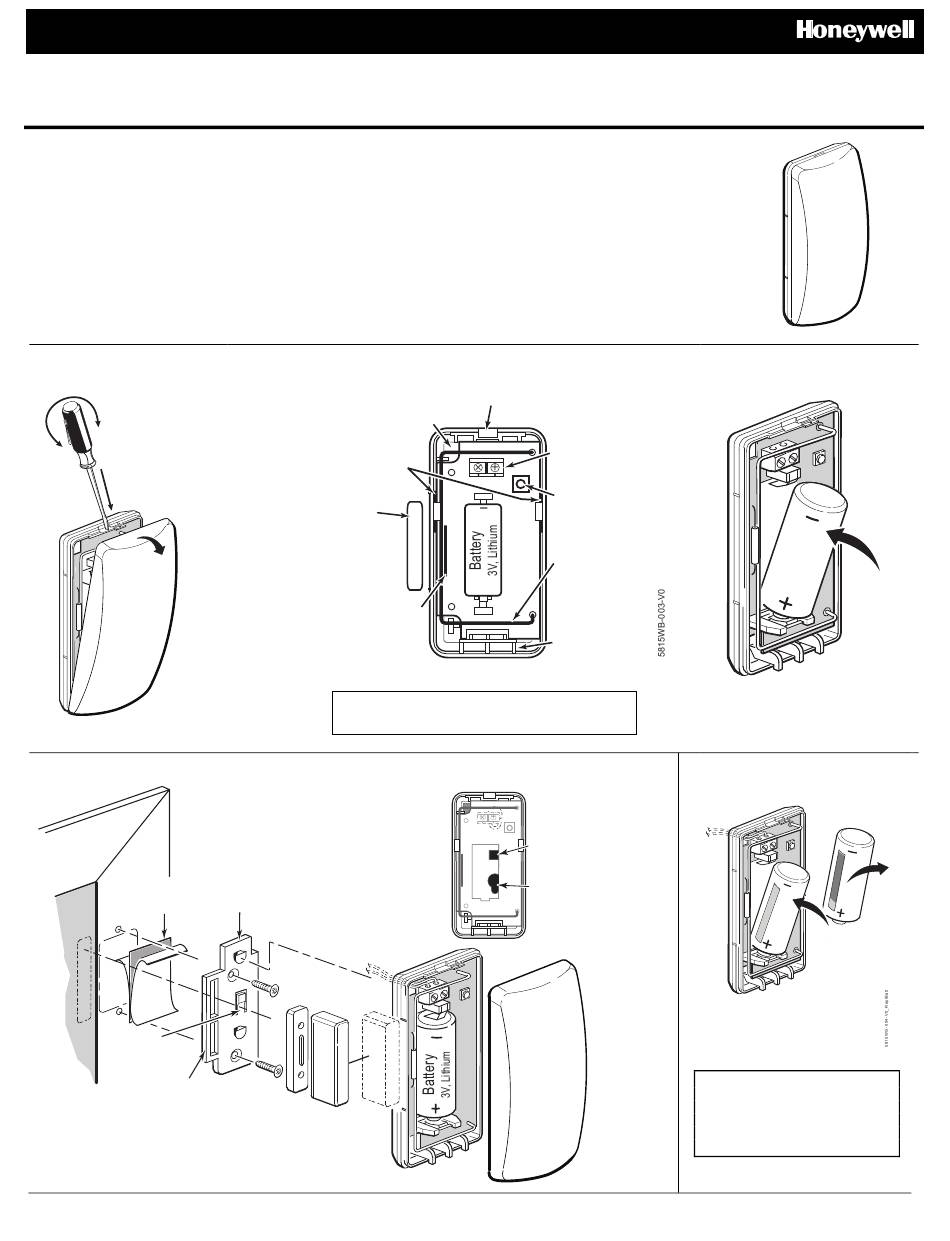

Open the Sensor
Mount the Sensor
Double-sided
Tape
Door
Case
Locking Tab
Magnet
Alignment
Tab
To remove the mounting bracket, disengage the
case locking tab through the locking tab release
window and slide the mounting bracket upward.
Wire Entry
Hole
Wire
Breakouts
Magnet
Must be within
1" (25.4 mm)
of the Reed
Switch
Reed
Switch
(Loop 2)
remove the PC Board from the back case
Mounting
Bracket
Screws: #6 x 3/4"
(3.5 mm x 19 mm)
Magnet
and Spacer
Cover
Pry-Off
Slot
Loop
Terminals
(Loop 1)
Tamper
Switch
Antenna
+
Cover
Retaining
Hooks (3)
Do NOT bend the antenna or
Locking
Tab
Release
Window
Keyhole
Slots (2)
Install the Battery
Battery
Replace the Battery
Honeywell 466
Duracell DL123A
Panasonic CR123A
Huiderui CR123A
BATTERY CAUTION: Risk of fire,
explosion, and burns. Do not
recharge, disassemble, heat above
212° F (100° C), or incinerate. Dispose
of used batteries properly. Keep
away from children.
