JC HUMMINGBIRD JC-WD-AH2 Assembly Instructions

6.5FT Round Metal Garden Arch Assembly Instructions
Please read all instructions carefully before use!
Important Safety Cautions to Reduce the Risk of Personal Injury or Product/Property
Damage:
 This product is not a toy and is intended
only for decorative purposes with
lightweight real or artificial plants,
flowers, and other wedding arch
decorations, or for decorative purposes
in training of climbing plants. Do not use
this product for any other purposes.
 Do not set or hang heavy objects on this
lightweight product. If overloaded, it
could collapse, causing product/property
damage or possible personal injury.
 Keep this product and all its small parts
out of the reach of children and pets.
 Do not stand or climb on this product. Do
not use this product as a ladder.
 Securely attach and tighten all parts of
this product before use.
 Properly secure the assembled arch to the floor by weight, cable, or other means or ground by
weight, cable, burying the bottom horizontal tubes or other means first before decorating it.
Free-standing installation is not recommended.
Package Contents: Please carefully check the contents against the parts table below.
Part No. Descriptions
1
2
12" horizontal support tubes with screw-nuts inside both ends
3
20cm Screws
4
Floor/Ground Support Bars
5
Ground Stakes
6
Extended 25cm Screws for Floor/Ground Support Bars
7
Complimentary Screwdriver
FOR JC-WD-AH2
The basic joint structure:
Narrow end of #1 curved tube is inserted into
the normal end of another #1 tube.
Through the aligned holes, #3 screw is securely
attached in #2 support tube.

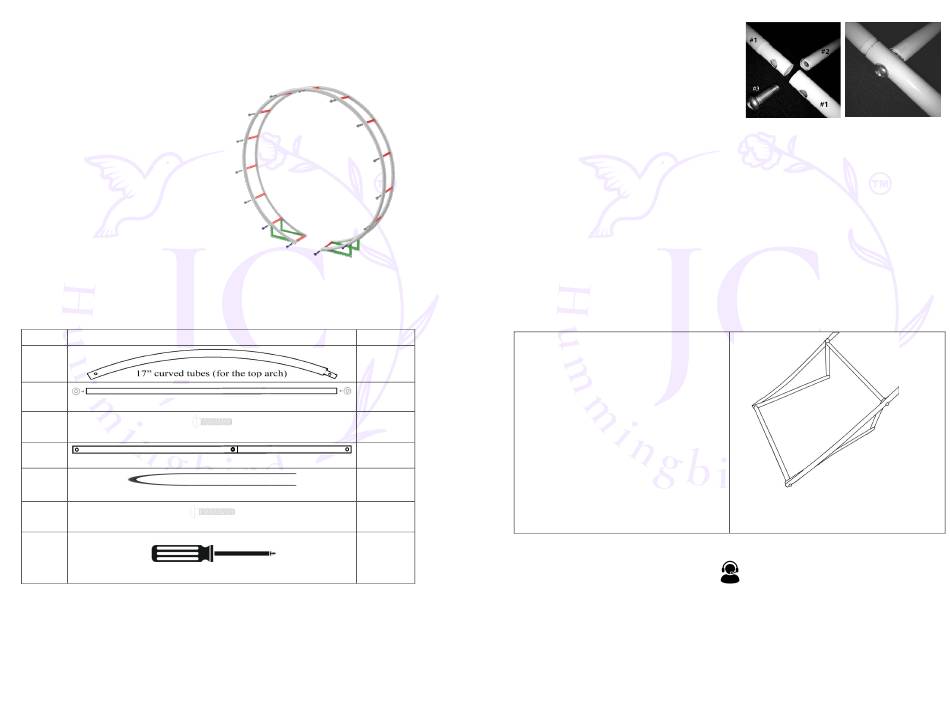

Assembly Instructions: Refer to the assembly drawing for the following steps. Ensure that the
tubes point in the direction shown.
1. Starting from the bottom right of the arch, begin assembly by inserting a #1 curved tube
into another #1 tube, and aligning the holes.
2. Insert a #3 screw into the aligned holes, attach a #2 tube as a crossbar and securely tighten
the screw with a screwdriver.
3. Repeat Step One & Two and attach the opposite side of #2 tube to another pair of #1 tubes
with the screw, forming the first rung of the ladder-shaped assembly.
4. Screw a #2 support tube at the bottom from both sides to complete the bottom assembly.
5. Add another "ladder step" by inserting 2 more #1 tubes into the top of previous assembly on
either side of the "ladder" and screwing them together with an additional #2 support tube & 2
more #3 screws.
6. Repeat to add the remaining "ladder steps".
7. Screw a #2 support tube at the bottom from both sides using the included #6 25mm screws to
complete the bottom assembly.
8. Tighten all the screws again to ensure that the completed arch is rigid.
Quantities Finally attach the floor/ground support bars to
the round arch as shown.
28
Congratulations! Now the arch is ready for
15
decorations. Make sure to first secure the arch
to the tabletop/floor or ground properly – free
standing installation is not recommended –
22
before adding lightweight decorations.
For additional indoor/outdoor wedding or
4
garden applications, this product can be
reconfigured by removing 1 or more "links" to
4
lower the arch.
Thank you for your purchase!
8
If you have any questions or concerns with your purchase, we would love to hear from you at
1
FOR JC-WD-AH2
