DESIGN HOUSE MASON 519504 Assembly/Installation Instructions

MASON RLM WALL MOUNT SKU# 519504 / 520559 / 520965 / 579334 / 579342 / 579359 / 579367
ASSEMBLY / INSTALLATION INSTRUCTIONS
Please read carefully and save these instructions, as you may need them at a later date.
Turn off the main power at the circuit breaker before installing the fixture, in order to prevent possible shock.
All electrical connections must be in accordance with local and National Electrical Code (N.E.C.) standards.
If you are unfamiliar with proper electrical wiring connections obtain the services of a qualified
electrician. Remove the fixture and the mounting package from the box and make sure that no
parts are missing by referencing the illustrations on the installation instructions. Tools are
required when install this fixture.
Philips screwdriver
ASSEMBLY AND INSTALLATION
Turn off the power at fuse or circuit breaker

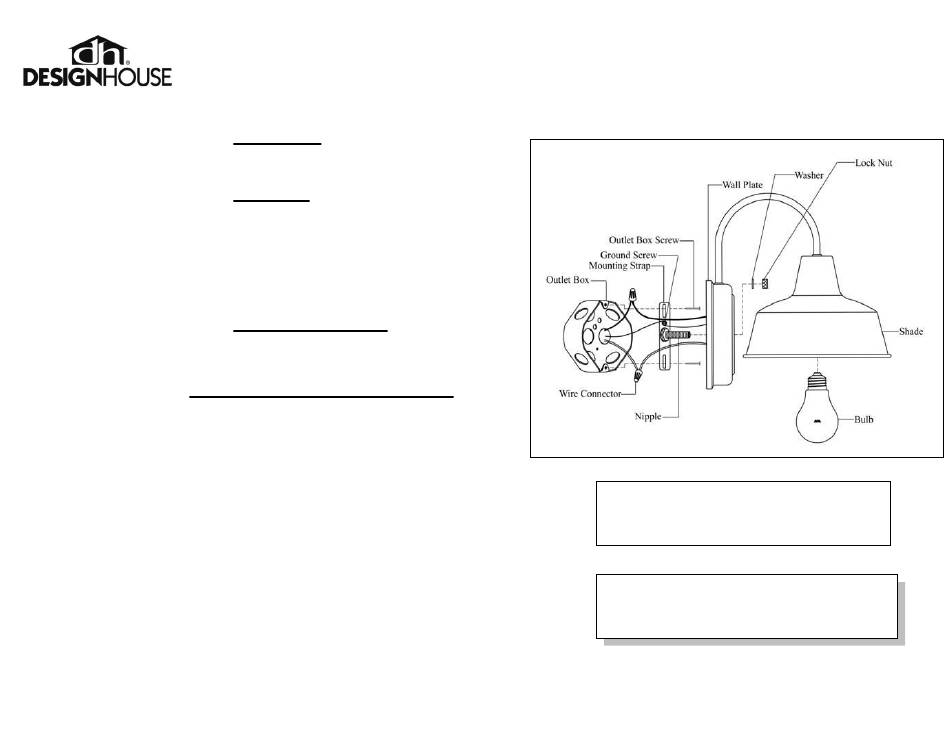

1. Carefully unpack the fixture, lay out all parts on a clean surface.
2. Attach the MOUNTING STRAP to OUTLET BOX using provided the OUTLET BOX SCREWS.
3. Tie the ground wire from the OUTLET BOX to the GROUND SCREW on the MOUNTING STRAP.
Connect white wire from fixture to white wire (neutral wire) from supply circuit. Connect black wire from
fixture to black wire (live wire) from supply circuit. Cover connections using provided WIRE CONNECTORS.
4. Place the fixture body against wall by aligning the protruding NIPPLE all the way through the WALL PLATE and
tighten LOCK NUT and WASHER to NIPPLE until the fixture body is held firmly against the wall.
5. Install the BULB (Not included).
6. Use silicone caulking to seal between wall canopy and wall. Leave bottom unsealed so moisture can drain out.
Turn on the power at fuse or circuit breaker.
MASON 10" RLM WALL MOUNT SKU# 579375 / 579383
CAUTION
GENERAL
REQUIRED TOOLS
ITEM# 519504 / 520559 / 520965/ 579334 /
579342 / 579359 / 579367 / 579375 / 579383
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN.
Customer Service: 1-800-558-8700
