Summary of Contents for SMUG C-1368-5B

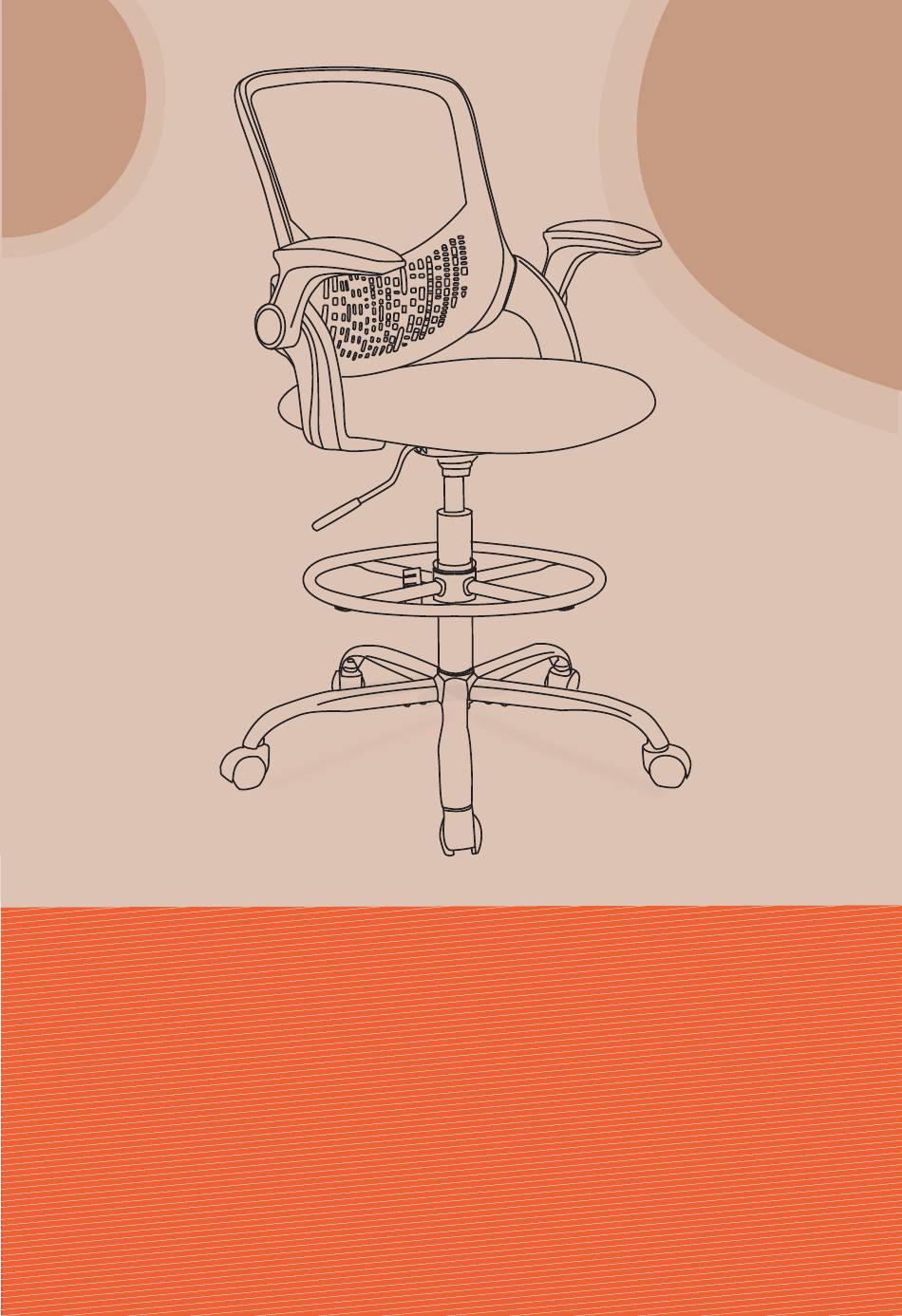

- Page 1 INSTRUCTION MANUAL Model: C-1368-5B...
-
Page 2: Package List
Package List Without further ado, we kindly suggest you to list all parts needed for the chair first. *1(L)*1(R) (1)*1 (2)*1 Backrest Seat Cushion Armrests (4)*1 (5)*1 (6)*1 Mechanism Gas Lift Base (7)*5 (8)*5 (9)*10 Legs Casters Bolts (10)*4 (11)*4 (12)*6 Bolts Bolts... -
Page 3: Assembly Instruction
Assembly Instruction Step 1: (9)×2 Turn the Base (6) upside down, then insert Base Legs (7) one by one to Base. Use the Wrench (14) to screw Ten Bolts (9) into the pre-drilled screw holes to fix the Base and the Base Legs. - Page 4 Step 4: Attach the Armrest (3)*1(R) to the Backrest (1). Pay attention to the Backrest slot. Use the Wrench(13) to fix bolt(11)*2 into the position B1and B2. All bolts do not need to be tightened, they only need to be fixed in half. （11）...
- Page 5 (12)×6 Step 6: 100% Turn the Seat Cushion (2) upside down and align the hole position of the Armrest (3)*1(L)*1(R) with the pre-drilled hole position under the Seat Cushion. Attach the Armrest (3)*1(L)*1(R) to the Seat Cushion (2) with Six Bolts (12).Using the Wrench (14).
- Page 6 Step 8: Insert the slot on the back of the mechanism behind the cushion into the Gas Lift. 100% Step 9: 100% tighten the Backrest 100% Armrest Bolts 100% CAUTION: Make sure all bolts and screws are fully tightened before using chair. Lubricate all moving parts and tighten all bolts/screws every 6 month or whenever needed.
- Page 7 Instructions For Use 1. Seat Height: Paddle-shaped lever on the right side To raise: While taking your weight off chair, lift lever up. To lower: While seated, lift lever up. * At the proper height, your feet should rest flat on the floor. 2.
