Summary of Contents for convenience concepts 121152

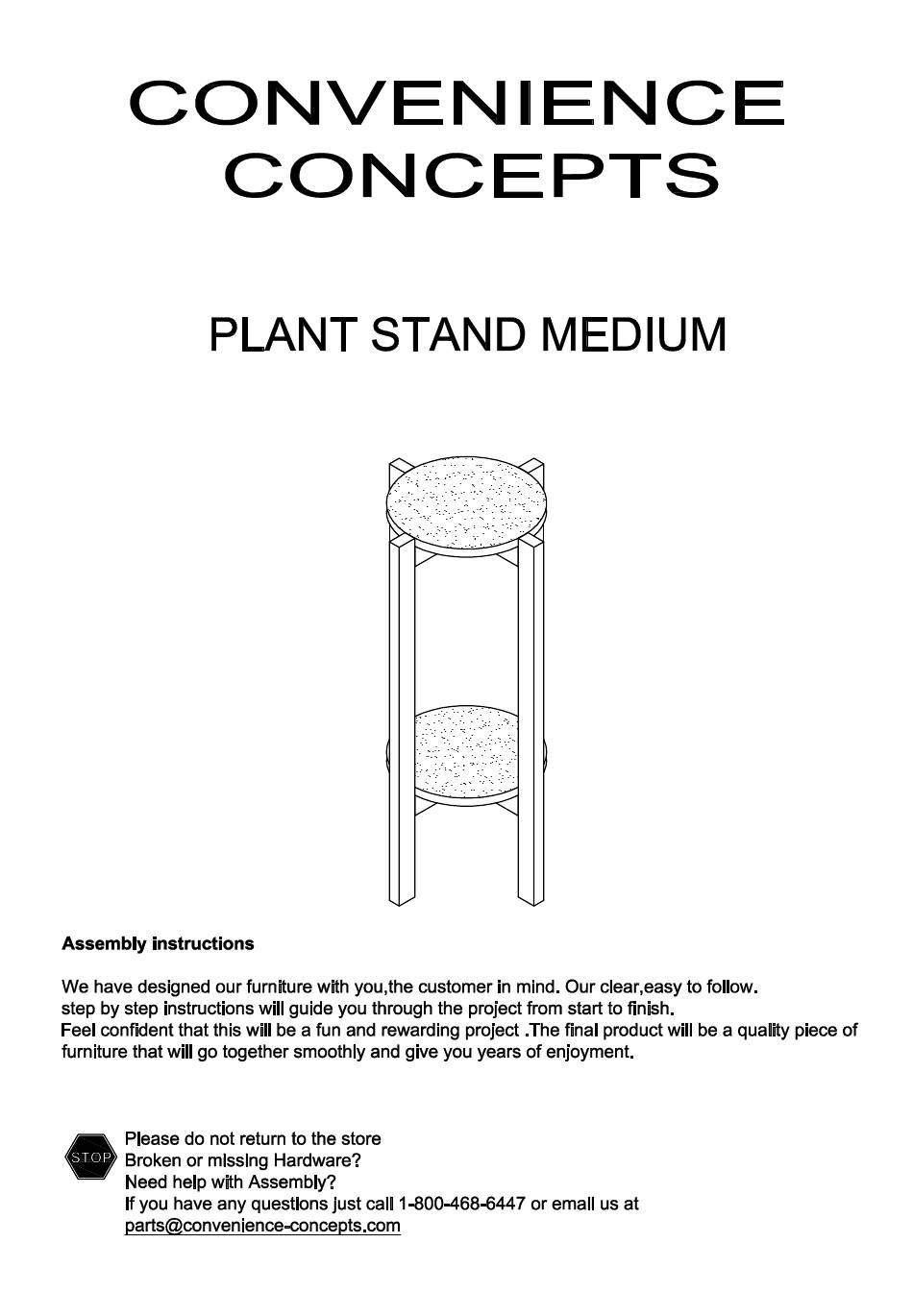

- Page 1 121152 REV 9/8/16...
- Page 2 PAGE 2 of 5 ITEM#:121152...
- Page 3 PAGE 3 OF 5 ITEM#:121152 24pcs Cambolt 24pcs Camlock ∅ Cover ∅ 24pcs Foot Tack 4pcs ∅ Anti-Tip Strap 197x5x1 12x12x1 2pcs Bracket Screw Ø4x25 Wall Screw Ø5x40 Ø8x40 Plastic Anchor Assembling the unit with camlocks and wood dowels. lightly glue dowel and...
- Page 4 Step1 PAGE: 4 of 5 1. Place upper crossbar (3) over lower crossbar (2) as shown. 2. Repeat step1 for second set of crossbars Step2 1. Screw cambolts (A) into shelf (4) 2. Attach shelf (4) to crossbars (2,3) using camlocks (B) and gently tighten in place.
- Page 5 Step3 PAGE: 5 of 5 *Special note– Make sure to attach both top and bottom shelf to leg before moving on to next leg* 1. Screw cambolts (A) into legs (1) as shown. 2. Attach legs (1) to both Top and Bottom shelf (4) assembles using camlocks (B) as shown.
