TOPSKY TV02.01 Manual

Electric height adjustable tv stand
Hide thumbs

Advertisement

Table of Contents

TOPSKY TV02.01
Electric Height
Adjustable TV Stand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TV02.01 and is the answer not in the manual?

Questions and answers

Summary of Contents for TOPSKY TV02.01

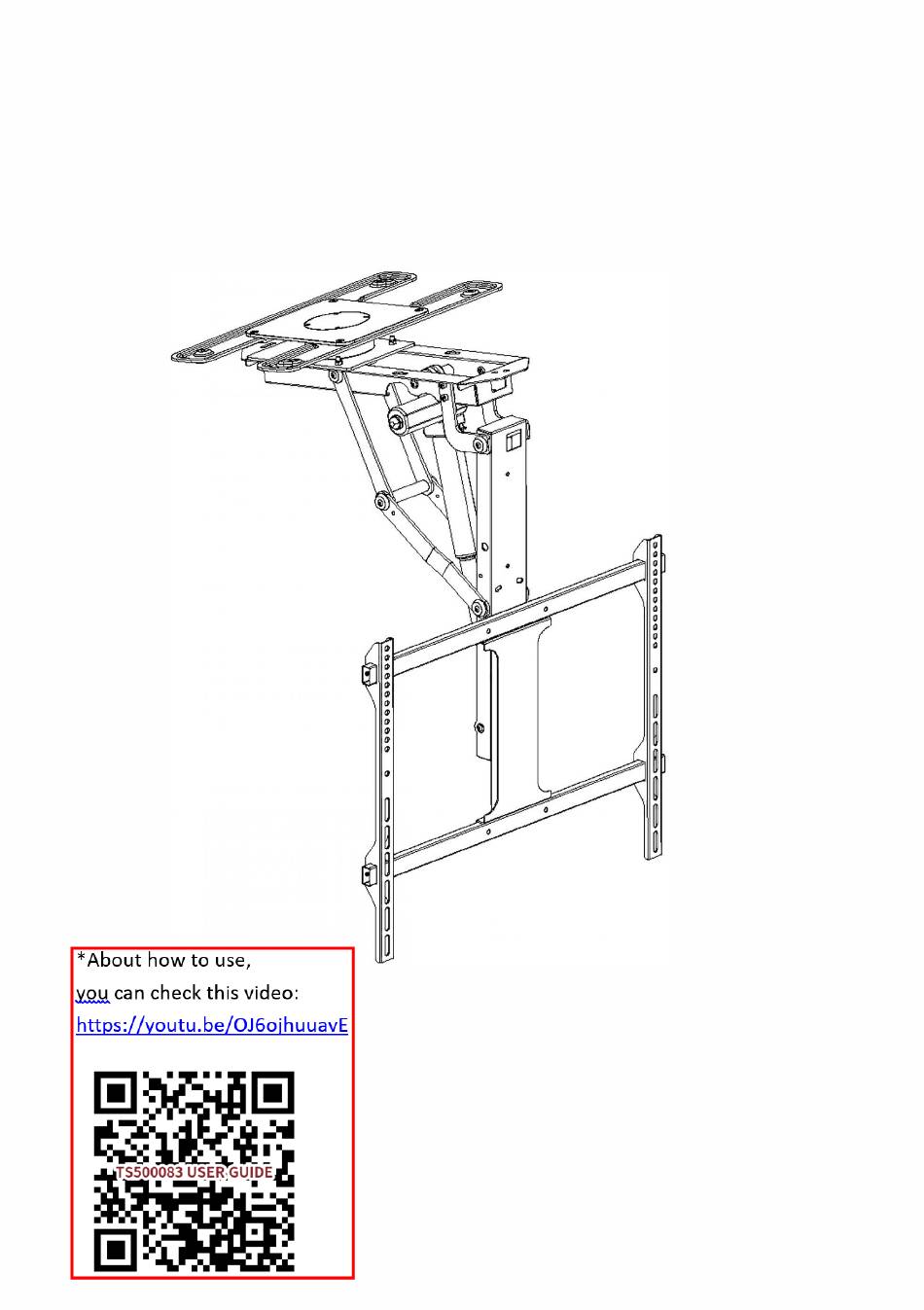

  • Page 1 TOPSKY TV02.01 Electric Height Adjustable TV Stand...
  • Page 2 *Download link： For iOS https://apps.apple.com/us/app/topsky-tv-mount/id6504976258 *Download link： For Android https://play.google.com/store/apps/details?id=com.okin.topsky...
  • Page 3 ● Device Connection • "SEARCH AGAIN" at the bottom of the device list is used to reopen the search. 2. • Only devices whose names start with TOPSKY can be searched. 3. • Entering the connection will look like the following.

  • Page 4: Running Mode

    ● Running Mode • Keep holding SET bottom for 10 seconds. If the running mode is set successfully, the control box will buzzing. And the TV stand can switch between automatic mode and touch moving mode. 2. • When in automatic mode, pressing and releasing a button will continue to send commands until the drive reaches the end of its retracted length.
  • Page 5 ● Top Prompt Box ● Help • If you have any questions, you can tap the "?" in the top right corner of the APP screen. And the following picture appears.

  • Page 6: Warranty

    If you ever have any inquiry's regarding whether or not your product is still under warranty/ how to buy extra part, paid service Just search and contact TOPSKY service team or call us.
  • Page 7 Caution Keep children and pets away from the electric height-adjustable desk during the operation. Unplug the power cord during a thunderstorm or if you do not intend to use the desk for a long time. Ensure no obstacles in the desk’s path and no object above and 20” under the desk. Working environment temperature 0-40 , keep products away from corrosive gas, ℃...

  • Page 8: Parts List

    Parts List A (x1) G (x1) B (x1) C (x1) Mount(Including G Controller) Controller Center Plate Celing Template D (x2) E (x2) F (x1) H (x4) VESA Bracket Bracket Rail AC Adapter Cable Tie I (x4) J (x4) K (x4) L (x4) M (x4) M6×16mm...
  • Page 9 Assembly STEP 1:Installing the Mount OPTION B: Concrete Ceiling OPTION A: Wood Ceiling Using Ceiling Template (C), mark exact location of Using Ceiling Template (C), mark exact location mounting holes. Drill pilot holes 2.4” deep, using a of mounting holes. Drill pilot holes 2.2” deep 10mm drill bit.
  • Page 10 Assembly STEP 2:Assembling VESA Components Assemble Bracket Rails (E) to Center Plate (C) using M6x30mm Screws (J), M6×16 Black Washer (K) and M6 Nuts (L). While holding M6 Nuts (L) with a wrench, use a Phillips screwdriver to tighten M6x30mm Screws (J). Slide VESA Brackets (D) onto Bracket Rails (E) and secure using M4x6mm Screws (M) and 5×80 Allen Wrench(P) .
  • Page 11 Assembly STEP 3:Mounting VESA Assembly OPTION A: Flat Back TV Align the VESA bracket assembly with the mounting holes in the back of the TV screen. Install assembly to TV using appropriate screws (N1, N2) and Square Washers (N6) according to your screen’s requirements. OPTION B: Curved/Recessed Back TV Align the VESA bracket assembly with the mounting holes in the back of the TV screen.
  • Page 12 Assembly STEP 4:Place TV on Mount Place the TV with VESA bracket assembly on Mount (A) by inserting the center screw on Center Plate (B) into the keyhole on Mount (A) at the desired height. Secure using other four M6×10 Screws(R) and tighten them. Clearance between the ceiling and top edge of TV should be no less than 15mm when TV is in the fully lowered position.
  • Page 13 Instruction ● Manual Reset • Press HOME bottom to reach the horizontal angle and rotate 0 degree position. • Keep holding HOME bottom for 10 seconds, the TV stand will automatically reset and return to the horizontal angle and rotate 0 degree position.
  • Page 14 Instruction ● Saving Position • Keep holding MEMORY button for 5 seconds, save the current fold angle and rotation angle. If the memory position is set successfully, the control box will buzzing. •Press MEMORY button to reach the set memory location. By using memory function, the TV stand can easily be programmed to preferred saving positions.

  • Page 15: Technical Data

    Technical Data Technical Data Item Data Input voltage 100~240V AC Output voltage 29V DC Max loading 490N /50KG / 110LBS Max TV size 75" Folding angle 0°~80° Turning angle -90°~+90° Duty cycle 2 min on/ 18 min off...
