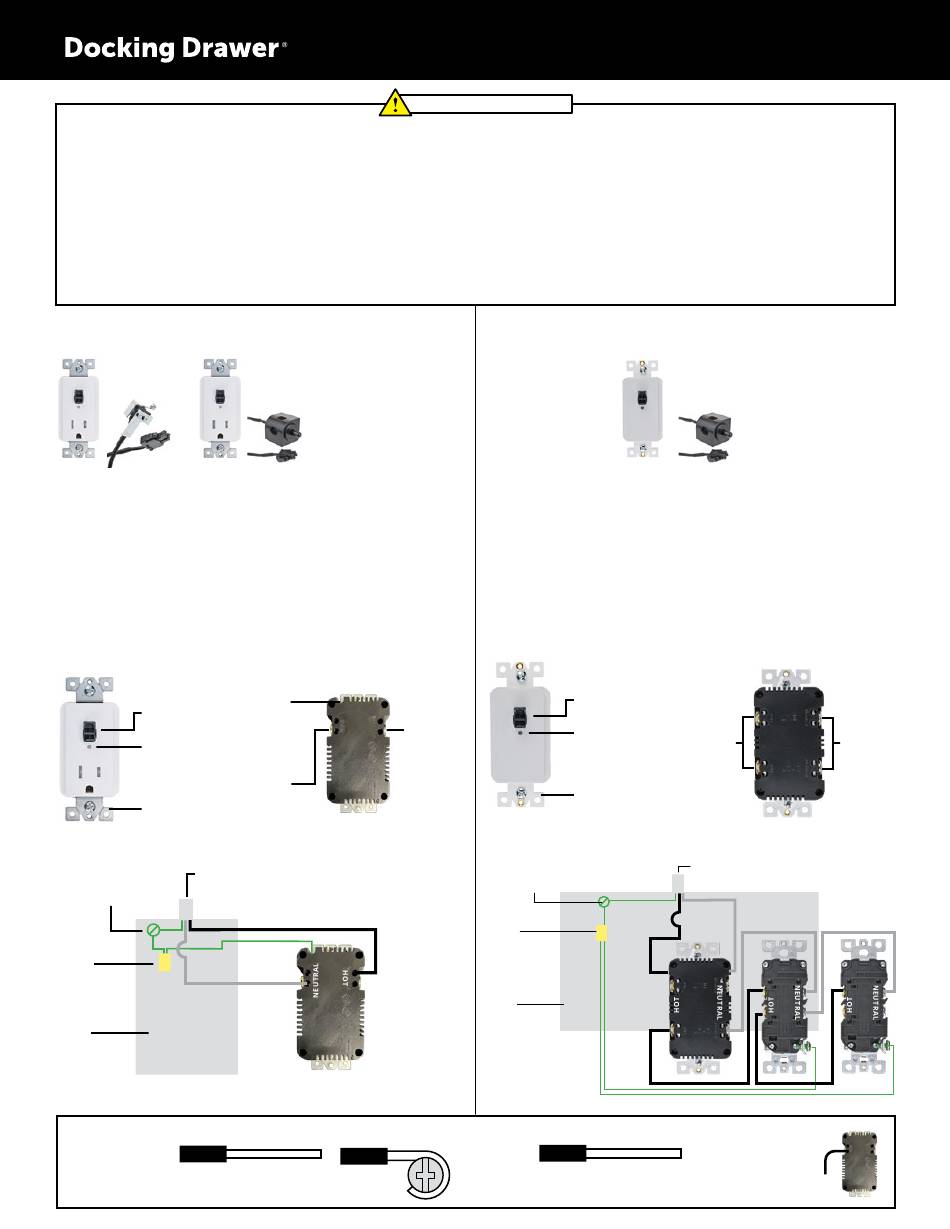

Docking Drawer 60 1000W Series Installation Instructions

To prevent severe shock or electrocution always turn
the power OFF at the service panel before working
with wiring.
Use this Safety Interlock Outlet or Safety Interlock
Disconnect with copper or copper-clad wire. Do not
use it with aluminum wire.
Do not install this Safety Interlock Outlet or Safety
Interlock Disconnect on a circuit that powers life
support equipment because if the outlet trips, it will
shut down the equipment.
Must be installed in accordance with national and
local electrical codes.
15 amp & 20 amp Safety Interlock Outlet Installation Instructions
WITH BLADE
LIMIT SWITCH
60XX-1000W
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE GETTING STARTED
1. What is an Interlock Outlet?
An interlock outlet is different from a conventional receptacle in that it requires
input from an external switch or sensor in order to supply power. The switch/
sensor can be a limit switch designed to work with Docking Drawer Blade Series
outlets, a Corner Mount Limit Switch, or a Side Mount Limit Switch. If the switch/
sensor is not connected, or if it is not detecting a safe condition, there will be no
power supplied to the receptacle and a red LED will illuminate on the front of
the unit. When the switch/sensor is satisfied, power is supplied and a green LED
illuminates.
2. Interlock Outlet Anatomy
Front View
INTERLOCK
SWITCH
CONNECTOR
LED INDICATOR
MOUNTING
BRACKET
3. Connect the wires in the following manner:
GROUNDING LINE CABLE brings power to
CONNECTION TO BOX the Safety Interlock Outlet
(if box has a grounding
terminal)
GREEN/BARE
WIRE
CONNECTOR
SINGLE GANG
ELECTRICAL
BOX
Note: Only the Receptacle on the Safety Interlock Outlet will be de-energized
SIDE WIRE
About Wire
Connections:
Safety Interlock Outlet & Safety Interlock Disconnect
CAUTION – READ CAREFULLY
Should you install it?
Installing an interlock outlet or disconnect can be more
complicated than installing a conventional receptacle.
Make sure that you:
• Understand basic wiring principles and techniques
• Can interpret wiring diagrams
• Have circuit wiring experience
• Are prepared to take a few minutes to test your work,
making sure that you have wired the outlet correctly
and that it works as intended.
If you aren't completely comfortable with the above,
please consult a licensed electrician.
WITH CORNER
MOUNT LIMIT
SWITCH
60XX-2001X
Back View
GROUND
Green
Terminal
HOT (LINE)
Green or Bare
Brass
Copper Wire
Terminal
Black wire
NEUTRAL
Silver
Terminal
White wire
BLACK
WHITE
3/4" (1.9cm) FOR SIDE WIRE:
Installation Instructions
Before you start, turn the power off
Plug in an electrical device such as a lamp or hair
dryer into the receptacle on which you are working.
Turn the lamp or hair dryer ON. Then go to the
service panel and find the breaker that protects that
receptacle. Place the breaker in the off position and
mark it with something to let others know not to turn
it back on. The lamp or hair dryer should turn off if
you have the correct breaker selected. Next, plug the
electrical device into the other receptacle to make
sure the power is off at BOTH receptacles. If the
power is not off, call an electrician to complete the
installation.
Safety Interlock Disconnect Installation Instructions
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE GETTING STARTED
1. What is an Interlock Disconnect?
An interlock disconnect removes power from anything connected to the load
side of the disconnect when it gets the appropriate signal from a Docking
Drawer Blade Series limit switch, a Corner Mount Limit Switch, or a Fire Guard
smoke and heat sensor. If the switch/sensor is not connected, or if it is not
detecting a safe condition, there will be no power supplied to the receptacle
and a red LED will illuminate on the front of the unit. When the switch/sensor is
satisfied, power is supplied and a green LED illuminates.
2. Interlock Disconnect Anatomy
Front View
INTERLOCK
SWITCH
CONNECTOR
LED INDICATOR
MOUNTING
BRACKET
3. Connect the wires in the following manner:
GROUNDING
CONNECTION TO BOX
(if box has a grounding
terminal)
GREEN/BARE
WIRE
CONNECTOR
DOUBLE OR
TRIPLE GANG
ELECTRICAL
BOX
BACK WIRE 5/8" (1.6cm)
Loop clockwise
2/3 of the way
around screw
WITH CORNER
MOUNT LIMIT
SWITCH
6120-2001X
Back View
LINE
HOT (LINE)
Brass
Terminal
LOAD
Black wire
LINE CABLE brings power to the
Safety Interlock Disconnect
WHITE
Safety Interlock
BLACK
2 AC Outlet
Disconnect
LINE LINE
LOAD LOAD
FOR BACK WIRE:
Insert bare wire fully and
tighten terminal clamp
on conductor ONLY
NEUTRAL
Silver
Terminal
White wire
2 AC Outlet
LINE
LOAD
