AEONS Technologies B08RJ7W2ST Owner's Manual

OWNER'S MANUAL: SBC Wall Mount Swing Gate Rack Series Assembly

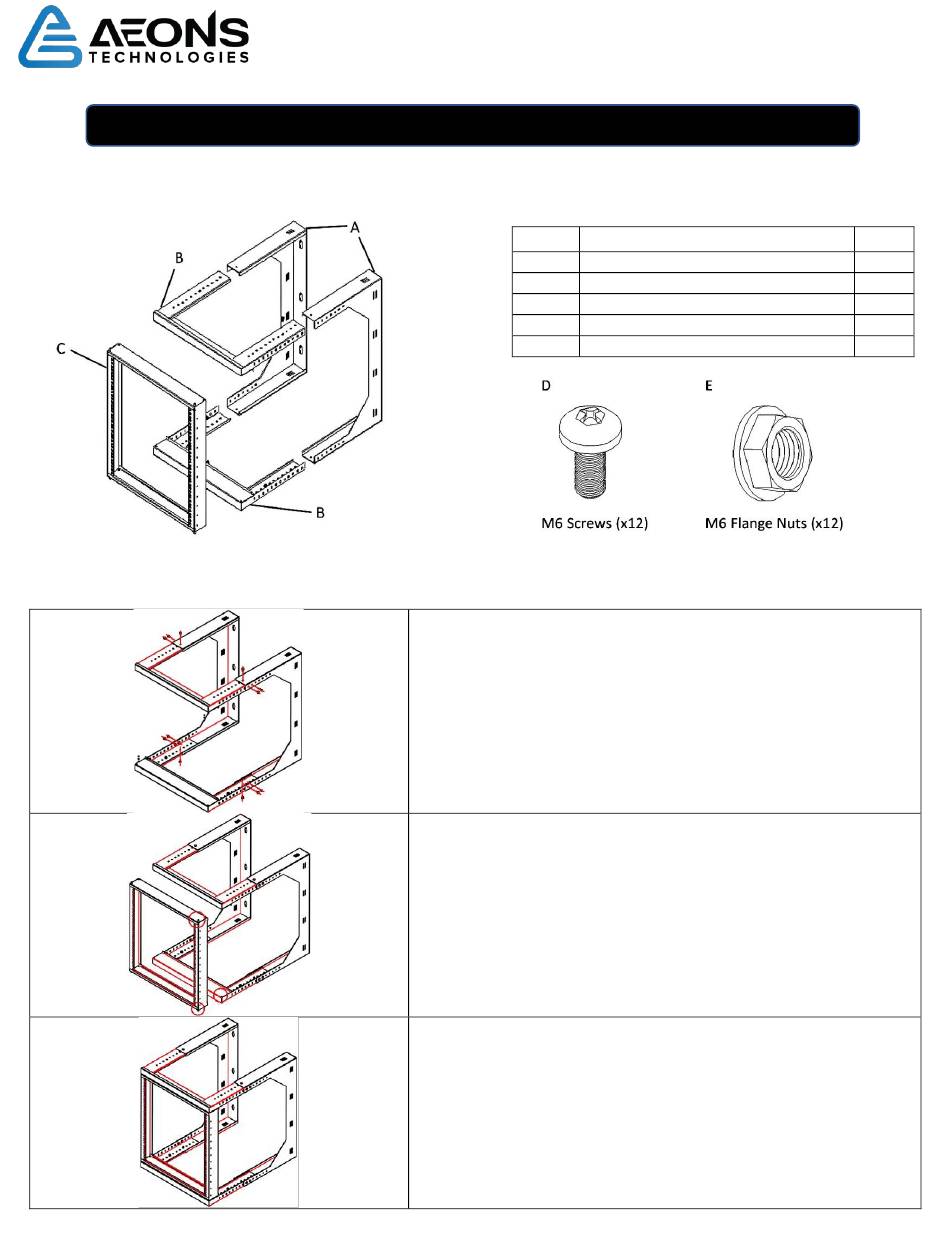

1. Parts Identification
2. Rack Assembly
Assembly
Item
A Wall mounting frame
B Depth adjustable transverse support
C Swing frame
D M6 Screws
E M6 flange nuts
STEP 1:
Secure the 2 wall mounting frames (A) and 2 depth
adjustable transverse supports (B) using 12 M6 large flat
head screws (D) and 12 M6 flange nuts (E) as shown in the
figure.
STEP 2:
Secure the swing frame (C) to the built frame by inserting the
bolt on the swing frame into the corresponding hole.
Assembly complete
aeonstech.com
support@aeonstech.com
Description Qty
2
2
1
12
12
