NATHAN JAMES Kai 15204 Manual

Wall light
Hide thumbs

Advertisement

Table of Contents

Let's build the
Kai Wall Light
SKU 15204
35
Scan me!
Free Lifetime
Warranty
23-0612-CN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kai 15204 and is the answer not in the manual?

Questions and answers

Summary of Contents for NATHAN JAMES Kai 15204

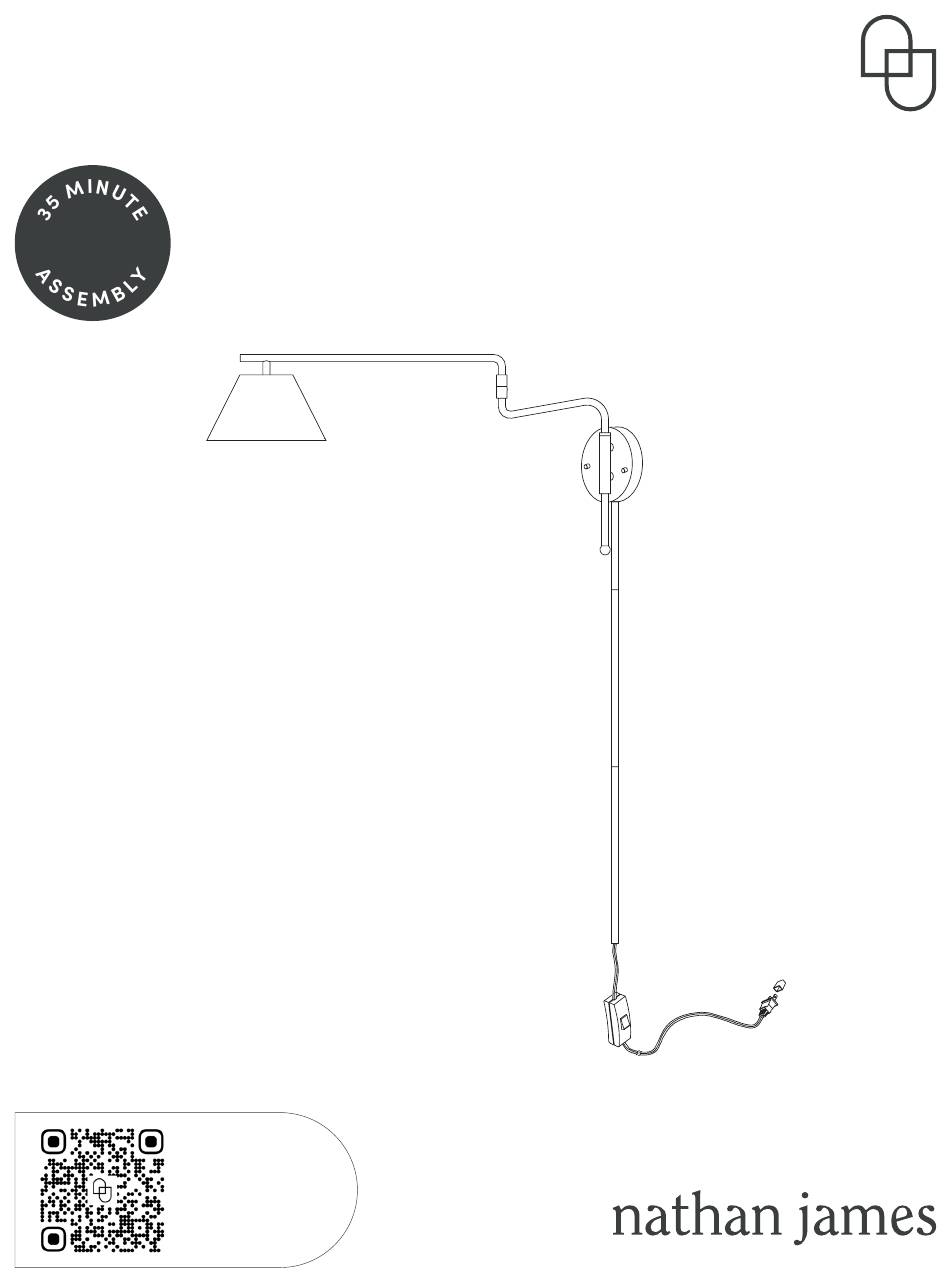

  • Page 1 Let’s build the Kai Wall Light SKU 15204 Scan me! Free Lifetime Warranty 23-0612-CN...

  • Page 2: What's Included

    Ok, let’s What’s included get rolling Description Fixture Shade This should be easy, just follow our instructions and you will be Stem (6”) back to Netflix in no time. Stem (12”) Stem (12”) Estimated time for assembly Decorative Fixture Stem 35:00 Mounting Plate Finial Nuts...

  • Page 3: Proper Use

    Nathan James will not be responsible for. Nathan James and its parent companies cannot be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.
  • Page 4 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.

  • Page 5: Pre-Installation

    Pre-Installation • Read all instructions prior to beginning assembly. • To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. • Keep the receipt and these instructions for proof of purchase. • Suggested Bulb: A19 LED 60 Watt Equivalent | E26 Medium Base | Dimmable •...
  • Page 6 Step 2 You’ve successfully cleared the path by removing the mounting unit. Now, behold the wire compartment! Carefully raise the flap on the Clear(Neutral) White wire connector to release the clear wire. Repeat this step on the second connect so that both clear wires have been removed and the black and white wires remain attached...
  • Page 7 Step 4 Now comes the fun part: deciding 6” cord: how tall your fixture should be. You have the power to choose the perfect 12” cord: length by mixing and matching various 18” cord: Stem lengths or leaving some out completely.
  • Page 8 Step 5 Take the wires and guide them back through the hole at the bottom of the Fixture (1) - it’s like threading a needle. Step 6 Time to tie a knot and secure those wires like a pro! Inside the electrical compartment create a knot that will hold the wires securely in place.
  • Page 9 Step 7 To proceed, open the flaps once again. Insert the clear neutral wire alongside the white wire. Place the hot wire (marked with an L) next to the black wire.
  • Page 10 Step 8 Position the Decorative Fixture Stem (6) under the front of the Fixture (1) so that they align properly. Rotate the Decorative Fixture Stem (6) in a counter-clockwise direction to secure it to the Fixture (1). Next, attach the M10*25mm Thread Insert (L) to the first Stem over the cord.
  • Page 11 Step 9 Now, it’s time to bring all the Stems together in perfect harmony! Let’s start from the top. Hold onto the first tube that’s already connected and get ready to attach the second one. Carefully rotate the second Stem counterclockwise onto the first one, just like fitting puzzle pieces together.
  • Page 12 Step 10 With Mounting Unit (G) as a guide, use a level and pencil to mark within the keyholes where you want it on the wall. Step 11 Using a drill, the proper drill bit, and the reference marks from the previous step, drill 3 holes into the wall.
  • Page 13 Step 13 To attach the Mounting Unit (G) to the wall, you can use either the K or E Screws, depending on the type of wall. Important note: E for Non-drywall anchors K for Drywall anchors Step 14 Attach Fixture (1) to Mounting Unit (G).

  • Page 14: Troubleshooting

    Step 15 Install the Shade (2) by setting it in place with the shade collar fitting that you removed in step 14. Thread the collar fitting back onto the socket with the shade sandwiched between the collar fitting and socket. Next, screw in your light bulb.
  • Page 15 Hardwired The following steps 1–8 are intended for hardwire mounting to your existing electrical box. Skip back to page 5 for directions option on how to mount this light on your wall as a plug-in light. Step 1 Let’s get this thing fired up! Or should we say, lit? Separate the Fixture (1) from the Mounting Unit (G) by...
  • Page 16 Step 2 Carefully raise the flap on the wire connector to release the clear wire. Repeat this step on the second connect so that both clear wires have been removed and the black and white wires remain attached to the Fixture (1). Once the wires have been disconnected, prepare yourself for the grand...
  • Page 17 Step 4 Insert the Plastic Cap (I) into the bottom of the Fixture to cap off the hole. Twist on the Decorative Fixture Stem (6) to the bottom of the Fixture.
  • Page 18 Step 5 Mount the Mounting Plate (A) to the electrical box using the Mounting Screws M4*25mm (C). Note: Be sure that you are only making the connections to a 120V 60Hz AC circuit. If you do not have a pre- existing electrical box, we strongly advise using a certified electrician.
  • Page 19 Step 6 First, wrap the ground wire from the Fixture (1) around the grounding screw on the Mounting Plate (A) and then secure it in place by tightening the grounding screw. Next, use the Wire Nut (D) to join the ground wires from the Fixture (1) and from the electrical box.
  • Page 20 Step 7 Feed the designated wires into their respective wire connectors, as shown below. Attach Fixture (1) to the Mounting Unit (A). Align the holes on the Fixture with the exposed screws. Tighten them securely using the Finial Nuts (B). Turn the Finial Nuts (B) in a counter-clockwise direction.
  • Page 21 Step 8 Install the Shade (2) by setting it in place with the shade collar fitting. Thread the collar fitting back onto the socket with the shade sandwiched between the collar fitting and socket. Next, screw in your light bulb. We recommend using one Type A19 light bulb.
  • Page 22 Questions? Don’t worry, we’ve got the answers What other light bulbs can fit in this light? Is this light compatible outside North America? The bulb must not be greater than the max wattage for the fixture. It must match the base Our lighting is only warranted in Canada and size, and the diameter of any area of the bulb the United States.
  • Page 23 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
  • Page 24 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
