Adjustable
Dial Face
0.040"
0.080"
0.120"
Dovetail stems:
SPECIFICATIONS
0511-2001

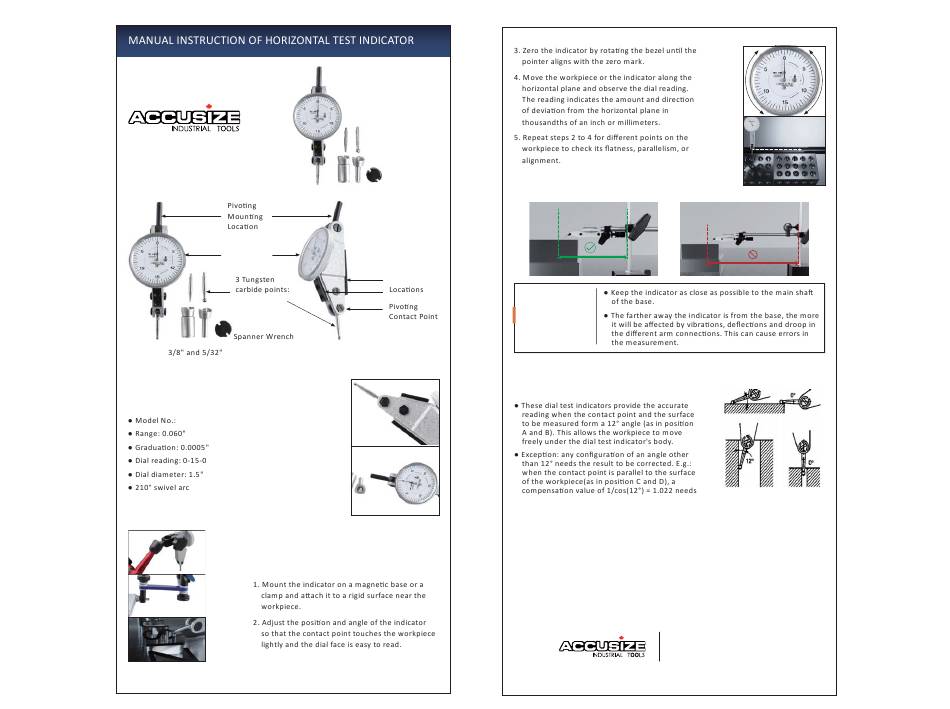

TO USE THE INDICATOR, FOLLOW
THESE STEPS
Product No: 0511-2001
Two-dovetail
DURING SETUP
TEST INDICATOR-EXTENDED
RANGE INSTRUCTIONS
to be added:
Meas.Value = Reading Value x 1.022
A
C
B
D
Be noted that it is difficult to align the
stylus at 12°, so the measured value can
only be an approximation.
Accusize Industrial Tools
Tel: 1-888-668-0012
www.accusizetools.com
