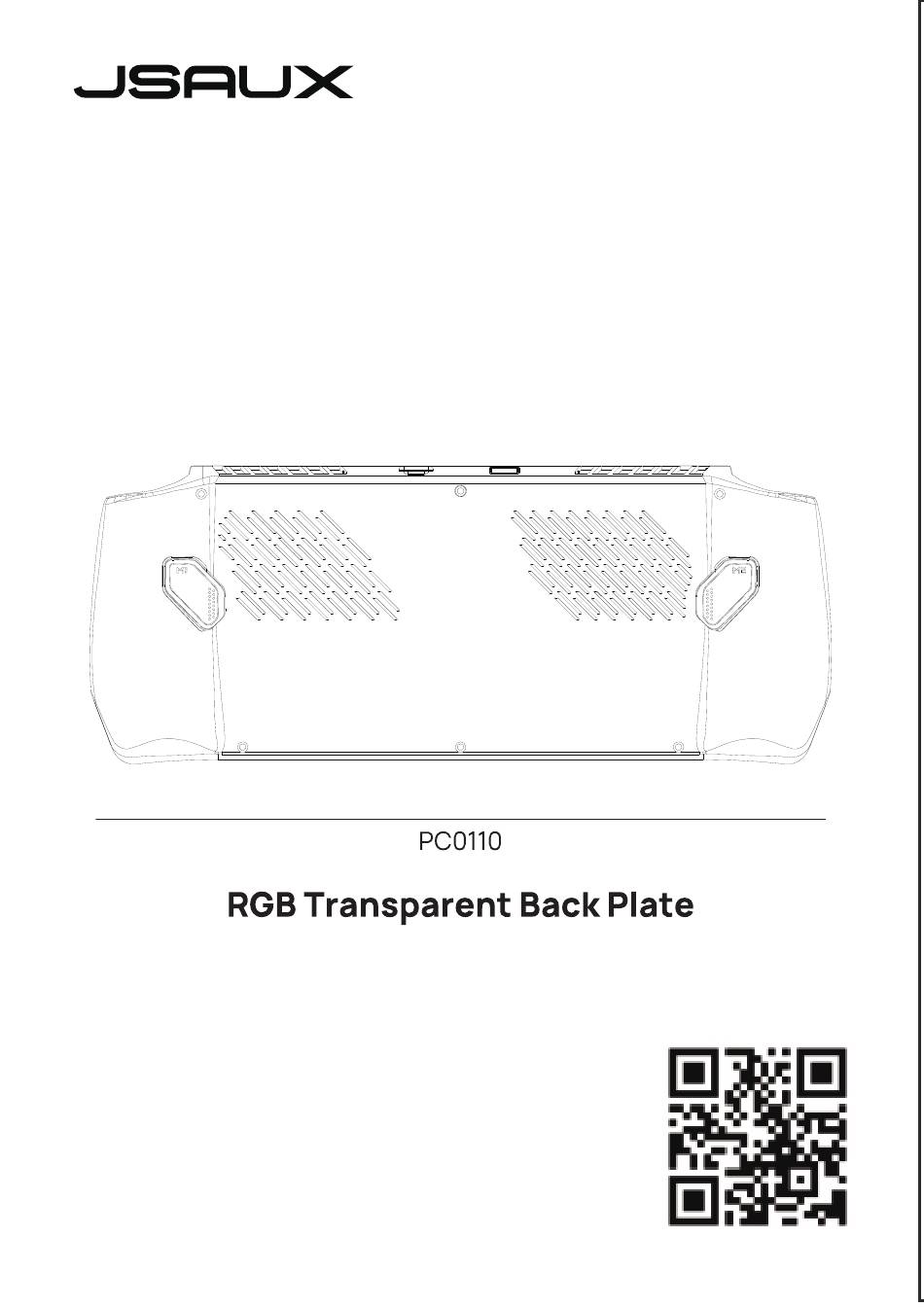

- Page 4 ＰＣ０１１０ Ｉｎｓｔａｌｌａｔｉｏｎ Ｔｕｔｏｒｉａｌ The ROG Ally will automatically go into a power-down state after removing the back case, and will need to be activated by connecting the charger to power up after reinstalling the back case. Be sure to cover the light sensor inside the console before using the clear back case, otherwise the console will not turn on.
- Page 5 Removing the original back cover 1. Please refer to the steps in the disassembly notes, turn off the console and check the accessories in the package; PC0110 Circuit Board PC0110 Circuit Board Holder Keystrokes PC0110 Back Cover Screwdrivers Mitten Cotton swab...
- Page 6 buttons on the original back cover;...
- Page 8 Installation of PC0110 1. First, confirm that the PC0110 product can be normally powered on and used; 2. Install the back button and left and right triggers removed from the original back cover on the PC0110 back cover;...
- Page 12 3. Attach the supplied masking foam to the surface of the game console's photoconductor;...
- Page 13 4. Attach the included PVC sticker to the battery surface on the inside of the console; 5. Install the PC0110's RGB module inside the console, installing the bottom snaps first, making sure the small notches at the top are aligned with the console;...
- Page 14 6. Attach the back cover to the console and press to fasten the clips around it;...
- Page 15 7. Install the rear cover screws; 8. The game console is plugged into the power supply and turned on for use;...
- Page 16 Replacing the RGB display pattern 1. Remove the back cover; 2. Remove the bracket that holds the motherboard, which is secured through holes in the screw posts of the back cover; 3. Tear off the graphic sheet from the front of the holder;...
- Page 17 4. Paste a new graphic piece;...
- Page 18 5. Re-secure the bracket; 6. Just install the back cover. Product Use 1. Long press the power button 2S to switch the light effect on and off; 2. Pressing the power button after powering on the product can switch the light effects, and the product has a total of 5 built-in light effects;...
