MAXXHAUL 70225 QUICK ASSEMBLE GUIDE

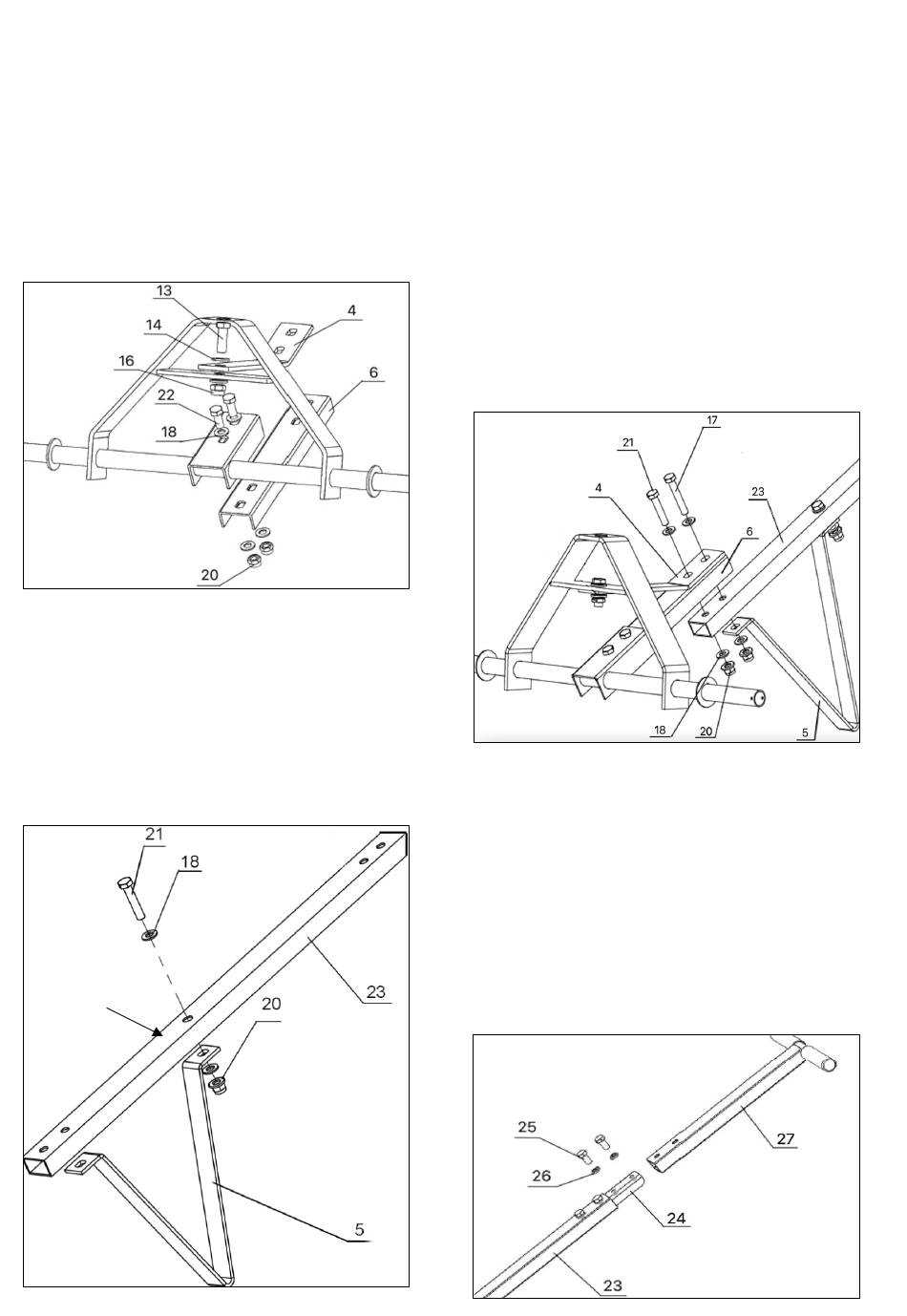

STEP 1
Set out the Support Frame (3), connect Handle
Bracket I (6) to center bracket of Support Frame (3)
using Bolts (22), Flat Washers (18), and Nuts (20).
Then Connect longer part of Link Bar (4) to
horizontal cross brace of Support Frame with Bolt
(13), Washers (14) and Nut (16).
STEP 2
Place the Lower Section Handle (23) with the
side having three holes facing downward. Position
Triangle Stand (5) underneath the Lower Section
Handle (23), align the upper side hole of Triangle
Stand (5) and the upper hole of Lower Section
Handle (23), and secure them first using a Bolt (21),
Flat Washers (18) and Nut (20).
Side with 5 holes
facing upward
STEP 3
Understand how lower end of Handle (23) fits
inside Handle Bracket I (6).
Align the holes of Link Bar (4), Handle Bracket I (6)
and Lower Section Handle (23). Insert a Bolt (21)
through all lower holes and secure with a Washers
(18) and Nut (20).
Align another group holes of Link Bar (4), Handle
Bracket I (6) and Lower Section Handle (23), and
lower side hole of Triangle Stand (5), Insert a Bolt
(17) through the above holes and secure with
Washers (18) and Nut (20).
STEP 4
Place the Handle Bracket II (24) with the
opening of U-shape facing downward. Slide it
into the Lower Section Handle (23), align the
holes and secure them with two Bolts (25) and
Spring Washers (26).
Slide the open end of the Upper Section Handle
(27) onto the upper end of the Handle Bracket II
(24), align the holes and secure them with two
Bolts (25) and Spring Washers (26).
