Summary of Contents for Hoteche P800517A

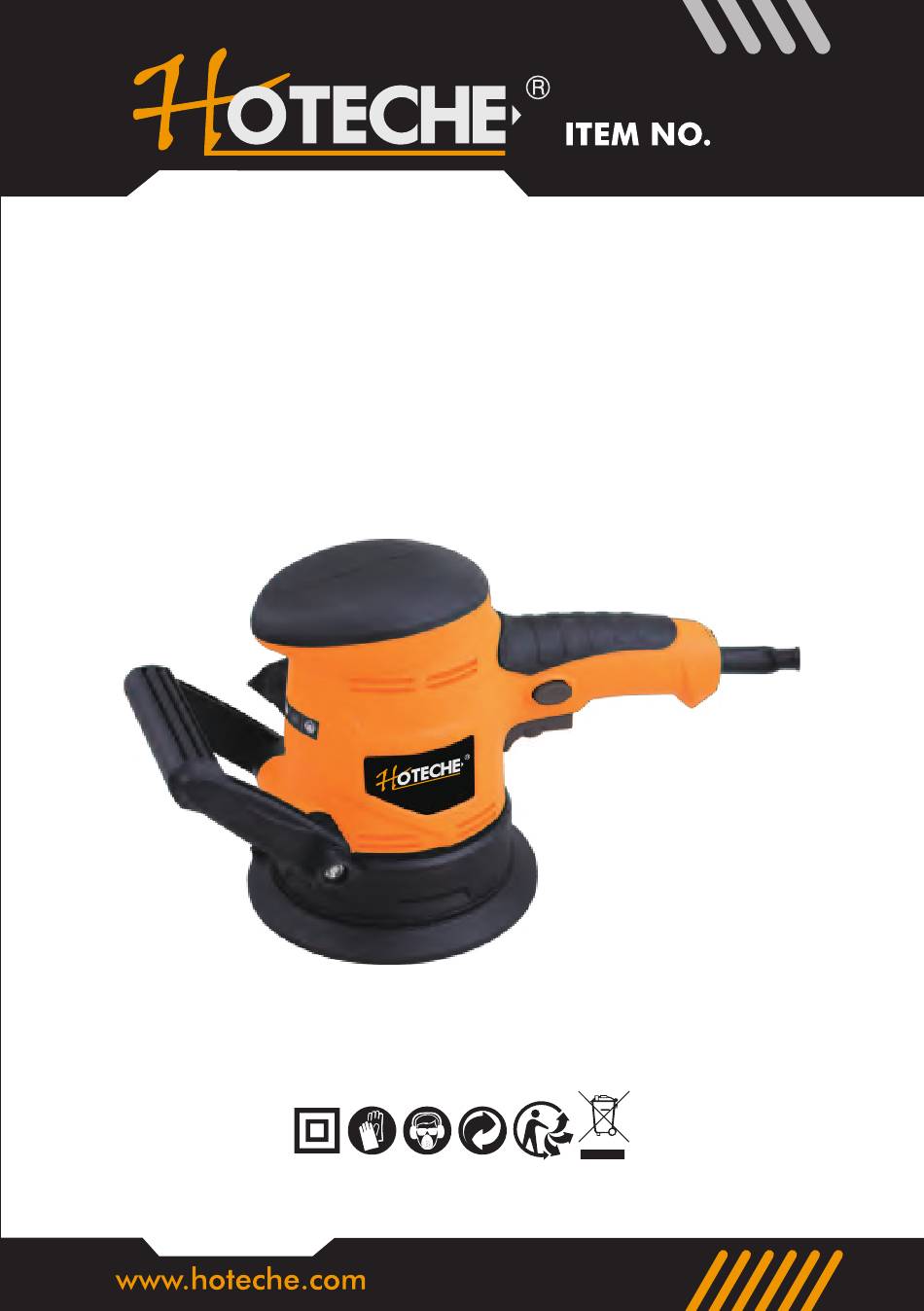

- Page 1 SINCE 1995 P800517A 3.8A(450W) ROTARY SANDER...
- Page 3 KEY TO PRODUCT SAFETY SIGNS Before use, read the handbook carefully GB - Waste electrical and electronic equipment (WEEE), should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. BG - Отпадъците...
- Page 5 (6.1) (6.2) Conservare questo manuale d’istruzioni per poterlo consultare in futuro Conservare questo manuale d’istruzioni per poterlo consultare in futuro (GB) Not contractually binding photographs - Preserve this handbook for future reference Preserve this handbook for future reference Conserver le présent manuel pour pouvoir le consulter ultérieurement Conserver le présent manuel pour pouvoir le consulter ultérieurement Diese Bedienungsanleitung für späteres Nachschlagen sorgfältig aufbewahren Diese Bedienungsanleitung für späteres Nachschlagen sorgfältig aufbewahren...
-
Page 6: Certificate Of Guarantee
INTRODUCTION Thankyou for purchasing this product which has passed through our extensive quality assurance process. Every care has been taken to ensure that it reaches you in perfect condition. However, in the unlikely event that you should experience a problem, or if we can offer any assistance or advice please do not hesitate to contact our customer care department. For details of your nearest customer care department please refer to the telephone numbers at the back of this manual. -
Page 7: Electrical Information
ELECTRICAL INFORMATION CONNECTION OF THE MAINS PLUG Important! The wires in the mains lead fitted to this product are coloured in accordance with the following code: Brown: Live (L) or Red Blue: Neutral (N) or Black THIS PRODUCT IS DOUBLE INSULATED AND THEREFORE DOES NOT REQUIRE A CONNECTION TO EARTH. -
Page 8: Work Environment
GENERAL SAFETY INSTRUCTIONS intended; for example do not use a circular saw to cut tree limbs or logs. Before attempting to operate this machine, it is important that you read, understand and follow PERSONAL SAFETY these instructions very carefully. They are designed for the safety of yourself and others CLOTHING ensuring a long and trouble free service life... - Page 9 SECURE THE WORK PIECE Always unwind any extension cords fully. Wherever possible secure the work piece using For extension cords upto 15 metres use a wire clamps or a vice. cross section of 1.5mm2 . t is safer than using your hand and leaves both For extension cords over 15 metres but less hands free to control the power tool.
- Page 10 Repairs should only be carried out by qualified when changing accessories. persons using original spare parts. Failure to do Ensure that the holes in the sanding disc align so may result in considerable danger to the with the holes in the machine sanding pad user.
- Page 11 1 On/Off switch C - PRE-SELECTED VARIABLE SPEED On/Off switch speed can be changed while the motor is run- 1.1 Lock button ning but not while the sanding pad is in contact The tool is equipped with an electronic rotary 2 Variable speed rotary dial Variable speed rotary dial with the work piece.
- Page 12 Technical data Voltage 110-120V ~ 50/60 Hz Motor power 3.8A(450 W) No load orbit per minute 7000-14000 min Diameter of discs ø125 mm Hand arm vibration 4,596 m/s (K = 1,5 m/s Sound pressure level LPA 81,7 dB(A) K = 3,0 dB(A) Sound power level LWA 92,7 dB(A) K = 3,0 dB(A)
-
Page 14: Parts List
PARTS LIST Serial Nr. Description Remark Q’ty Screw Dust Collection Circle Tapping Screw Spring Washer Sanding Paper Foam Pad Spring Wahser Washer Bearing Cover Bearing Lock Spring Aluminum Fan Bearing Stator Rotor Carbon Brush Holder Carbon Brush Carbon Brush Cover Bearing Partial Cover of Left Housing Left Housing...
