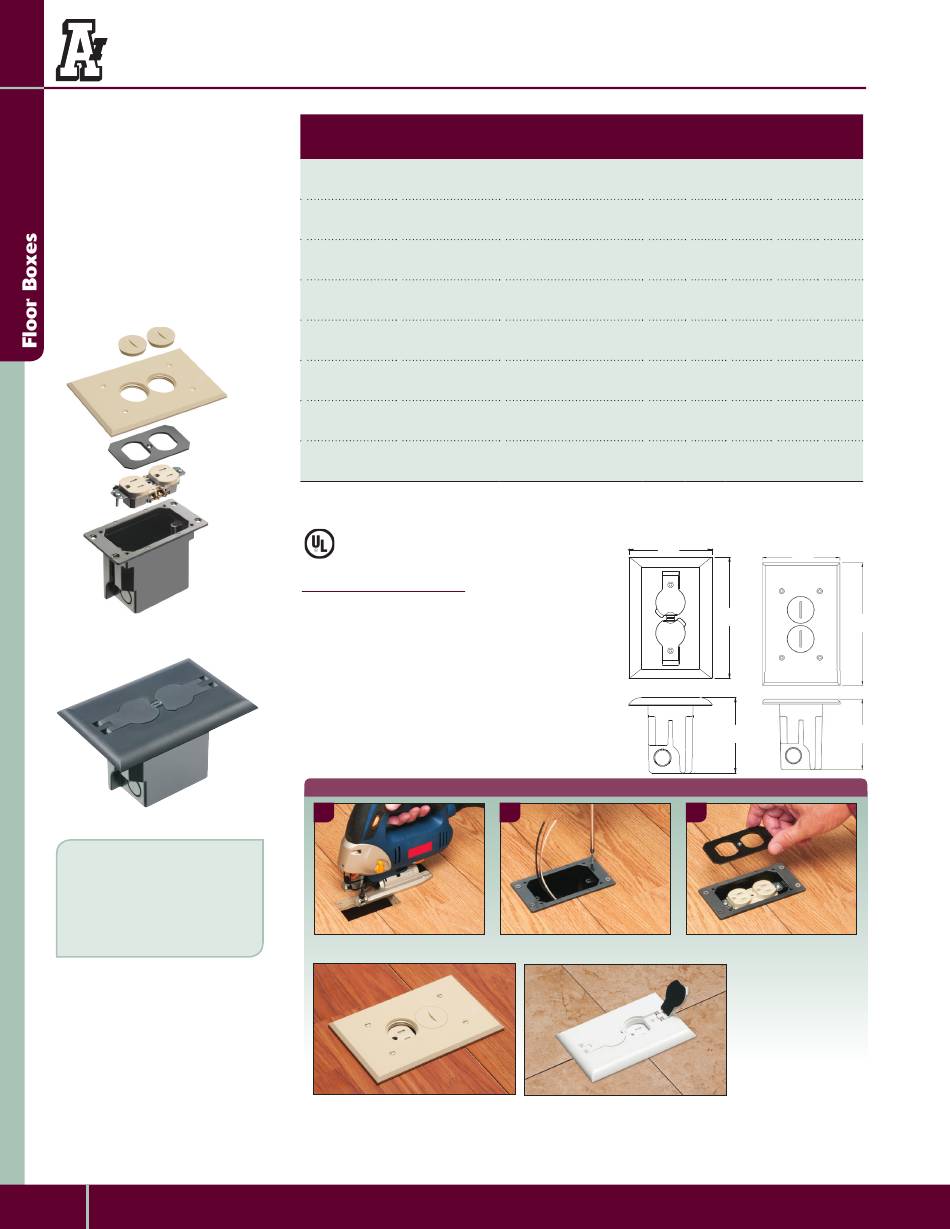

Arlington FLBR101W Manual

Arlington
Non-Metallic Floor
Boxes with
Non-Metallic Covers
for Existing Floors
UL Listed, low cost way to put
a receptacle in an existing floor.
Oversized rectangular cover - with
threaded plugs or flip lids - hides
miscut flooring.
FLBR101LA
FLBRF101BL
Includes: Floor box, duplex
receptacle, (1) NM94 connector,
back plate, gasketed cover, (5)
#6-32 cover plate screws and
threaded plugs or flip lids
P-5
www.aifittings.com
CATALOG UPC/DCI/NAED
NUMBER MFG #018997
FLBR101W 04356
FLBR101LA 04357
FLBR101BR 04359
FLBR101BL 04358
FLBRF101W 16253
FLBRF101LA 16252
FLBRF101BR 16251
FLBRF101BL 16250
See P-4 for a QR code to view our Floor Box video.
PATENTED.
E170558
FEATURES AND BENEFITS
• Low-cost non-metallic boxes with gasketed
box covers in four decorator colors
• Cover gasket prevents water intrusion
• Threaded plugs or flip lids protect
receptacle when not in use
• Oversized covers hide miscut flooring
1
Finished Installation
FLBR101LA
Email: sales@aifittings.com
UNIT
DESCRIPTION
PKG
Rectangular w/Threaded
1
Plugs, White
Rectangular w/Threaded
1
Plugs, Light Almond
Rectangular w/Threaded
1
Plugs, Brown
Rectangular w/Threaded
1
Plugs, Black
Rectangular w/Flip Lids,
1
White
Rectangular w/Flip Lids,
1
Light Almond
Rectangular w/Flip Lids,
1
Brown
Rectangular w/Flip Lids,
1
Black
A
Installation Instructions
2
FLBRF101W
Tel: (800) 233-4717
STD DIM DIM DIM
PKG A B C
4 4.125 6.500 3.738
4 4.125 6.500 3.738
4 4.125 6.500 3.738
4 4.125 6.500 3.738
4 4.100 5.970 3.738
4 4.100 5.970 3.738
4 4.100 5.970 3.738
4 4.100 5.970 3.738
A
B
B
C C
3
