Achim Home Furnishings CSTD33WH06 Manual

Top Down Cordless Honeycomb Cellular Shades

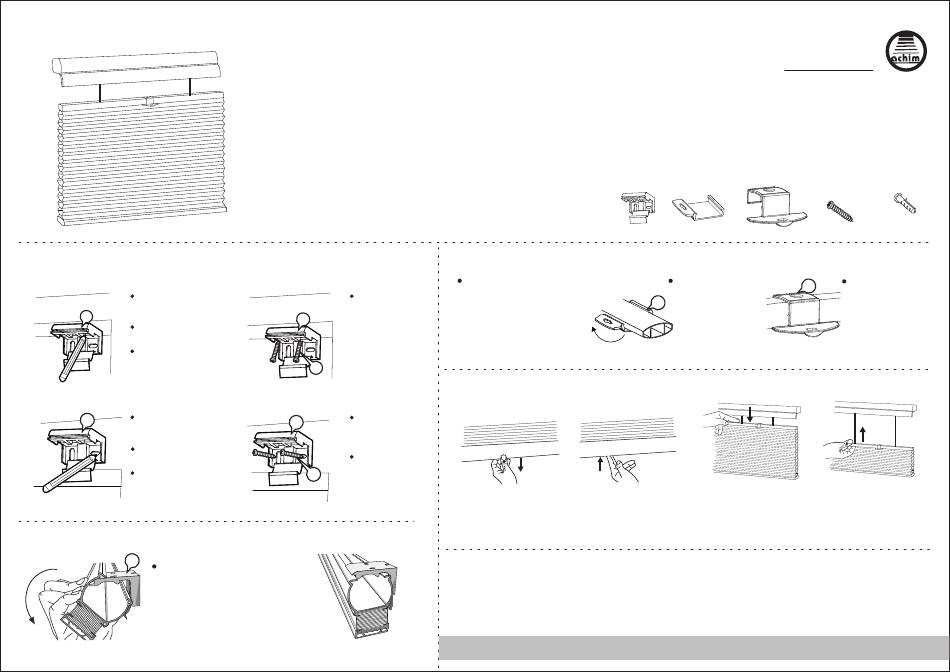

step 1. installing the brackets
inside mount
Pencil mark the mounting
a.
screw holes at the top of
the bracket.
A1
Drill holes at the pencil-
marked locations.
Position the brackets near
each end of the head rail.
outside mount
a.
Pencil mark the mounting
A1
screw holes at the back of
the bracket.
Drill holes at the pencil-
marked locations.
Use level at top of brackets
to ensure straight
alignment. Shade needs to
be level for proper
operation.
step 2. installing the shade
A1
a.
Insert the flange of the top rail onto
the top of the bracket as shown in
the drawing then snap-in the rear
part of the rail onto the tab of the
bracket in a twisting motion.
Note: 1. Avoid placing brackets over the spring box or cord pulleys.
2. When installing brackets make sure the brackets do not catch the shade cord(s) against the head rail.
