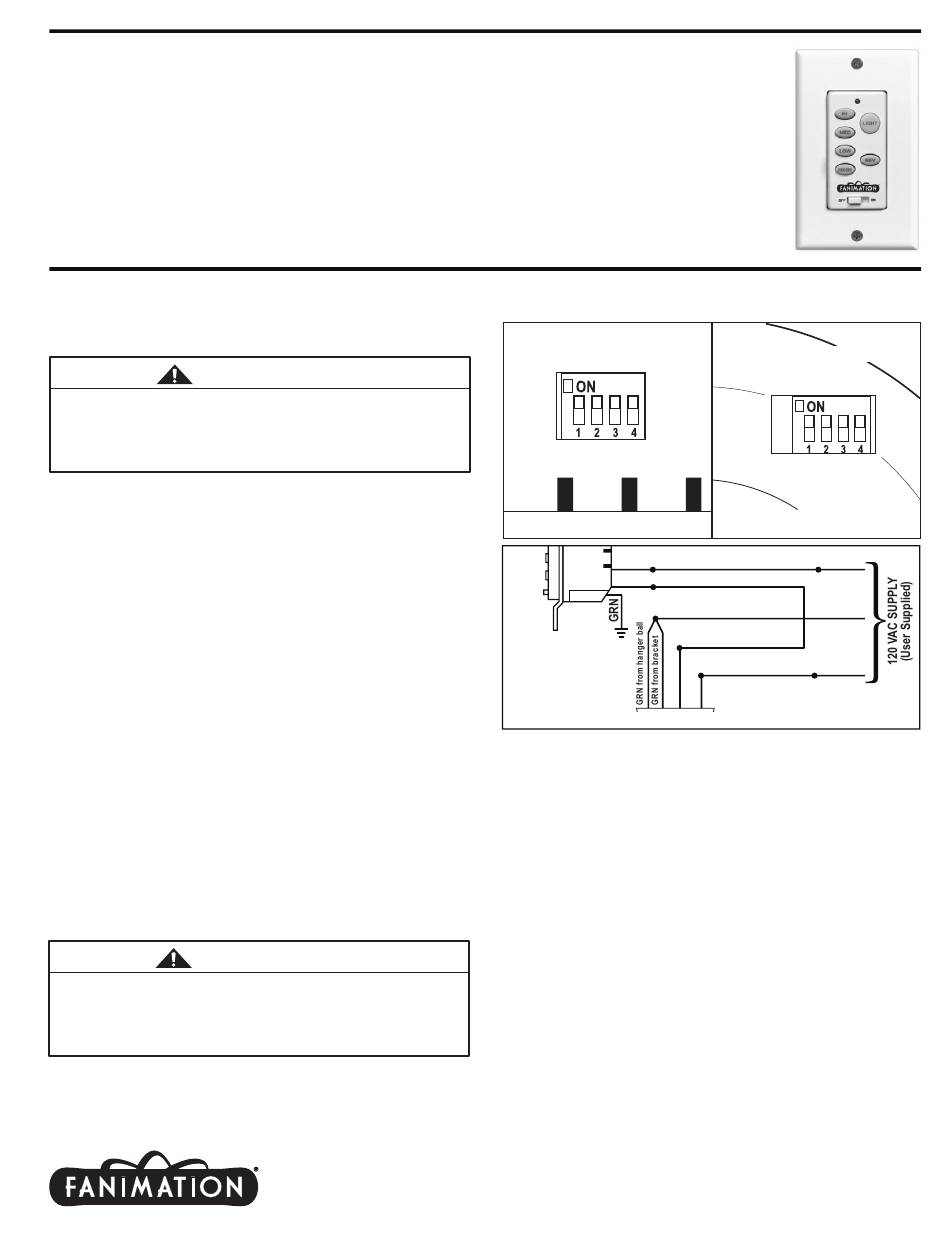

Fanimation C21 Specification And Instruction Sheet

C21 Wall Control
SPECIFICATION and INSTRUCTION SHEET
DESCRIPTION: One Ceiling Fan and Light, 3 Speed, Reversing Wall Control
FAN MODEL USED: Must operate in conjunction with SW50 Switch Cap Control Receiver
How to Wire and Operate Your C21 Wall Control
NOTE: If fan or supply wires are different colors than indicated,
have this unit installed by a qualified electrician.
WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
1. Setting the Code: The remote unit has 16 different code
combinations. It may be necessary to test a couple frequency
code settings to improve signal reception and/or eliminate
interference from other remote control household items.
Multiple fans should have different code settings to allow
independent fan control. To set the code, perform these
steps.
• Transmitter: located on back side of unit. Slide code
switches to your choice of up or down position. Factory setting
is all up. Do not use this position. With a small screwdriver or
ball point pen slide firmly up or down (Figure 1a).
• Receiver: Slide code switches to the same positions as
set on your transmitter (Figure 1b).
2. Wiring & Installing Wall Control Transmitter:
• With electrical power still disconnected, remove the
existing wall plate and switch.
• Make wiring connections with wire nuts as shown in
Figure 2.
– One black wire from wall control unit to black
(hot supply)
– One black wire from wall control unit to black wire
leading to ceiling outlet box.
– One green wire from wall control unit to wall outlet box.
• Attach wall control unit to outlet box using the two 6-32
screw provided.
• Attach wall plate to the switch control front using the two
small screws provided.
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until the blades is in place. Noise and fan damage
could result.
May be used in conjunction with TR20** Remote Control
See Catalog or visit our website www.fanimation.com for more
information
10983 Bennett Parkway
Zionsville, IN 46077
(888) 567-2055 • FAX (866) 482-5215
Outside U.S. call (317) 733-4113
Visit Our Website @ www.fanimation.com
Wall Transmitter Unit Detail
(located on side of Wall Control)
Figure 1a
BLK
BLK
GRN or BARE GROUND
BLK-TO MOTOR L
Figure 2
FAN ASSEMBLY
3. Operating & Using Wall Transmitter:
• HI Push Button – high fan speed
• MED Push Button – medium fan speed
• LOW Push Button – low fan speed
• REV Push Button – toggles between air upflow and
air downflow
• OFF Push Button – fan off
• LIGHT Push Button – toggles between light on or light off,
also works as light dimmer (see note
(if optional light kit or fitter is used)
*NOTE: To vary light intensity, hold down button to increase or
decrease brightness. Tap button quickly to turn light on or off.
The light button has auto resume, which maintains the same
brightness as the last time it was turned off.
Receiver Unit Detail
Figure 1b
BL-AC IN L
GRN
WH-TO MOTOR N
WH-AC IN N
Copyright 2010 Fanimation
2013/02
