While all M1 Caliber Tools come with a factory calibration, an onsite calibration is recommended when first
receiving the M1 to ensure the most accurate cuts possible and match your specific tape measure. Tape
measures may vary based on manufacturer and class rating making it essential that a calibration is performed
to match the specific tape measure blade printing. The following procedure allows the M1 to accurately convert
rotary motion of the wheel to linear measurement that exactly match a specific tape measure. The following
demonstration is made using wood but any material may be used should it meet the proper requirements and
should match what you plan to most frequently cut with the M1 Caliber in order to ensure the most robust
calibration.

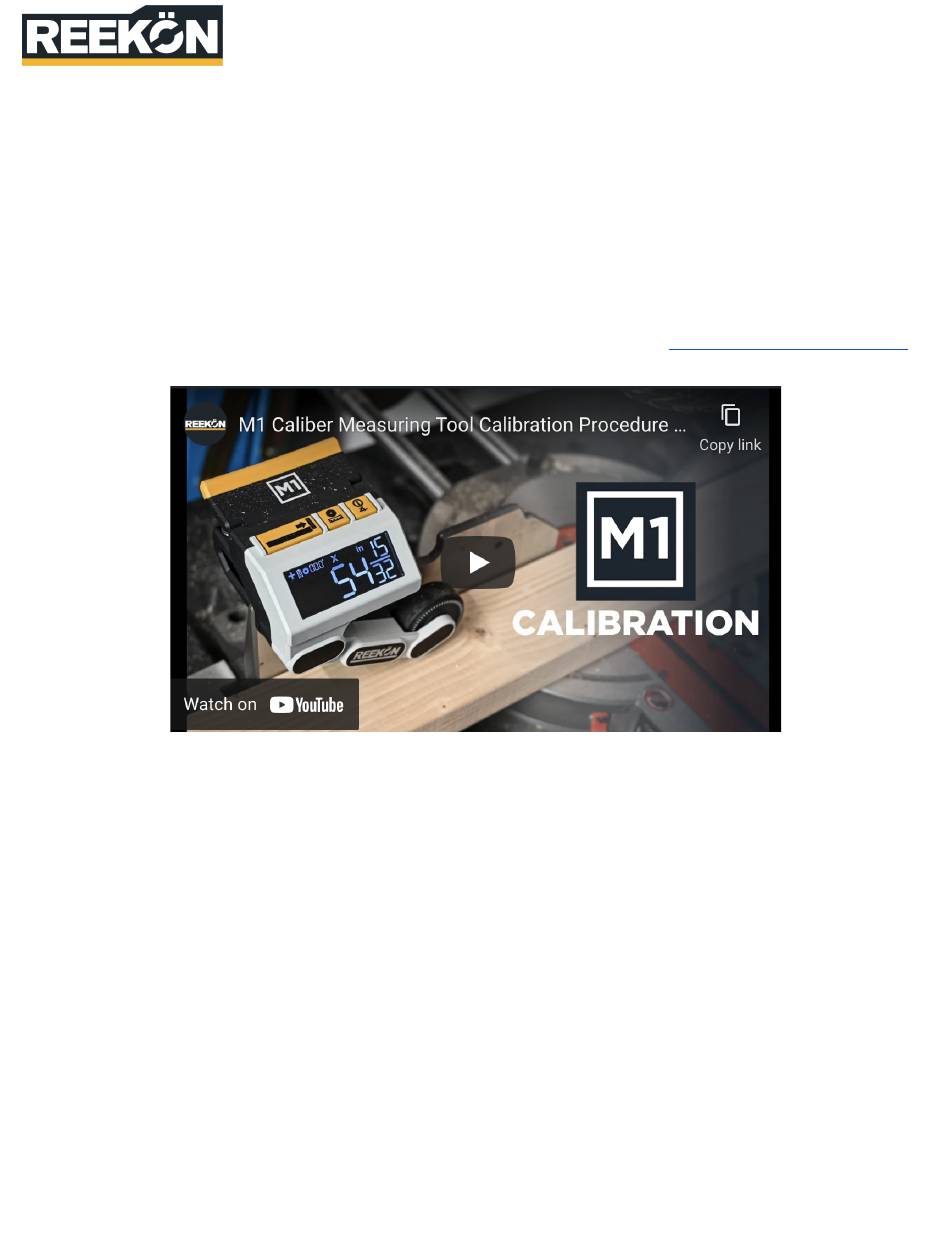

For best experience, we recommend viewing our calibration video on YouTube -
Before beginning the calibration procedure, please ensure the following:
● The M1 is powered off
● The M1 is properly secured to the fence
● A flat, smooth, and straight piece of material at least 8 feet (2.5m) is available to use
● A trusted tape measure, at least 8 feet (2.5m) long, that will be commonly used, is available
● A sharp tip pencil or pen is available to make a mark
M1 Caliber - Calibration Procedure
https://reekon.xyz/calibration
REEKON Tools, Inc - Cal Guide JUL 2021
Advertisement
Related Manuals for REEKON M1
Summary of Contents for REEKON M1
- Page 1 The following demonstration is made using wood but any material may be used should it meet the proper requirements and should match what you plan to most frequently cut with the M1 Caliber in order to ensure the most robust calibration.
- Page 2 M1 Caliber - Calibration Procedure 1. With the M1 powered off, turn on the M1 Caliber into calibration mode ● Hold both the zero and units button then click the power button once until "CAL" is displayed ○ Do not hold the power button, click once then release ●...
- Page 3 M1 Caliber - Calibration Procedure 2. Slide measuring material under M1 wheel until it is slightly past the blade location ● Your measuring material should match the material you plan to cut most frequently as some materials calibrate different than other materials ●...
- Page 4 ● The zero button confirms that the cut has been made and the saw blade is aligned with the edge of the material ● Note: Do not move material after you have made the cut before confirming zero location. REEKON Tools, Inc - Cal Guide JUL 2021...
- Page 5 4. Move material slightly to the right and ensure the material is stable on saw setup and select units (ft or m) ● Calibration can be done using english or metric units. REEKON Tools, Inc - Cal Guide JUL 2021...
- Page 6 5. Using a tape measure, make a mark on the material at either 6 feet or 2 meters. ● Ensure the tape measure you are using is the one you plan to use most frequently with the M1 as the calibration will most closely match the tape measure you are using.
- Page 7 ● Ensure your mark aligns with the teeth of the saw blade which sometimes extend outwards. ● Be sure your saw is unplugged or has its battery removed before observing saw blade location. REEKON Tools, Inc - Cal Guide JUL 2021...
- Page 8 ● After the zero button is selected, the screen will display 72" in fractional mode for English calibrations ● After the zero button is selected, the screen will display 78 3/4" in fractional mode for Metric calibrations ● Units can be changed to your preference in the next step REEKON Tools, Inc - Cal Guide JUL 2021...
- Page 9 ● If not successful, carefully repeat above steps. ● If you are having difficulties Calibrating your M1, please view our Calibration Troubleshooting Article for additional details and steps to try ●...
- Page 10 M1 Caliber - Calibration Procedure Appendix - Quick Start Calibration REEKON Tools, Inc - Cal Guide JUL 2021...
