Acmex JM-JP-004 Instructions

JL 2 DOOR RUNNING BOARD
INSTRUCTIONS
Tools Required
13mmSocket
10mmSocket
Ratchet
Torque Wrench
Part List
1 Driver Left Side Step Bar
1 Passenger Right Side Step Bar
4 Mounting Bracket
4 M8 Hexagon Bolt
M6 Bolt Set
16
M8*22 Flat Washer
4
8
M6*18 Flat Washer
4 M8 Spring Washer
8
M6 Spring Washer
8
M6 Flange Nut
Notes
Read this instruction carefully before starting installation.
We provide extra spare parts, only the necessary quantities were listed.
Verify all parts especially the direction of step bar and bracket before installation.
The WIDER side of step bar towards front.
If the step bar was too close to against rocker panel, try to add M6 flat washers before
attach the bracket on rocker panel.
If missing parts or any damage found, please take a picture, and contact us.
Front
Rear
1/4

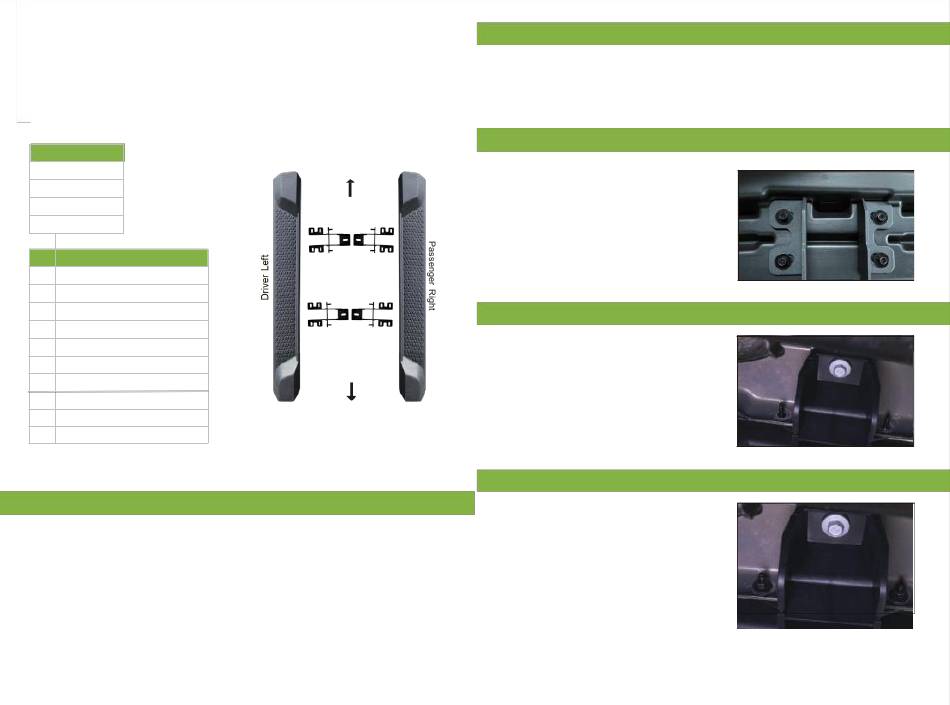

Step 1:
Remove factory rock rail if equipped. Three mounting positions each side.
Remove (4) M6 hex nuts on rocker panel and (2) M8 hex bolts on body frame.
Note: The step bar and factory rock rail cannot coexist.
Step 2:
Attach (2) brackets on the back of step bar.
Secure with (8) M6 bolt sets.
Note: The wider side of step bar towards front.
Step 3:
With assistance, lift step bar up and attach the mounting
bracket through the two holes on the rocker panel.
And secure bracket on body panel with (2) M8 hex bolts,
(2) M8 flat washers, (2) M8 spring washers.
Do not fully tighten.
Step 4:
After the bracket is attached, secure the bracket studs
on rocker panel with (4) M6 flat washers, (4) M6 spring
washers, (4) M6 flange nuts.
Do not fully tighten.
2/4
