Design Toscano KY-0221 Instructions

INSTRUCTIONS
PRODUCT
OR
YOUR

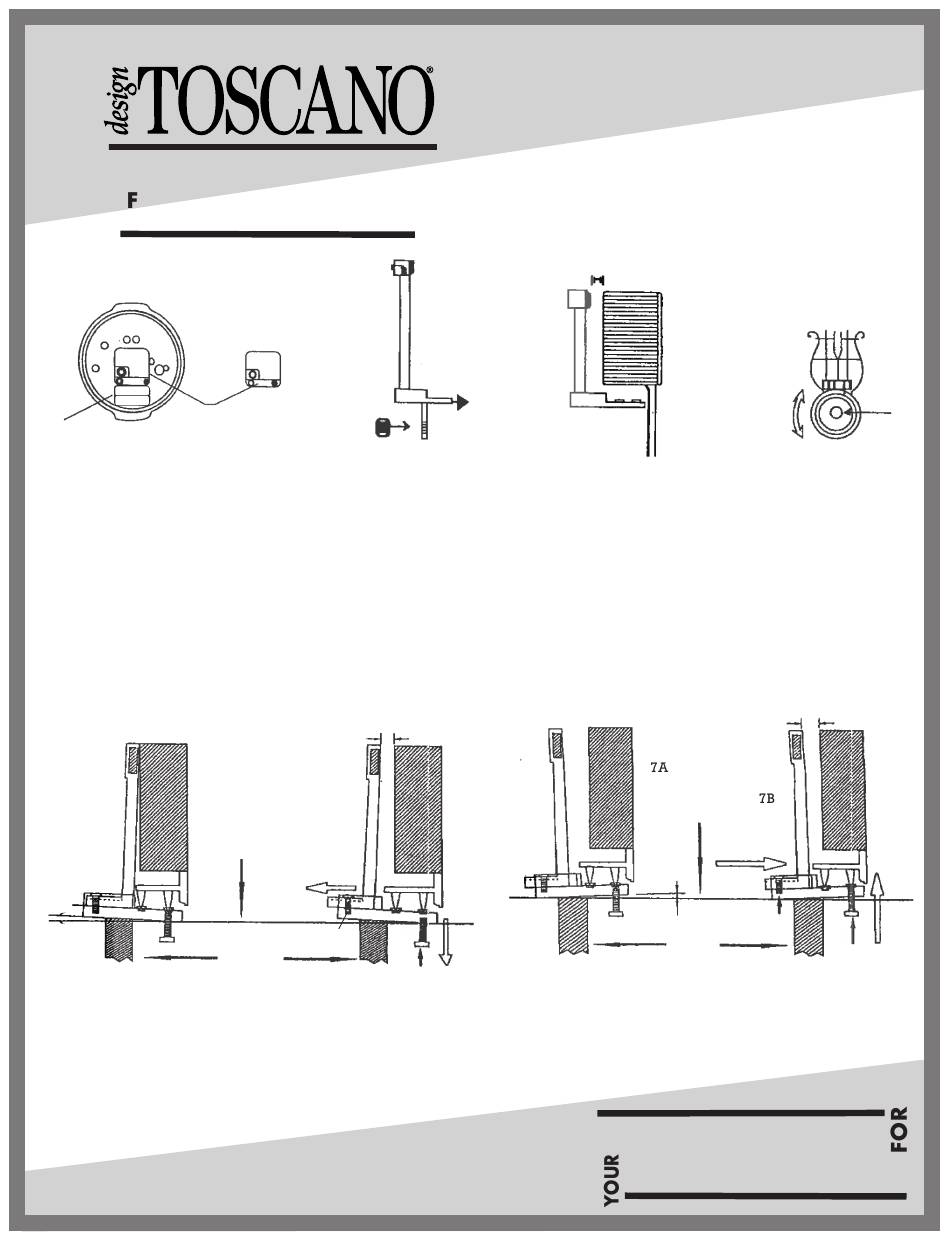

Step 1
Size AA 1.5V
battery
Size AA 1.5V
battery x2
Step 1
Unclip battery cover.
Insert batteries (not supplied)
as shown and adjust time, then
replace the battery cover.
Step 2
Unscrew the fastening nut (B) from
the base of the support bracket (A)
and then put the bracket through the
arm on the statue and fasten nut (B)
finger tight.
"L" Pole
6A
a°
"B" Screw "A" Screw
Step 6
If the pendulum is not level as shown in picture 6A then
you may need to move the "L" pole slightly left. This is
achieved by screwing down screw "B" to make the pole
"L" vertical and the gap to the clock 1.5-2mm. You can
also slide the pole "L" back and forth to achieve the
correct gap as shown in picture 6B.
©Copyright 2017, Design Toscano, Inc.
1 . 8 0 0 . 5 2 5 . 0 7 3 3
DESIGNTOSCANO.COM
A
B
Step 3
Unscrew nut (C) from front of
support bracket and position the
pendulum onto the 2 cups provided
(take care to position correctly) and
refasten the nut (C) back into place.
Step 4
The space between the back of
the pendulum and the support
bracket should be 1.5-2mm. (NOTE:
It is important that the pendulum
does not actually touch the magnet.)
"L" Pole
6B
LEVEL
"B" Screw
POLY
"A" Screw
Step
2 & 3
C
1.5-2 mm
"L" Pole
Clock
"B" Screw
Step 7
If the pendulum is not level and looks similar to picture
7A then the pendulum may not swing properly. You need to
adjust screw "A" to make the pendulum look like picture 7B
with a gap of approximately 1.5-2mm. Note screw "B" should
be adjusted to make sure the "L" pole
is absolutely vertical.
Grande-Scale Flora Sculptural
Swinging Pendulum Clock
Thank you for your recent purchase of
this Design Toscano hand crafted piece
of sculptural art. We have taken great
care to create this piece especially for
you. Please review these instructions
and assemble this piece with care.
1.5-2 mm
Step 4
Rotate
Step 5
Gently push the pendulum to start the
swinging action. There is an additional
adjustment at the base of the pendulum
to "balance the pendulum."
The back of the base of the pendulum
rotates to adjust the counterbalance
weight - if required. This can be rotated
to help equalize the swing.
(NOTE: It may be necessary to slacken
the securing screw on the rear of the
pendulum before doing this.)
"L" Pole
LEVEL
a° "B" Screw
"A" Screw
POLY
T H A N K YOU
P U R C H A S E
KY-0221
Step 5
Screw
Rear view of base
of pendulum
1.5-2 mm
Clock
"A" Screw
