ADUB NG-PL-320W Installation Instructions

INSTALLATION INSTRUCTIONS
* WARNING: Please DO cut off power to avoid electric shock and endanger life
safety before installation
* Installation height should be higher than 1.2m.
* For pole mounting, please complete wiring at the accessible hand-hole on the pole.

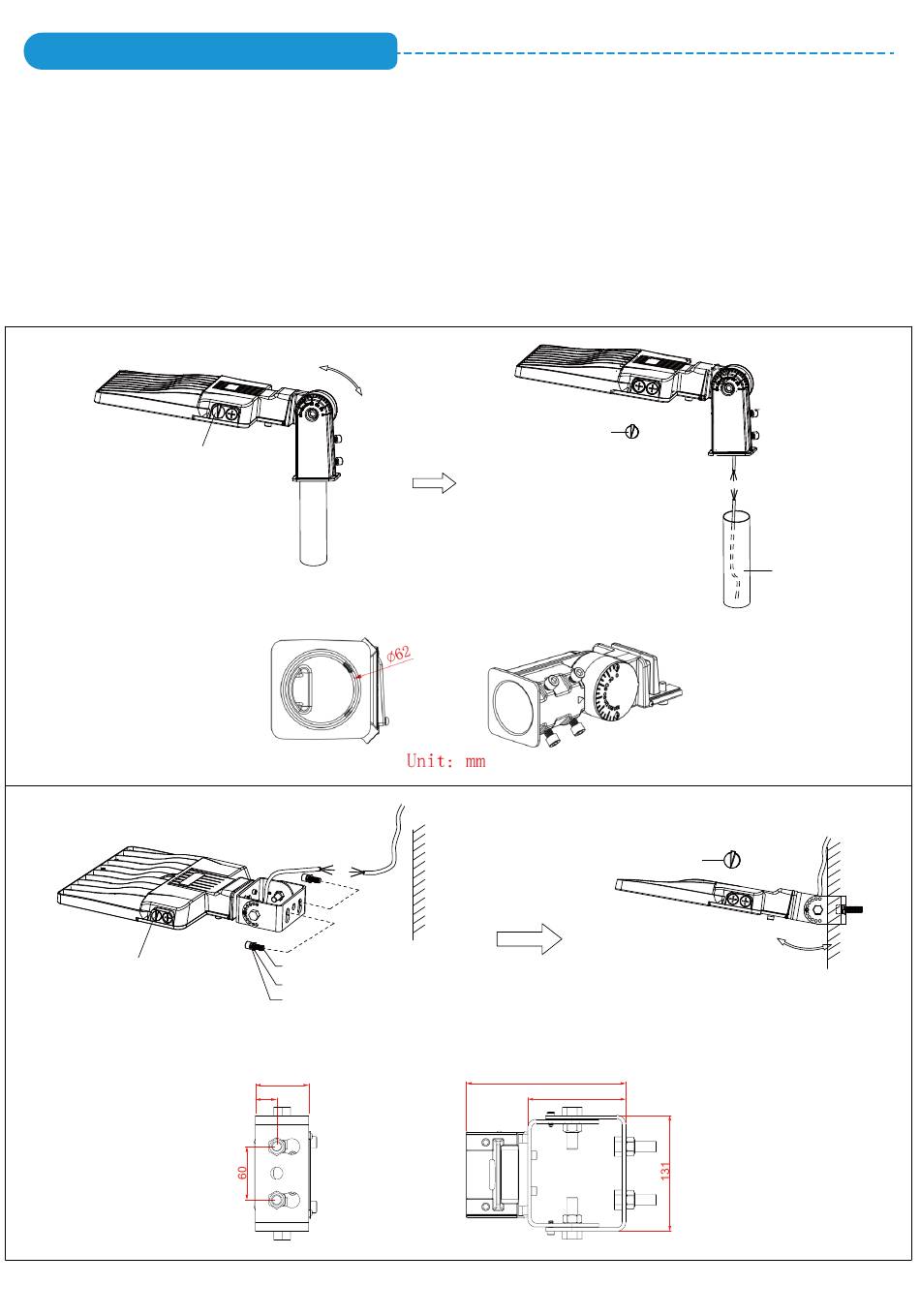

Installation Instruction
Light sensor cover
Slip fitter
Light sensor cover
Trunnion
1 Connect the wires correctly and insulate them.
2 Insert the lamp post into the lamp and tighten the screw.
3 Remove the light sensor cover if you need the
light sensor function.
Black--L
White--N
Green--GND
Screw 1/2-13*1-1/2
Flat gasket
1 Connect the wires correctly and insulate them.
Spring washer
2 Attach the lamp to the wall and tighten the screws.
3 Remove the light sensor cover if you need the light sensor function.
60
24
Unit: mm
Light sensor cover
Light sensor cover
179
110
LED PARKING LOT LIGHT
Black--L
White--N
Green--GND
Lamp post
180°
