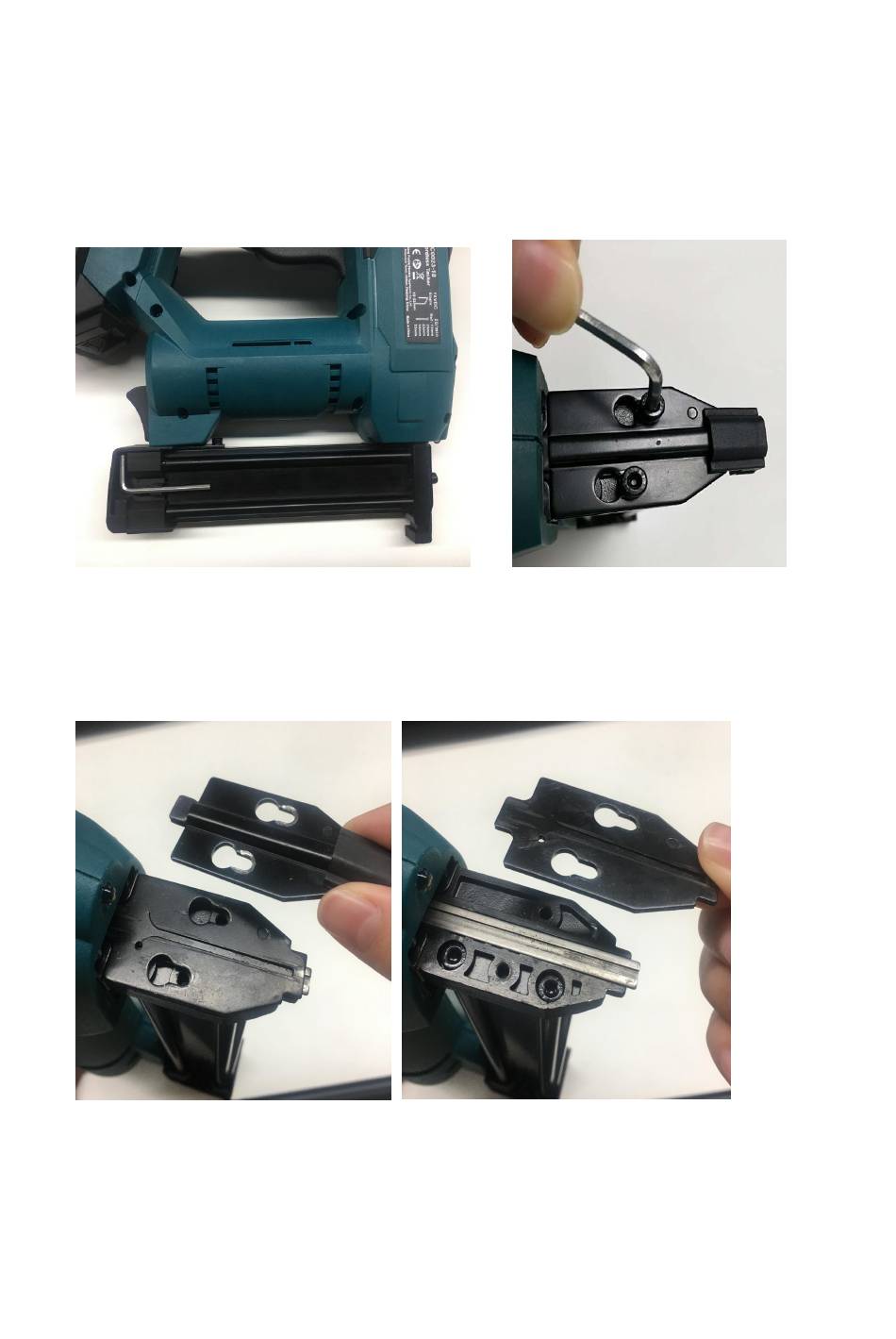

- Page 1 The Step of Removing the Stuck Staple & Brad Nail 1) Firstly, take off the Allen Key from pusher bracket. Then loosed the two hexagon screw on the head of the tool. 2) Secondly, disassembled the front cover and middle panel.
- Page 2 SPECIAL TIPS: All the removed parts are shown below picture. Pay attention not to lose two rings. 3) Thirdly, tilt up the nail knife with a screwdriver and try to remove the stuck staple or brad nail with pliers . 4) Fourthly, first assemble the middle panel, then install the front cover.
- Page 3 5) Lastly, Put the ring into the screw, tighten the two hexagon screw with wrench and assembly the No-marring tip.assembly the No-marring tip. Please check there is no gap between the middle panel and magazine, the gap will cause to double brad nail.
