tenlamp X3 Manual

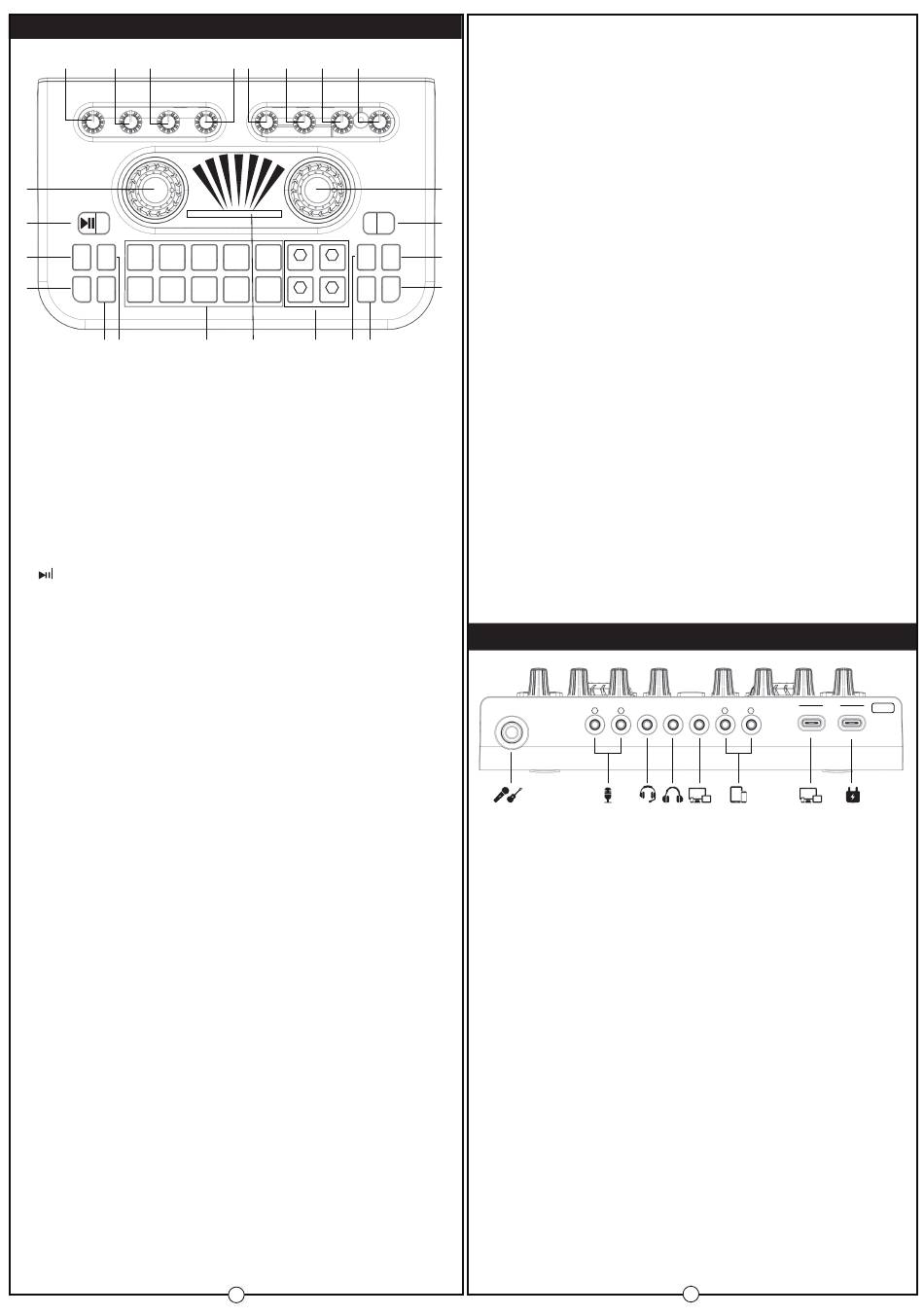

X3 SoundCard Function Introduction
5 6 7
Voice Sound
Recording
Accompaniment
changer effects
3
2
Reverberation
BT
13
Original Slap on
RAP Kiss
sound the face
14
KTV Specially Applause
Laughter
1516
1. POWER/LOOPBACK button:
Long press to power on/off; short press to turn on/off LOOPBACK function
(LOOPBACK function is used for input audio from PC via USB-C port,
LOOPBACK ON: the audio sent to the mixer via USB will be sent back to the USB
connected device, the audio resources inside PC (music, video, game, web pages,
ect audio) can be heard by audience or can be recorded;
LOOPBACK OFF: the audio sent to the mixer can be heard through the monitoring
headphones, but will not be heard by audience or will not be recorded, only
microphone audio can be heard by audience or can be recorded).
Battery indicator light: When the device is turned on, the green light remains on
for a long time; When charging, the red light stays on, and when fully charged, the
light goes off
2. button :
BT
Long press to turn on/off BT function. Bluetooth is enabled by default. BT waiting
for pairing, the button light will blink; BT paired successfully, the button light will be
always on; Short press to play/pause accompaniment music(only for BT music).
3. Reverberation Knob:
Rotate the knob clockwise to adjust the reverb effect in RAP, KTV and Specialty
reverb modes. Adjust in reverb mode and fine tune in original sound mode.
4. Monitor Knob :
Rotate the knob clockwise to adjust the monitoring output volume(via Eardphone
jack and Headset jack).
5. Recording Knob:
Adjust output volume of two Live Streaming ports and TYPE-C OTG port
6. Voice Changer Knob :
Turning the knob clockwise to control mic input audio voice-changing effect.
7. Sound effects Knob :
Turning the knob clockwise to adjust the volume of the fixed sound effects & the
customized sound effects.
8 . Accompaniment knob:
Rotate the knob clockwise to adjust the input volume of music from Bluetooth,
Accompaniment port, TYPE-C OTG port.
9. Mic Low Knob :
Rotate the knob clockwise to adjust the bass effect of microphone vocals.
10. Mic Mid Knob :
Rotate the knob clockwise to adjust the midrange effect of microphone vocals.
11. Mic High Knob :
Rotate the knob clockwise to adjust the treble effect of microphone vocals.
12. Mic total Vol Knob :
Rotate the knob clockwise to adjust the input volume of microphone(including
Musical instrument port(6.35mm dynamic mic or musical instrument),
Microphone(1, 2) port, Headset port ).
13 . Original sound button:
Short press to switch to original sound modes.
14 . KTV button:
Short press to switch to karaok sound modes; Long reverb time effect.
15 . Specialty button:
Short press to switch to professional singing sound modes; Short reverb time effect.
16 . RAP button:
Short press to switch to MC sound modes; The vocals is full and magnetic.
17. Electronic music button
12-Step Auto tune; short press cyclically switch 12 step audio tune.
8 9 10 11 12
Mic Low Mic Mid Mic High Mic total Vol
C D E F G A B
b b b b b
D E G A B
Monitor ON OFF
Lead
Piano 1 2
Fist Despise
singer
music
Customize Customize
Full
electronic
3 4
House
Pit Song Sadness
music
Hi
Customize Customize
21 22 23 18 17
1
18. Lead siner button :
short press to cyclically switch: Lead singing/Follow singing/Remove vocal/Close
button function.
Lead singing:
the vocals part of the song, the accompaniment of the song, and the sound of the
microphone input. After 60 seconds, only the accompaniment of the song and the
sound of the microphone input can be heard;
Follow singing:
the accompaniment of the song, and the sound of the microphone input, but there
is no vocals part of song in the recording or live broadcast room, only the
4
accompaniment of the song and the sound input from the microphone.
Follow singing:
1 room, there is no vocals part of song, only the accompaniment of the song and the
sound input from the microphone.
Tip:
if for the music inputted through the USB-C port (from mobile phones and computers)
20
Dodge
requires turning on Loopback function.
Note: Some accompaniments and song tracks may differ, and the vocals part of the song
19
Noise
reduction
may not be completely erased.
19. Noise reduction button :
short press to turn on/off noise reduction function to blocks background noise,
ensures the clearness of audio recording
20. Dodge button :
Turn on/off auto ducking microphone audio input function. When on, the mixer
automatically lower the volume of accompaniment music while streamer speaking,
recover accompaniment music volume while streamer stop speaking.
21 . 8 fixed interesting instant trigger sound pads for streaming atmosphere.
22. 12 step auto tune indicator
23 . 4 customizable audio effects button to record songs, music, beats via mic,
external audio input, Bluetooth input, and save them to the mixer.
By default, there is no customized audio effect.
Customize audio effects: Press and hold this button to record your audio effects.
Each button can record for 10 seconds.
Delete the customized audio effects: Long press a customize button with
existing customized audio for more than 2 seconds, button indicator will flash,
indicator a successful deleting customized audio effect.
X3 SoundCard Connection Ports Introduction
Musical
instrument
1
1. Musical instrument: Connect 6.35mm dynamic microphone and musical instrument devices.
the input volume is controlled by " Mic total Vol" knob
2. Micophone: Two 3.5mm TRS mic port. Connect a (XLR to 3.5mm) condenser microphone that
does not require external power supply. the input volume is controlled by " Mic total Vol" knob
3. Headset: 3.5mm TRRS port. Connect a headphone with microphone function. used for vocals input
via headset, and also can real-time monitor all sound sources simultaneously. monitoring volume
is controlled by " Monitor" knob; the input volume is controlled by " Mic total Vol" knob.
4. Earphone: 3.5mm monitoring port; used for monitoring all sound resources of the mixer in real
time. Controlled by " Monitor" knob.
5. Accompaniment: 3.5mm music resources input port; Connect an external audio source or
devices to the mixer via a 3.5mm audio cable, to playback background music during streaming or
recording. Can be connected to the smartphone headphone jack, PC earphone jack. the input
volume controlled by " Accompaniment " knob.
6. Live Streaming ports: Two 3.5mm TRRS ports; By the port, the mixed sound can be output to
the smartphone, tablet or other devices through a 3.5mm TRRS cable. Can live stream to multiple
devices at the same time. Mainly use to live streaming or recording on smartphone or tablet.
When you chat with followers, fans and other streamers, the voice of other party can be input
through this port. However, the volume of other party depends on the output volume of the other
party, our mixer cannot control the volume.
The output volume is controlled by " Recording" knob.
7. TYPE-C OTG: USB-C port; Data interface, can be used for audio data communications with
computer and mobile devices.
input volumecontrolled by " Accompaniment " knob.
8. TYPE-C Charge: USB-C port; charge the mixer via this port
NOTE: Not supporting the USB microphone connecting the mixer via USB-C port
For the first 60 seconds, in the monitoring headphones, you can hear
In the monitoring headphones, there is the vocals part of the song,
In the monitoring headphones, the recording or live broadcast
Microphone live streaming
2 1 2
Headset Earphone Accompaniment
2 3 4 5 6
The output volume is controlled by " Recording" knob; the
2
TYPE-C TYPE-C
5V/1A
OTG Charge
1
7 8
