ECCPP 160821-5211-1827500132 Installation Manual

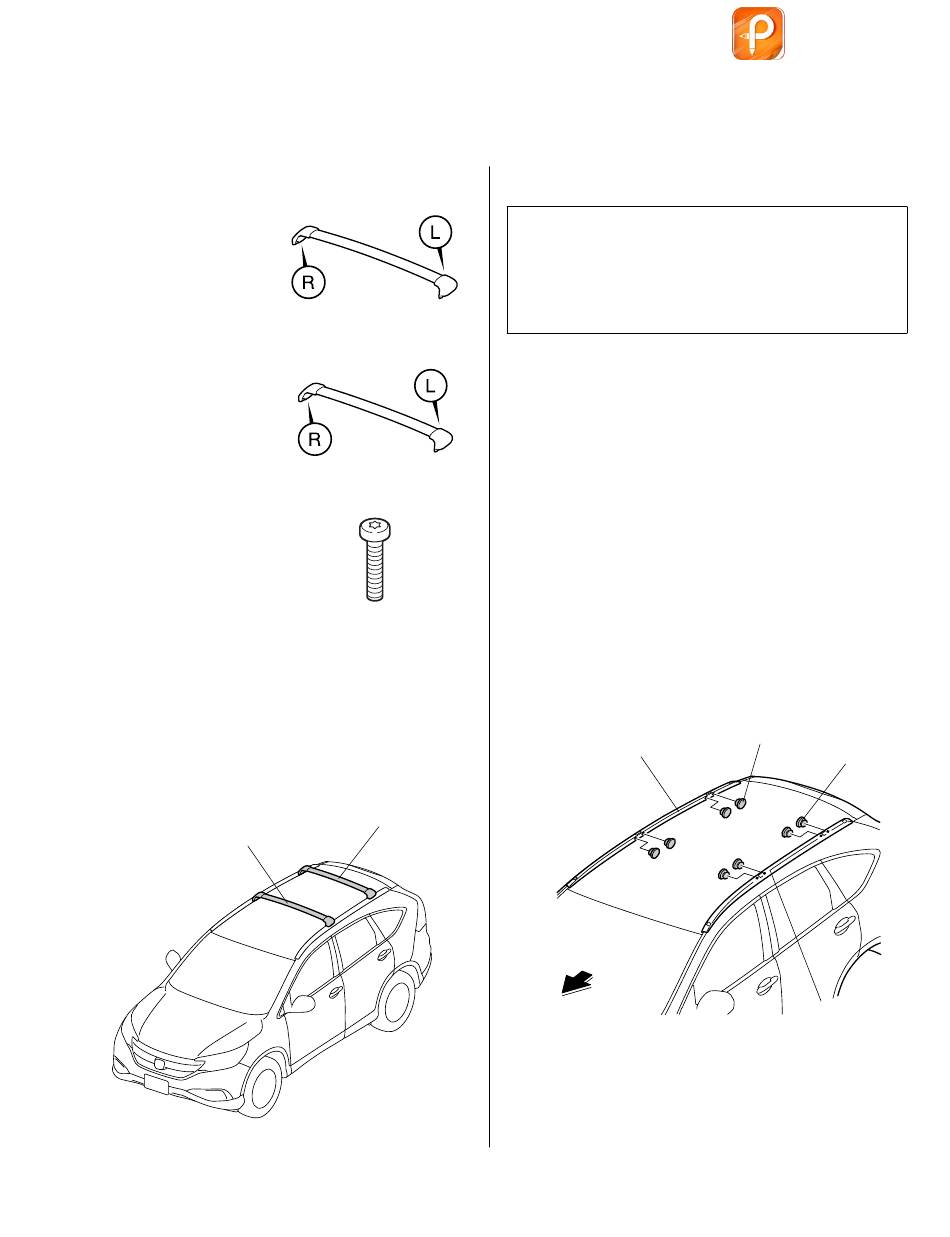

PARTS LIST
Front crossbar (Long)
Rear crossbar (Short)
8 Bolts
TOOLS AND SUPPLIES REQUIRED
T-30 Torx bit
Torque wrench
Illustration of the Crossbars on the Vehicle
FRONT CROSSBAR
Installation Manual
REAR CROSSBAR
INSTALLATION
Customer Information: The information in this
installation instruction is intended for use only by skilled
technicians who have the proper tools, equipment, and
training to correctly and safely add equipment to your
vehicle. These procedures should not be attempted by
"do-it-yourselfers."
NOTE:
• The weight of the cargo must not exceed the maximum
weight capacity of 75 kg (165 lbs).
• Be careful not to damage the roof and other finished
surfaces of the body when installing the crossbars.
USE AND CARE
• Check the crossbar mounting bolts frequently, and
re-tighten if necessary.
• Distribute the weight of the cargo
evenly, and do not exceed the maximum weight
capacity of 75 kg (165 lbs).
Installing the Crossbars
1. On each roof rack rail, remove the four covers.
RIGHT ROOF
RACK RAIL
FRONT
