Summary of Contents for Nexigo D101
- Page 1 NexiGo D101 Hardwire Kit for Dash Cam D621 User Manual...
-
Page 2: Contact Information
From all of us here at NexiGo, we want to thank you for your trust in us. We look forward to serving you again in the near future. -
Page 3: Safety Notes
Safety Notes: IMPORTANT: Before using this product, ensure that you read the entire manual for correct installation and proper use. ● Installation may require professional assistance. If you are not comfortable completing any of the steps listed, please contact a local professional for assistance. ●... -
Page 4: Specifications
Note: The correct Fuse Blade size and Fuse Tap type varies depending on your vehicle. Please check your fuse box to determine which Fuse Blade and Fuse Tap your vehicle needs. What’s in the Box? 1 x Dash Cam Hardwire Kit 8 x Fuse Taps 8 x Blade Fuses 1 x Pry Tool... -
Page 5: Installation Overview

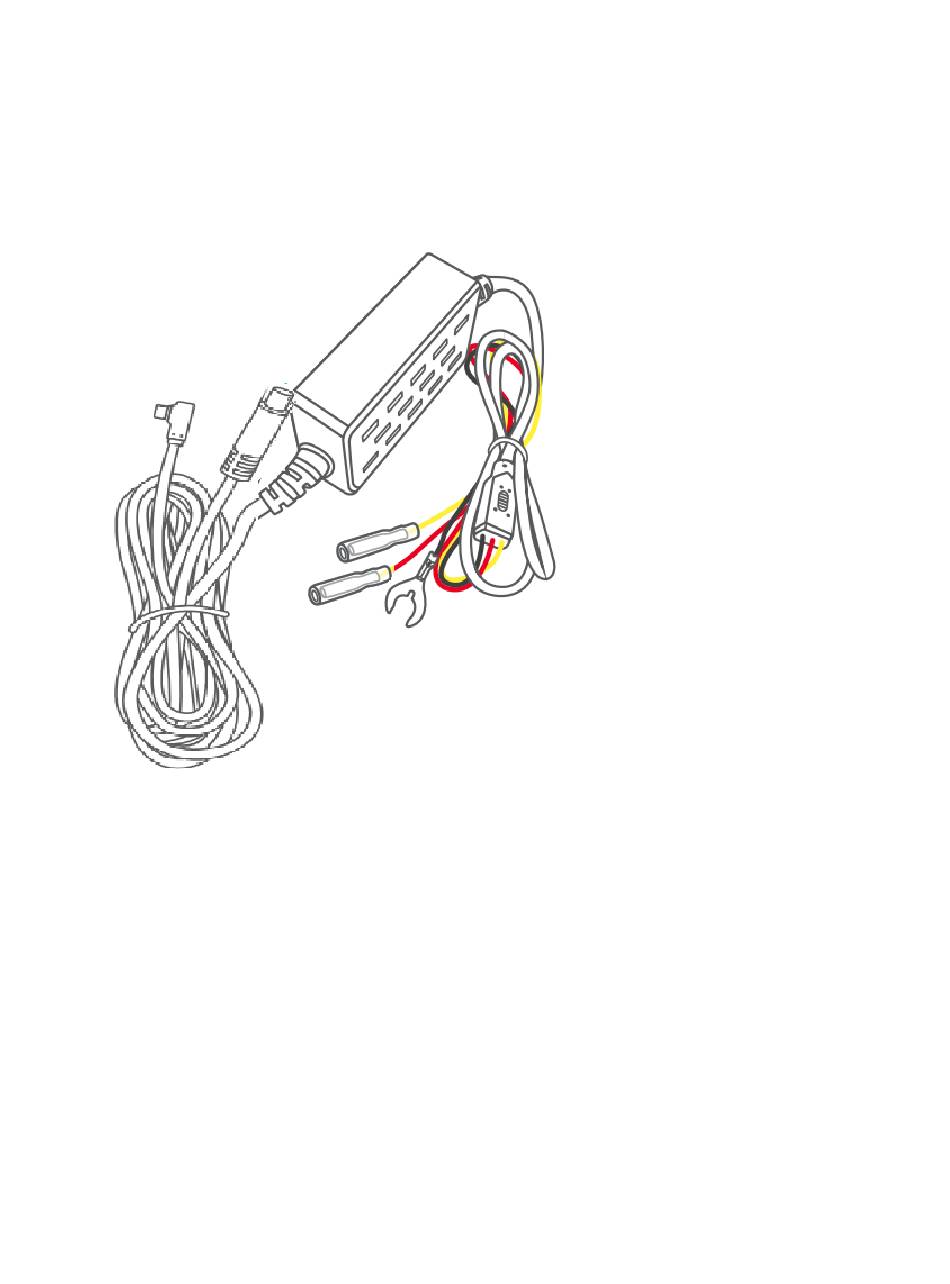

Installation: Overview 1. Powers the dash cam 2. Powers the rear camera 3. Connects to the ACC fuse slot 4. Connects to the constant fuse slot 5. Connects to the grounding screw Step 1: Route the Power Cable... - Page 6 Run the power cable along the top of the front windshield and down the structural pillar to the vehicle fuse box, as shown in the figure below. Along this path, use the Pry Tool to push back the edges of the interior trim enough to tuck the cable underneath.
- Page 7 Next, try inserting the Original Fuse Blade into each of the included Fuse Taps to determine which one is the right size for your vehicle. Attach the well-fitting Fuse Tap to the Yellow Wire from the Hardwire Kit. Step 4: Connect the Original Fuse Blade to the Yellow Wire Install the Original Fuse Blade from your vehicle into the Bottom Slot of the Fuse Tap on the Yellow Wire.
- Page 8 Step 6: Install the Fuse Tap into the Constant Fuse Slot Insert the Fuse Tap on the Yellow Wire into the Constant Fuse Slot of your vehicle. Step 7: Connect the Red Wire to the ACC Fuse Slot Repeat Steps 2 through 6 to connect the Red Wire to the ACC Fuse Slot of your vehicle. Please ensure that the Yellow Wire connects to the Constant Fuse Solt and the Red Wire connects to the ACC Fuse Slot.
- Page 9 Step 9: Plug in the Dash Cam Connect the Type-C Power Connector to your dash cam and connect the 4-Pin Power Connector to your rear camera Extension Cable to supply them with power.
