ApoloSign SW3295T Installation Instructions

Installation instructions for Mobile Smart Screen
1.Please check the appearance of the product, whether there are scratches, cracks, and whether the accessories
are complete when unpacking. If there are any such problems, please return the product.
2.If you need to return or exchange the product, please make sure that the product is intact, the packaging is
complete inside and outside, and the product and accessories are not damaged.
01 02

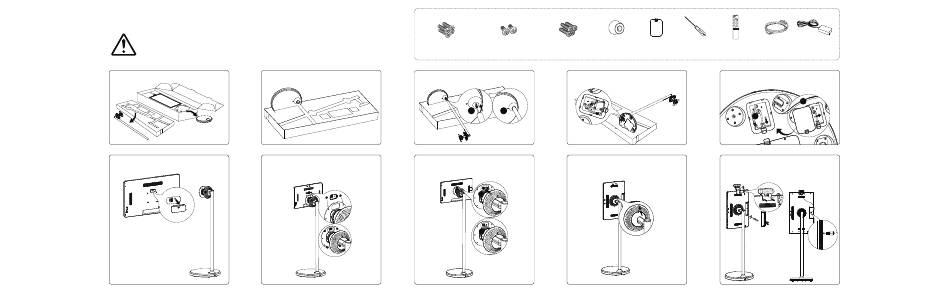

Take out the bracket and the circular base. Place the base on the foam slot.
06 07
Open the dust cover. Align the two pre-installed screws on the VESA of
the display with the U-shaped hole on the bracket,
slide them in to fix them, lock the remaining two
screws (B bag PWM4*6), and finally tighten the two
pre-installed screws.
Accessories:
(A bag BM3*16) screws x5 (B bag PWM4*6) screws x3 PM4*16mm screws x4
Friendly reminder: The PM4*16 screws and foot pads are used for anti-slip purposes, which can be installed according to your needs. Please refer to the "Anti-Slip Device User Manual" in the instruction manual for specific
installation instructions. (If not installed, please keep them properly.)
03 04
Thread the bracket power cord through the base Lock the four screws (A bag BM3*16) on the base
and install the bracket on the base by aligning it (tip: fix the diagonal position first).
with the slot position.
1 2
08
Check whether all four screws are locked in place, 09
Rotate the display counterclockwise.
and then insert the bracket power cord into the
display base.
1
2
Foot pads x4 Cover plate x1 Screwdriver x1 Remote control x1 Power cord x1
05
Insert the bracket power cord into the charging
board base and then snap on the cover.
1
10 Align the camera hole with the display hole, lock
the two (PM3*5) screws in place, remove the dust
cover, and then plug the connection cable into the
blue USB3.0 port of the display. The installation is
complete.
* Warm tip: If you need to install the camera, please install it on
the right side of the horizontal display
Adapter x1
2
