ACTIER ACT0001 Assembly Instruction

M6*12mm flat tip screw *8
M6*35mm flat tip screw *1
M6*65mm flat tip screw *2
Screw nut *2pcs
Open the box and make sure that all of accessories
and tools are accounted for. Take out the H-shaped
base( A) with pre-installed casters .
1),Put the mouse pad bracket(D) on the L-shaped
desktop bracket(B) and fix it with the adjustment
knob.
Height adjusting knob
for mouse pad board.
2),Install the table structure from step 4,1) into
the base assembled in step 2 and secure it with
two adjustment knobs.
Warning :
1), Using wrong screws at the wrong installation step might damage the product, please make sure to use right screws at the right
installation steps.
2), Once you have adjusted your desired tilt and height of the table, please tighten the Q-shaped brackets' knobs and height adjusting
knobs securely to avoid unwanted movement of the table.

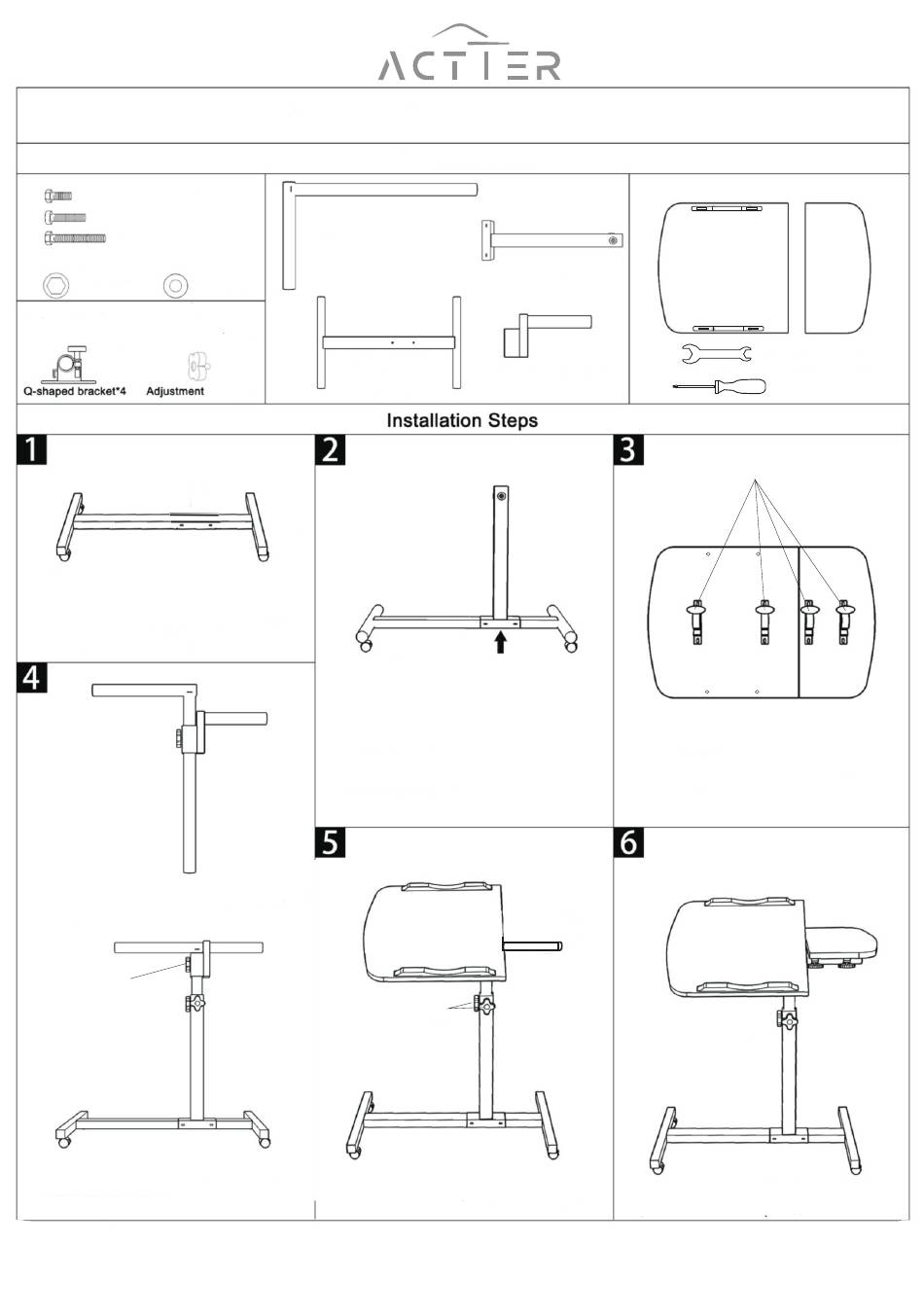

Assembly Instruction for ACT0001
Accessories and Tools list
(B)
L-shaped Desktop bracket *1
Washer *1pcs
H-shaped Base *1 with
4 casters installed
(A)
knob*3
Note: The connection between the H-shaped base
(A) and main support( C) must be tighten with a
M6*35 flat tip screw from the bottom (as pointed by arrow).
Install the main support(C) on the H-shaped base(A) .
Fix it with 2pcs M6*65 flat tip screws and nuts, and
a M6*35 flat tip screw and a washer from the bottom.
Note: Please loosen the knobs of Q-shaped bracket
Height adjusting knobs
Carefully insert the Q-shaped bracket under the desktop
board through L-shaped desktop bracket(B) pipe from
step 4.
(C)
Main support*1
(D)
Mouse pad bracket*1
when you are inserting into L-shaped pipe to
make it smooth and easier.
Desktop board*1 with
edge supports installed
Wrench*1
Screw driver*1
Q-shaped brackets knobs to adjust tilt for
desktop board and mouse pad board.
Install the Q-shaped brackets, fix it with
M6*12 flat tip screws(shortest flat tip
screws) .
Note: If the edge of desktop board and mouse pad board are not
properly aligned, Please readjust the M6*1 2 flat tip
screws that holds Q-shaped brackets to the table.
Similarly ,insert mouse pad bracket(D) pipe
through Q-shaped bracket under mouse pad board.
Mouse pad board*1
