ICC ICRESDP14E Installation Instructions

I N S T A L L A T I O N
ICRESDP14E ,ICRESDP14K , ICRESDP14W
ICC's 14" Plastic Net.Media Center is designed to be
installed in a residence; such as small homes, multi-unit
dwellings and retrofitting existing homes and serve as the
central distribution point for voice, data, audio and video
connectivity. Its compact size makes it perfect for smaller
types of structured cabling installations allowing it to fit
in tight and confined areas. The base is designed to fit
between 16" wall studs and offers a variety of mounting
options. It can be installed inside the wall for a
professional clean appearance, or wall mounted if the
walls have already been installed and painted. ICC's 14"
Plastic Net.Media Center can be configured with any ICC
Net.Media Center connectivity module.
2
3
4

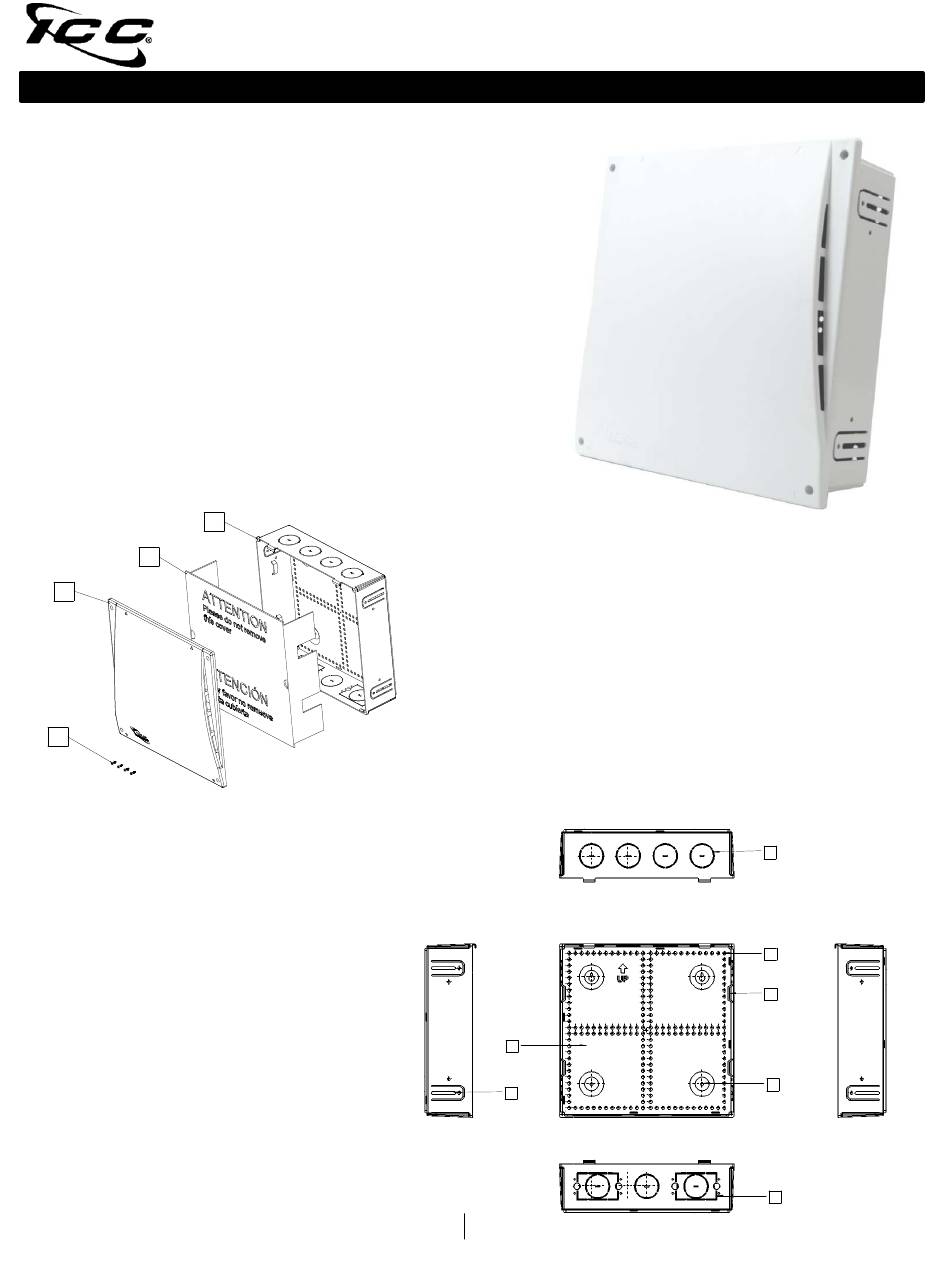

Features
1) Light-weight ABS plastic construction
2) 4 top & 3 bottom knockouts
3) 2 bottom electrical knockouts
4) 4 Cable management tabs
5) Module mounting hole pattern
6) Extendable mounting tabs
7) 4 surface screw mount holes
© Copyright 2020, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved
14" Plastic Net Media Center 14" Plastic Net Media Center
1
E-mail us: cs@icc.com
I N S T R U C T I O N S
Package Content
1. Enclosure 1ea. (14.25" x 14.25" x 3.89")
2. Protective Cover 1ea. (13.2" x 10.1" x 3.5")
3. Cover 1ea. (15.00" x 15.00" x 1.00")
4. #6-32 x 3/8" Machine Screw 4 pieces
5. Connectivity Modules Included:
1. ICRESDP14E: None
2. ICRESDP14K:
A. 6 Port 2GHz Video Splitter 1x6, 1 Piece (ICRESAV621)
B. 8 Port Telephone Module W/RJ31x, 1 Piece (ICRESVPA3C )
C. 8 Port CAT 6 Module, 1 Piece (ICRESDPB3C )
3. ICRESDP14W
A. 8 Port Telephone Module W/RJ31x, 1 Piece (ICRESVPA3C)
B. 8 Port CAT 6 Module, 1 Piece (ICRESDPB3C )
1
6
Go online: www.icc.com
.
2
5
4
7
3
