Summary of Contents for Femometer K8832US

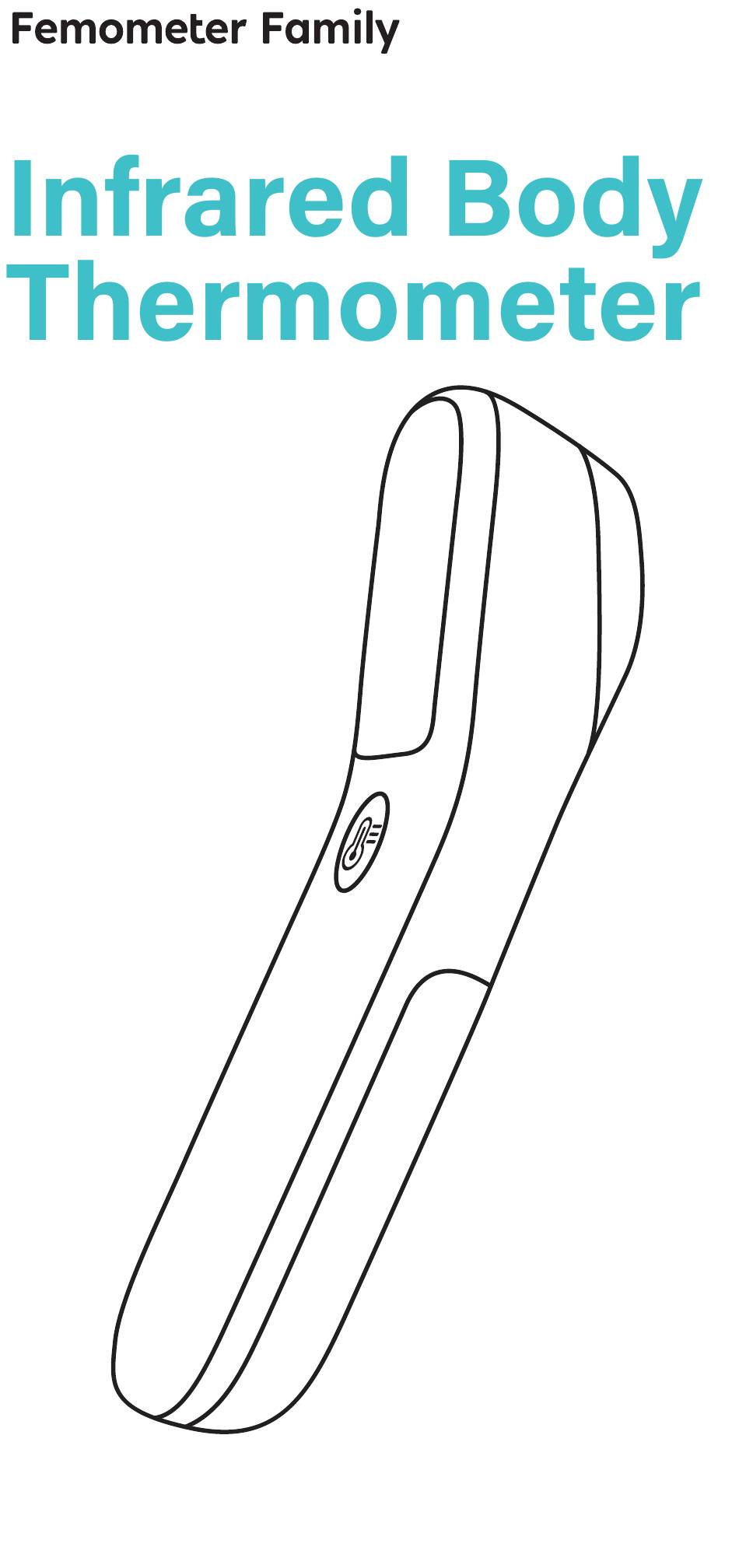

- Page 1 Model : K8832US...
- Page 2 hello If you suspect any product issues during the warranty period, please contact customer services via： support@femometerfamily.com...
-
Page 3: Table Of Contents
Catalogue Safety Information 1 - Overview 2 - Product Performance 3 - Installation and Use Instructions or Illustrations 4 - Error Prompt Message 5 - Cleaning, Care and Storage 6 - Disposal 7 - Calibration 8 - Parts List 9 - EMC Declaration 10 - Body temperature... -
Page 4: Safety Information
K8832US, thermometer model. General knowledge of Infrared Body Thermometer and an understanding of the features and functions of the K8832US thermometer model are prerequisites for proper use. The infrared body thermometer is a medical device, and can be used repeatedly, which using life is 5 years. - Page 5 Warning Warnings are identified by the WARNING symbol shown above. The Infrared Body Thermometer is to be operated by consumers in the home setting and primary care setting as screening tool. This manual, accessories, Directions for Use, all precautionary information, and specifications should be read before use.
- Page 6 the accuracy of the measurement. Do not near strong electrostatic field or strong magnetic fields, thus avoiding the impact on the accuracy of the measurement data. Do not mix the old and new batteries to avoid damage to the product. It may affect the accuracy of measurements when the forehead is covered by hair, perspiration, cap or scarf.
-
Page 7: Overview
1- Overview Indication for use The femometer family Infrared Body Thermometer, Model: K8832US, is an electronic clinical thermometer using an infrared sensor to detect body temperature from the forehead in people of all ages for home setting use. Description of Infrared Body... - Page 8 Key function and key icon explanation: : Start measurement: Press the key to start the device or start measurement. : Sound Switch: Switch on and off sound mode. : Measurement record query: Press the key to query the historical test results. LCD display description: 1.
-
Page 9: Equipment Symbols
Thermometer Applications Adult Pediatric Thermometer Thermometer Style Model Number Ear Forehead Ear Forehead Infrared Body Thermometer K8832US Equipment Symbols Restriction of Warning Hazardous Substances This symbol means type Batch No. BF APPLIED PART. Refer to operating Serial number instructions Manufacturer... -
Page 10: Product Performance
2- Product Performance Body mode (Adjusted mode) Operating mode Surface mode (Direct mode) °C / ℉ Measurement Unit Ambient temperature: 5.0°C ~ 40.0°C; Operating environment Relative humidity: ≤85% (no condensation) Atmospheric pressure: 70kPa～106kPa Power Supply DC 3.0 V (2 x AAA alkaline batteries) Product weight about 68g (excluding battery) Overall dimension... - Page 11 Compliance Item Compliant with Safety Standards: ANSI AAMI ES60601-1:2005/(R)2012 and A1:2012+A2:2021 IEC 60601-1-11:2015+AMD1:2020 IEC 60601-1-2:2014+AMD1:2020 Usability IEC 60601-1-6:2010+A1:2013+AMD2:2020 & IEC 62336-1：2015+AMD1:2020 Performance ISO 80601-2-56:2017+A1:2018 ASTM E 1965-98(Reapproved 2016) Calculated values of the indicators according to ASTM E1965-98 Forehead mode Forehead Scan mode Indicators Group I Group II...
-
Page 12: Installation And Use Instructions Or Illustrations
3 - Installation and Use Instructions or Illustrations 3.1 Install the battery Push the battery door downward and backward, open the internal battery cover according to the instructions of the shell, install two AAA alkaline (No.7) batteries, cover the battery cover, carefully check the positive and negative signs in the battery compartment during installation, and note that the positive and negative poles of the battery can not be installed reversely. -
Page 13: Start Measurement
5). Patients with fever, cold compress on the forehead or other cooling measures will make the measurement data low, so it should be avoided to measure in this case. 6). The ambient temperature around the person to be tested should be stable, and the test should not be carried out in places with large airflow such as fans and air outlets of air conditioners. - Page 14 3). Enter the state to be tested, aim at the forehead at a distance of 1-3cm, and the LCD "-" is displayed from bottom to top, as shown in Fig. 3 and Fig. 4. Fig. 3 Fig. 4 Note: Display if the scanning process exceeds 3cm.
-
Page 15: Unit Switching
3.4 Measurement mode switching Turn on the device and enter "body temperature" mode by default, and press the memory function key and sound for a long time at the same time. After pressing memory function key and sound key for more than 5 seconds, the mode of "body temperature"... -
Page 16: Replace The Battery
3.8 Memory value clearing In the power-on state, press the memory function key for a long time until the LCD displays "CLr". A "beep" indicates that all the stored data have been cleared, as shown in Fig. 11. Fig. 11 3.9 Replace the battery The thermometer uses two AAA (No. -
Page 17: Error Prompt Message
4 - Error Prompt Message: Display Display Possible causes and screen/problem meaning commissioning methods Body temperature Higher mode: the temperature measured of the measured object is higher than the temperature 43.0℃. Body temperature Lower mode: the temperature measured of the measured temperature object is lower than the 34.0℃... -
Page 18: Cleaning, Care And Storage
5-Cleaning, Care and Storage Cleaning: Purpose: This thermometer is for reuse to measure body temperature, you may clean the surface of thermometer since which can be contaminated during use with organic soil and microorganisms carried by human hands immediately after each use. Cleaning Agent: 70% isopropyl alcohol wipe. -
Page 19: Disposal
Storage: Always keep the thermometer a within the storage temperature and humidity range as specified. It is recommended to store the thermometer in a dry location free from dust. Always keep the thermometer within the storage temperature range (- 20°C to 55°C or –4°F to 131°F) and humidity range (≤... -
Page 20: Calibration
7 - Calibration The thermometer is initially calibrated at the time of manufacture. If this thermometer is used according to the use instructions, periodic re-adjustment is not required. If at any time you question the accuracy of temperature measurements, please contact us timely. 8 - Parts List 1 main unit 1 user manual... - Page 21 Guidance and manufacture’s declaration – electromagnetic emission The Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer of the user or the Infrared Body Thermometer should assure that it is used in such an environment. Emission test Compliance RF emissions CISPR 11...
- Page 22 Guidance and Manufacturer’s Declaration - IMMUNITY to proximity fields from RF wireless communications equipment IEC 60601 test level Compli- Immunity ance Test Maximum test Immunity level frequency Modulation power level **Pulse 27 V/m Modulation: 1.8W 27 V/m 18Hz *FM +5Hz 28 V/m 450 MHz deviation:...
-
Page 23: Body Temperature
10 - Body temperature ● Body temperature varies from person to person and fluctuates during the course of the day. For this reason, it is suggested to know one's normal, healthy forehead temperature to correctly determine the temperature. ● Body temperature runs approximately from 35.5°C to 37.8°C(95.9°F-100°F). - Page 24 Lifetime 365 Days Unlimited Money-Back Warranty Guarantee Lifetime No Reason Customer Replacement Support DISTRIBUTED BY: RONGHE TECHNOLOGY HANGZHOU CO., LTD CN, 310000, Room 1906, Dongguan Building, No. 618, Jiangnan Avenue, Changhe Street, Binjiang District, Hangzhou, Zhejiang Room 801, 802, 803, 804, 901, 2# Building Scientific Research Center, Songhu Intelligent Valley, No.6 Minfu Road, Liaobu Town, Dongguan City, Guangdong Province, P.R.China...
