Summary of Contents for Simple Deluxe HIFANXTOWER32RC

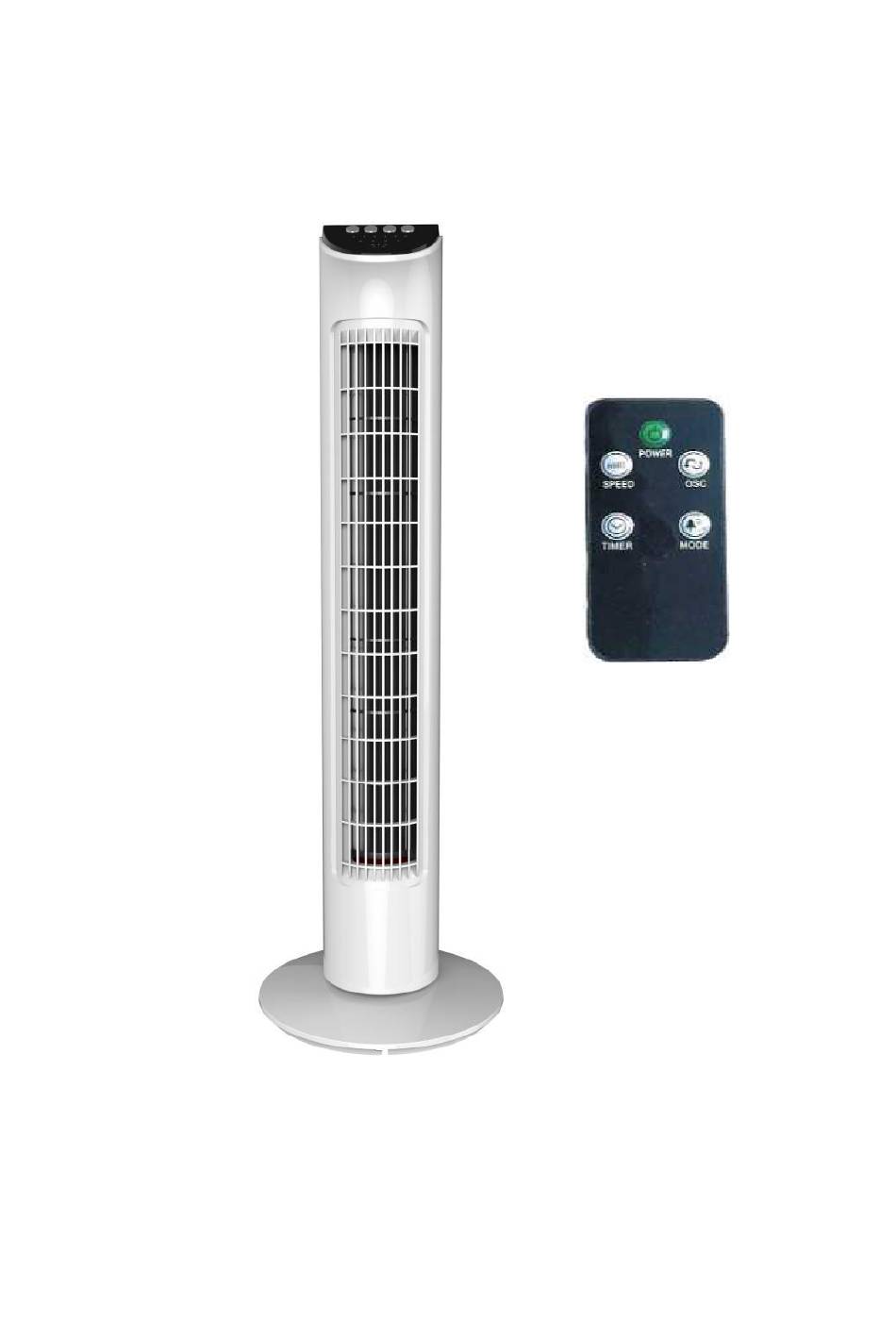

- Page 1 TOWER FAN INSTRUCTION/OPERATING MANUAL...
- Page 3 ASSEMBLY １．Ｂｅｆｏｒｅ ｍｏｕｎｔｉｎｇ ｔｈｅ ａｐｐｌｉａｎｃｅ， ｍａｋｅ ｓｕｒｅ ｉｔ ｉｓ ｕｎｐｌｕｇｇｅｄ； ２．Ａｓｓｅｍｂｌｅ ｔｈｅ ｆｒｏｎｔ ｂａｓｅ（３） ａｎｄ ｒｅａｒ ｂａｓｅ（２） ｉｎｔｏ ｏｎｅ； ３．Ｉｎｓｔａｌｌ ｔｈｅ ｂａｓｅ ｔｏ ｔｈｅ ｃｏｒｒｅｓｐｏｎｄｉｎｇ ｐｏｓｉｔｉｏｎ ｏｆ ｔｈｅ ｆａｎ ｂｏｄｙ（１）， ａｎｄ ｔｈｅ ｈｏｌｅ ｃｏｒｒｅｓｐｏｎｄｓ ｔｏ ｔｈｅ ｐｉｌｌａｒ； ４．Ｐｕｔ ｔｈｅ ｐｏｗｅｒ ｃｏｒｄ（４） ｔｈｒｏｕｇｈ ｔｈｅ ｃｅｎｔｅｒ ｏｆ ｔｈｅ ｎｕｔ（５） ａｎｄ ｔｉｇｈｔｅｎ ｔｈｅ ｎｕｔ（５）； ５．Ｃｌｉｐ ｔｈｅ ｐｏｗｅｒ ｃｏｒｄ ｉｎｔｏ ｔｈｅ ｍｉｄｄｌｅ ｓｌｏｔ ｏｆ ｔｈｅ ｒｅａｒ ｂａｓｅ； ASSEMBLY CONPONENTS Fig 1 1. Body 2. Back base Fig 1 3. Front base 4. Power cord 5. Nut USINGTHE REMOTEICONTROL ２０Ｆｔ 1.The sensor of the remote control must be pointed at the fan receiver to operate properly;...
- Page 4 Use remote control(See Fig3) and button(See Fig4) control please see the following table Main control panel & Indicator Features Remote Control Lights switches POWER Standby mode. The fan is ready to use but has not started operating yet. ON/SPEED Press Once - Low Wind speed setting Press twice - Medium Wind speed setting...
- Page 5 Fig.5 Fig.6 Fig.7 Tips:Do not overexert when replacing the fuse or damage may occur.If it’s hard to close the access cover,make sure the fuse is fully inserted.
