Summary of Contents for SR SUN RISE SRSH-BNSZ223

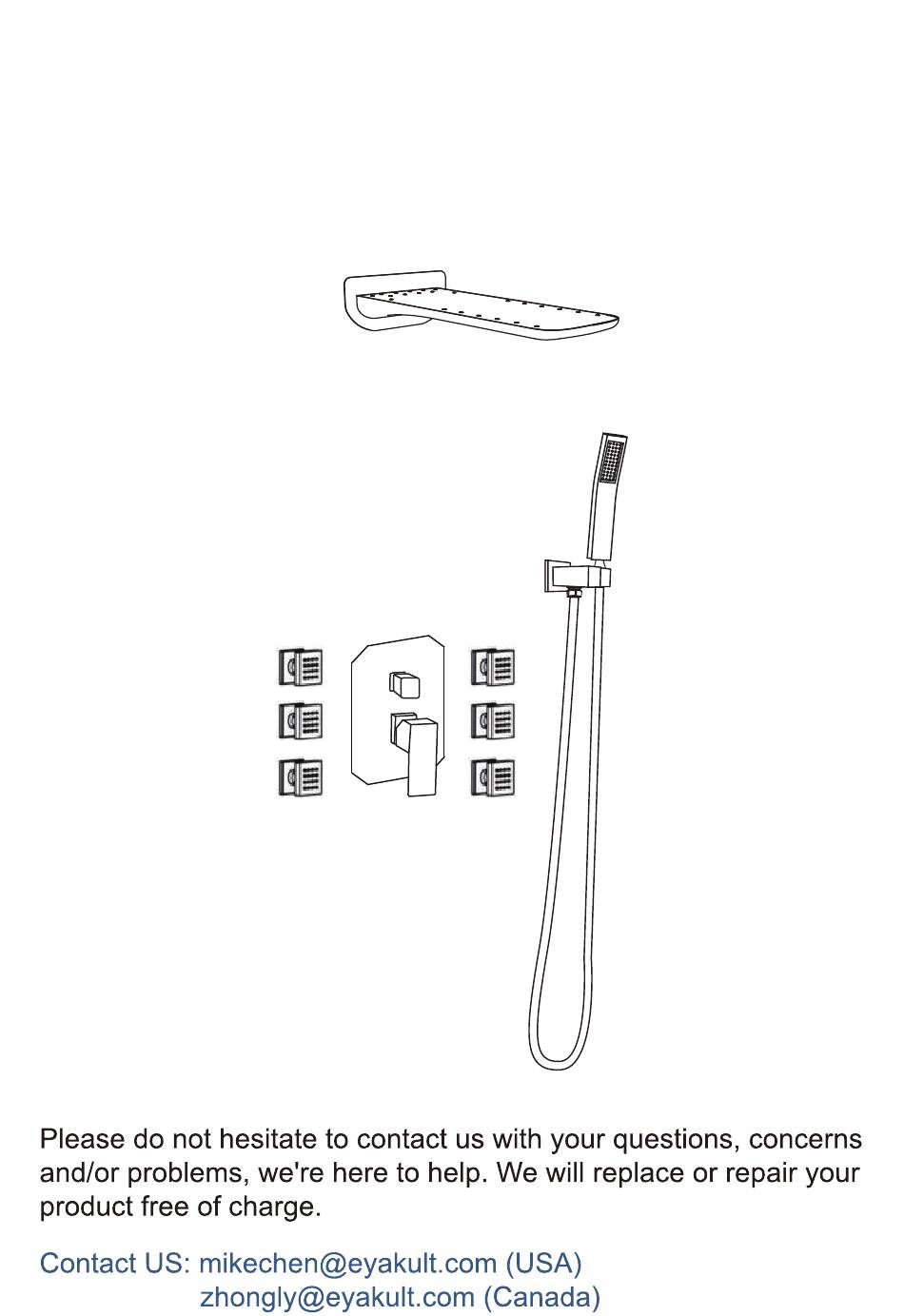

- Page 1 Installation Manual Waterfall Shower System...
- Page 3 Catalog About SR SUN RISE SANITARY cUPC Certification Installation Instruction Warranty Clean and Maintain Product...
- Page 8 1.Install shower valve...
- Page 9 2.Install Embedded Body of Rain Shower Head Step 1：Measure Embedded Body installation dimensions 2 2/1 Inch Distance from back of embedded body to finish surface to 2 1/2 inches. Step 2：Determine the position of embedded body...
- Page 10 Step 3：Drill, hammer in anchors,fasten valve body to wall(This step is for masonry application.) Step 4：Check for level for Embedded Body...
- Page 11 3. Test for Leaks Before Installing Wall Board Note: Both cold and hot water pipes must be opened.
- Page 12 4：Tile...
- Page 13 5. Install Body Jets...
- Page 14 6. Install Shower Bracket...
- Page 15 7：Install Handheld SHower Head & Shower Hose...
- Page 16 8：Install Waterfall Rain Shower Head Screw 3 brass adapters into embedded body...
- Page 17 9：Insert shower head into the embedded body. Then tighten the fixing screws.
- Page 18 Installation Completed. Hope you can use it for comfortable and pleasant shower experience.
