Edmunds 2941 Assembly Instructions

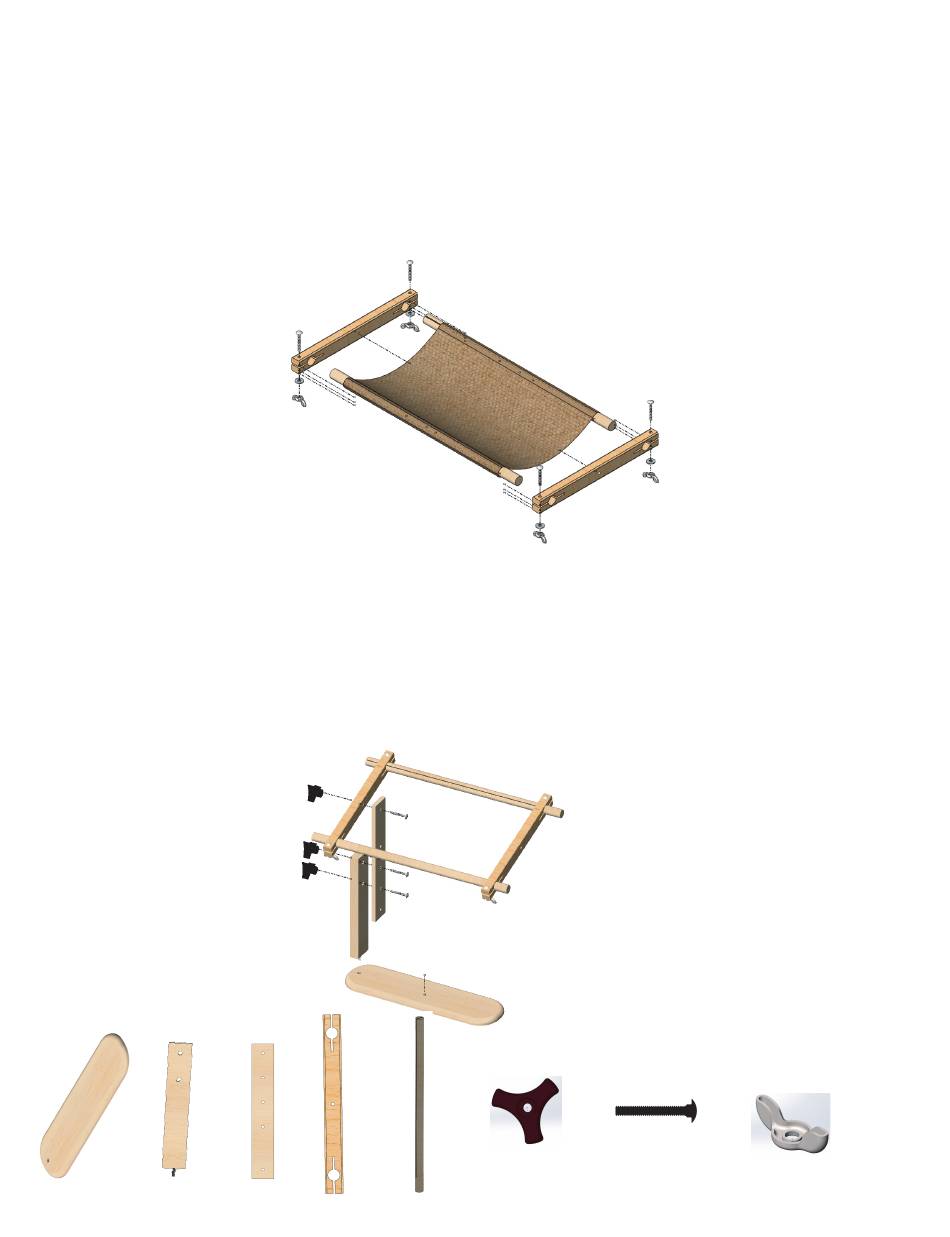

Scroll Frame Assmebly
1) Insert 4 Carriage Bolts into small holes in the end of the spreader and loosely secure with washers and wing nuts.
2) Slip your fabric into one of the slotted dowels. Place one end of the dowel into the large hole of one of the
Spreaders. Move the spreader up to the edge of the fabric. Repeat on the opposite side then repeat with the
other dowel at the other end of the Spreader Rail. Roll the bottom edge of the fabric until it is slightly taut.
Tighten the Wing Nuts on the bottom of the Spreaders. Turn the top dowel until the fabric is taut.
Tighten the Wing Nuts.
Lap Stand Assembly
1) Screw the bolt in the bottom of the Upright into the top of the Seat Board. (The top of
the Seat Board has rounded edges.)
2) Attach the Scroll Frame Assembly to the Extention using a Carriage Bolt and a Three
Prong Knog.
3) Attach the Extension to the Upright using a Carraige Bolt and a Three Prong Knob.
Seat Board Upright
1 ea. 1 ea.
2941 Assembly Instructions
Extension
Spreader Dowel
1 ea.
2 ea. 2 ea.
Carriage Bolt
7 ea.
Three Prong Knob
3 ea.
Wing Nut
4 ea.
